- Dimensions: 1/8" dia. x 2" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.106 oz. (3.02 g)
- Pull Force, Case 1: 0.92 lbs
- Pull Force, Case 2: 0.92 lbs
- Surface Field: 6597 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

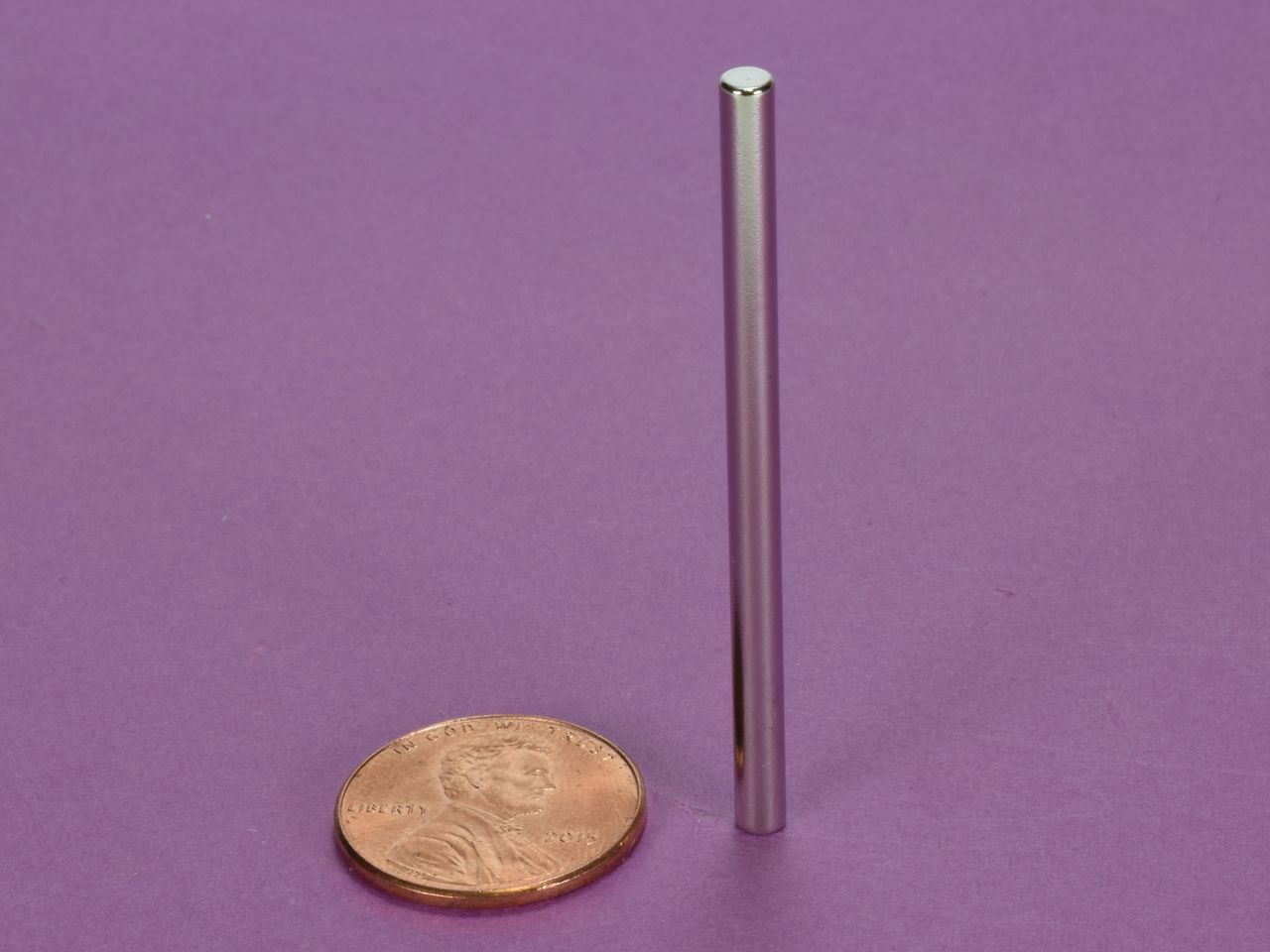

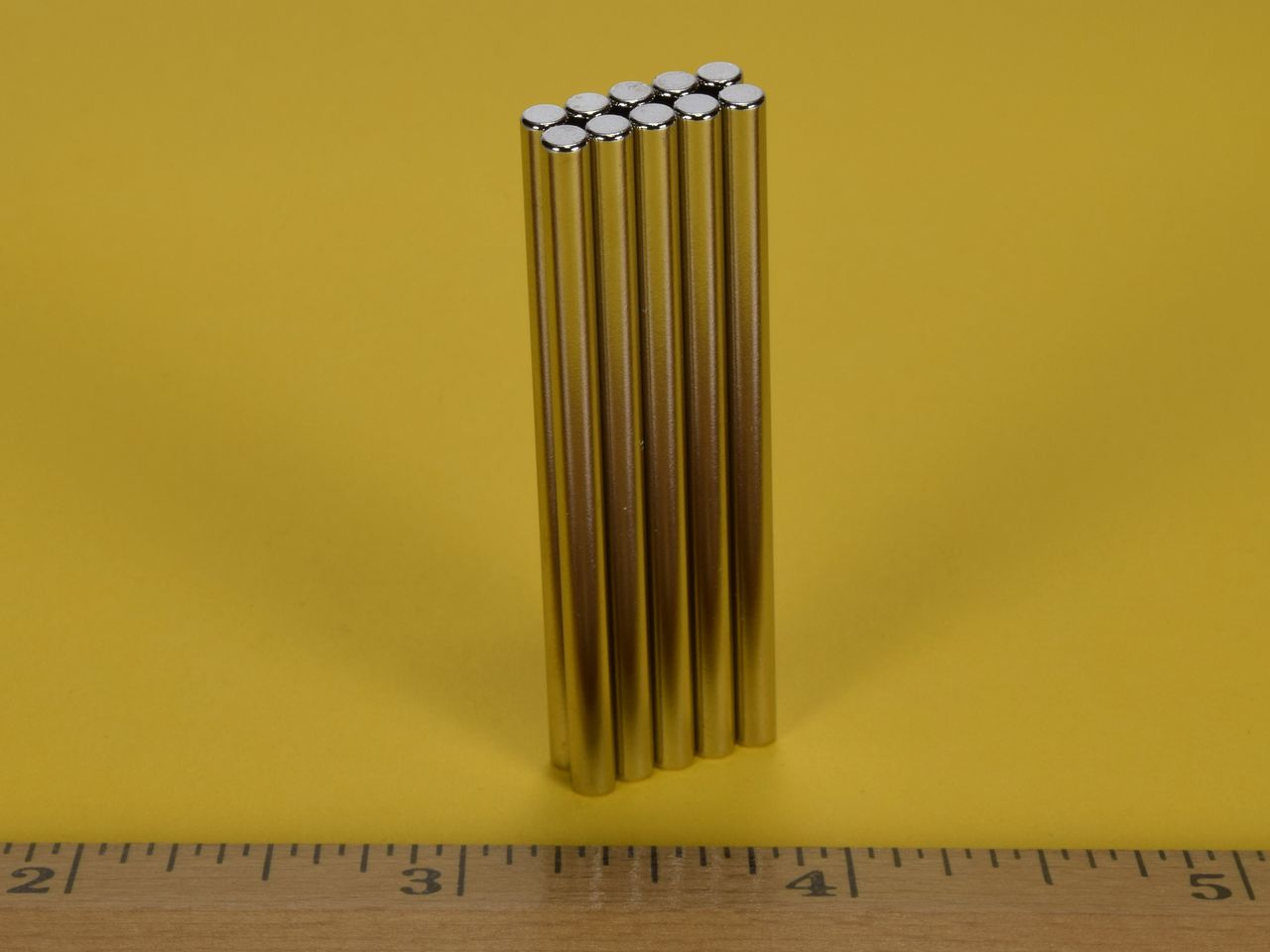

These long, thin rods can be quite useful. They are very long with a small diameter. Easy to handle.
 |
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
 |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
 |
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
 |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
 |
