> D38-N52 - Neodymium Cylinder Magnet

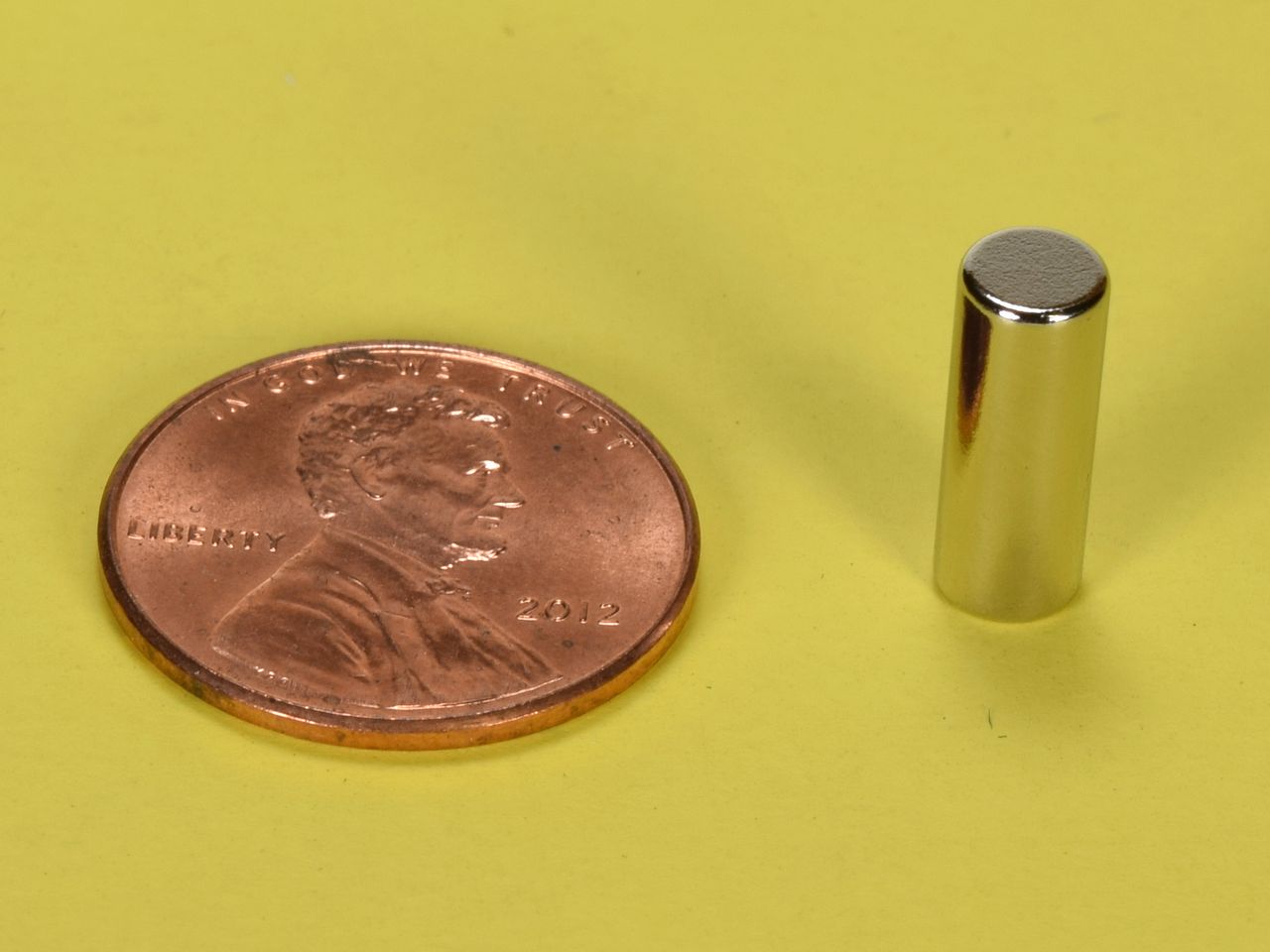

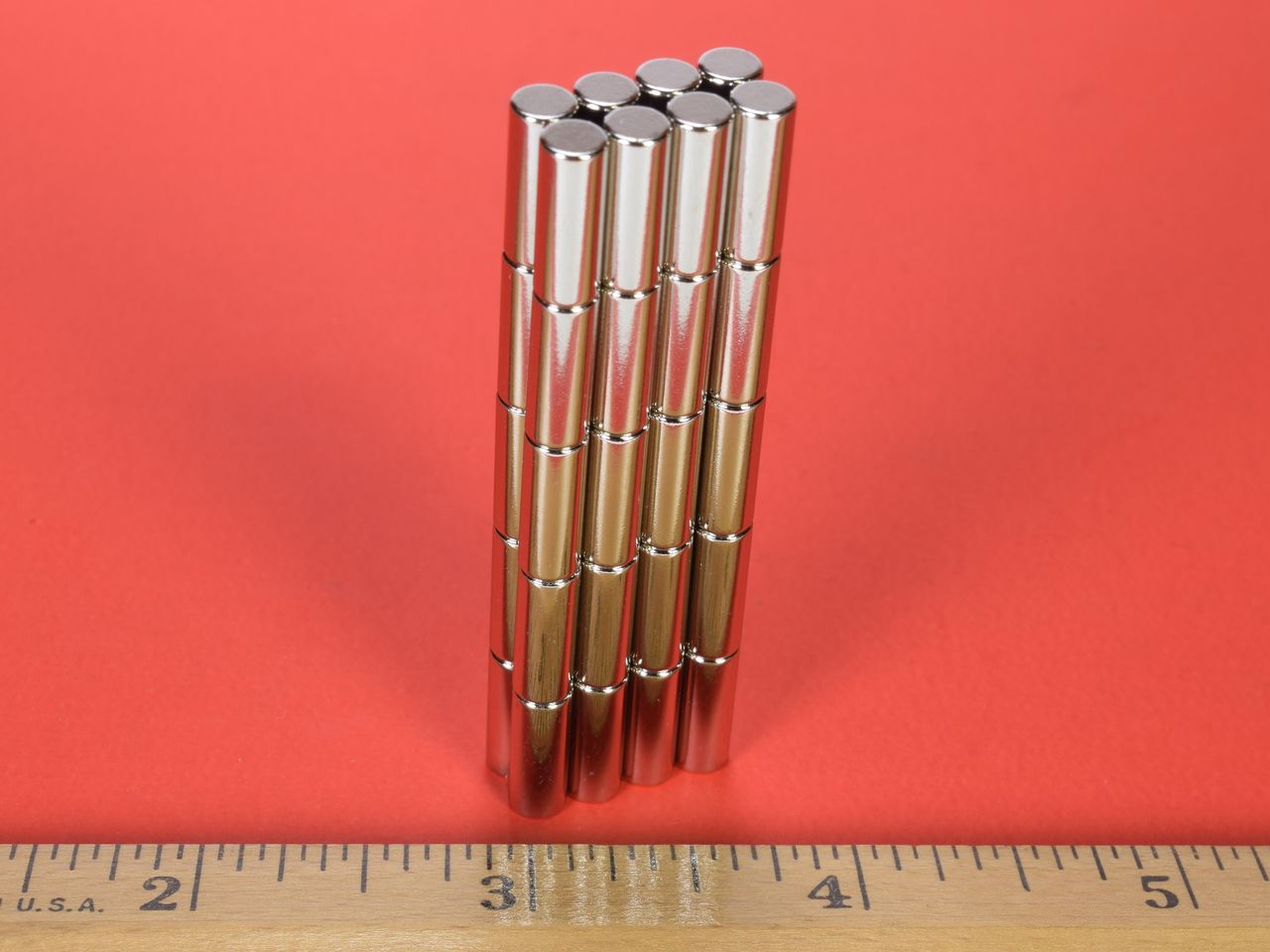

D38-N52 - Neodymium Cylinder Magnet

$0.86

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.86	1-24
$0.84	25-49	2%
$0.82	50-99	5%
$0.80	100-249	7%
$0.78	250-499	9%
$0.76	500-999	12%
$0.74	1000-2499	14%
$0.72	2500-4999	16%
$0.70	5000-9999	19%
$0.68	10000-24999	21%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/16" dia. x 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0599 oz. (1.70 g)
Pull Force, Case 1: 2.60 lbs
Pull Force, Case 2: 2.67 lbs
Surface Field: 7273 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

The D38-N52 is a great size for fridge magnets. They are small and easy to handle, but strong enough to hold even the largest of art projects to the fridge. They are also an excellent choice for use on magnetic bulletin boards.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
