D3C - Neodymium Cylinder Magnet

$0.97

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.97	1-24
$0.95	25-49	2%
$0.93	50-99	4%
$0.90	100-249	7%
$0.88	250-499	9%
$0.86	500-999	11%
$0.84	1000-2499	13%
$0.81	2500-4999	16%
$0.79	5000-9999	19%
$0.77	10000-24999	21%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/16" dia. x 3/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0898 oz. (2.55 g)
Pull Force, Case 1: 2.20 lbs
Pull Force, Case 2: 2.19 lbs
Surface Field: 6549 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

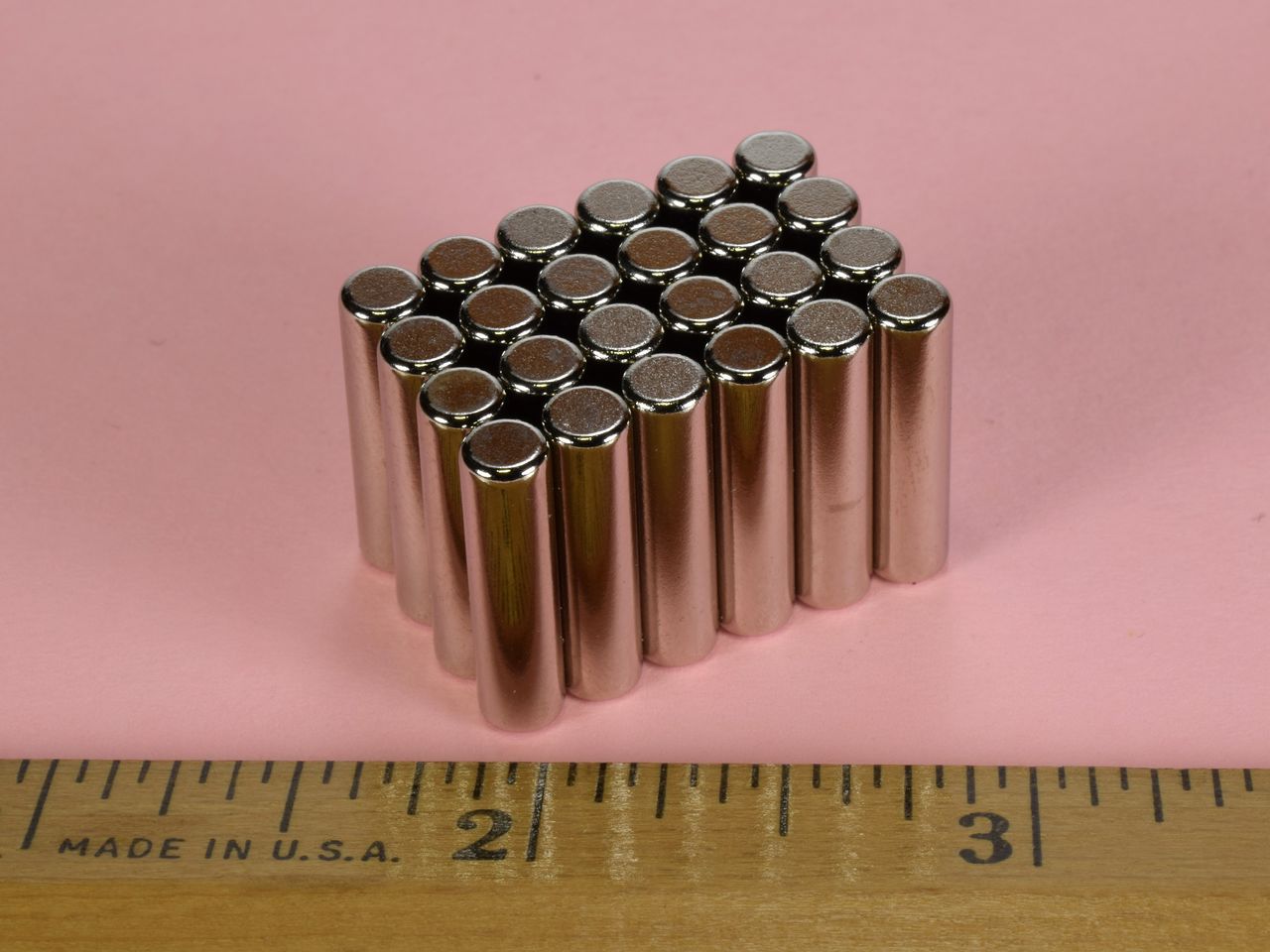

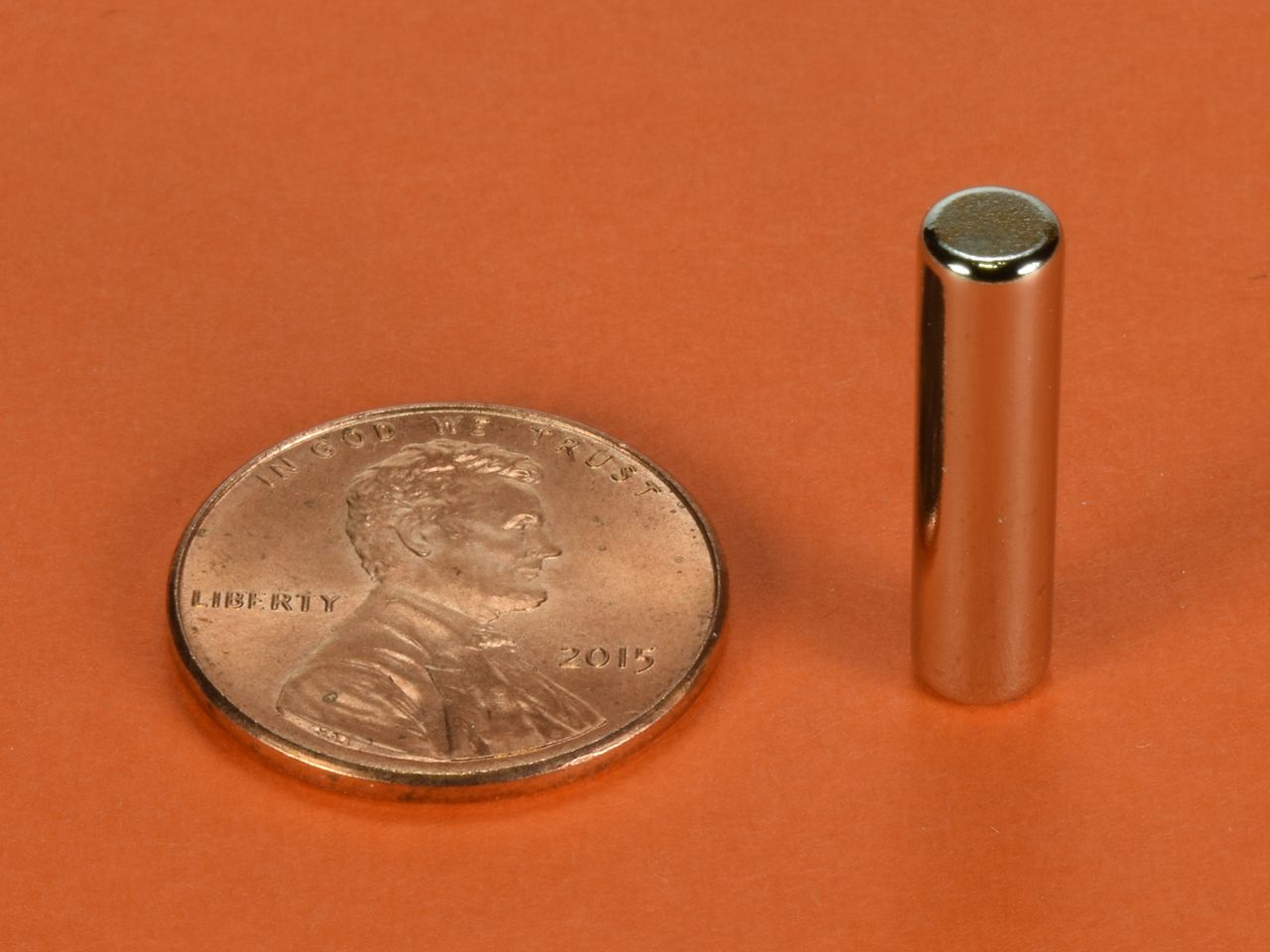

Our D3C cylinders are handy for a wide range of magnetic applications. A good size for science projects, they pose very little danger of pinching. The long, cylindrical shape makes them easy to handle.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
