D3H2 - Neodymium Cylinder Magnet

D3H2

$0.34

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.34	1-49
$0.33	50-99	3%
$0.32	100-499	6%
$0.31	500-999	9%
$0.30	1000-2499	12%
$0.29	2500-9999	15%
$0.28	10000-24999	18%
$0.27	25000-49999	21%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 3/16" dia. x 2/10" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.024 oz. (0.679 g)
Pull Force, Case 1: 1.87 lbs
Pull Force, Case 2: 2.06 lbs
Surface Field: 5976 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

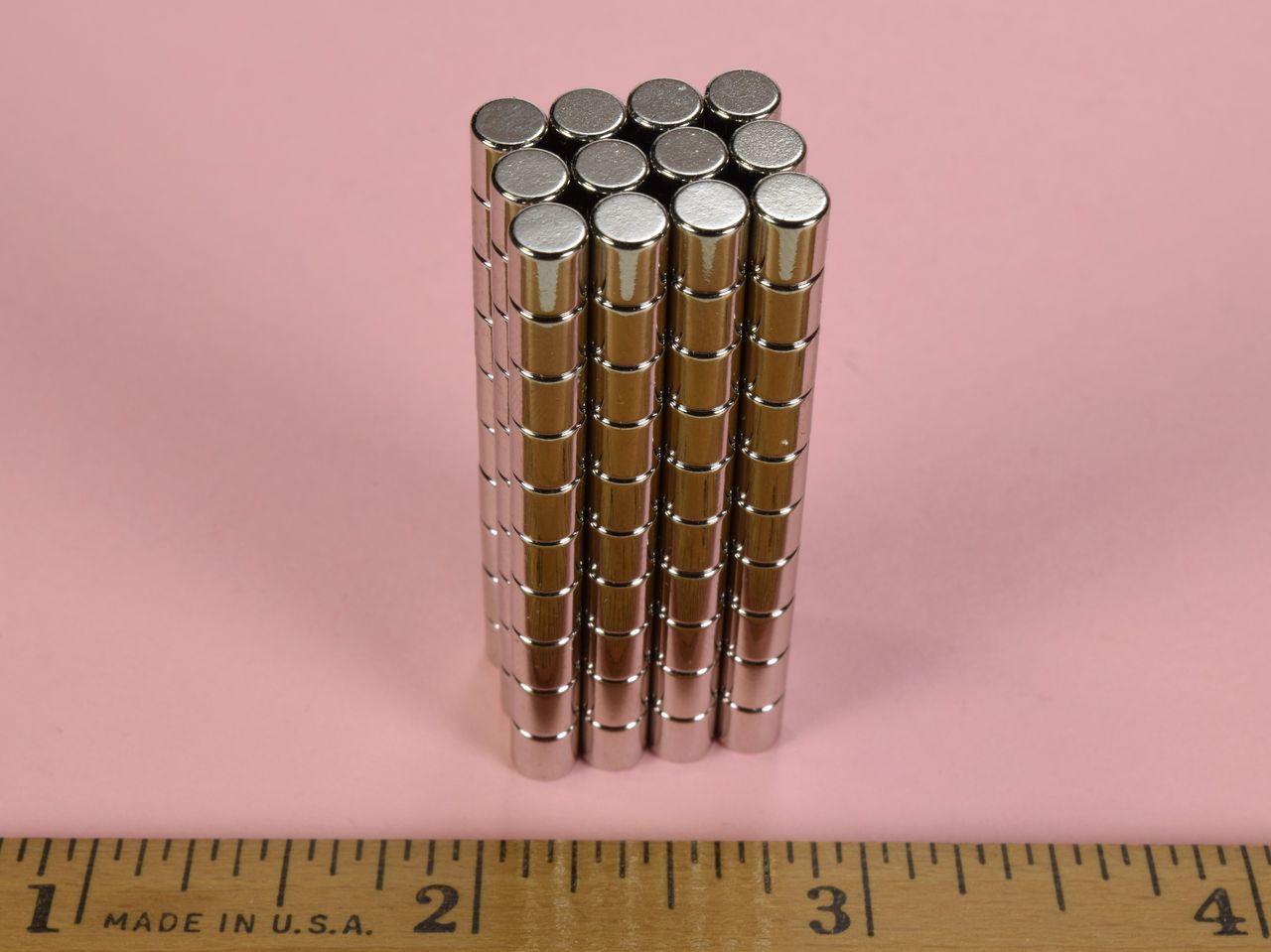

By popular demand we offer a 3/16" diameter disc in the hard-to-find 2/10" thickness. This is a true 0.200" +/-0.004".

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
