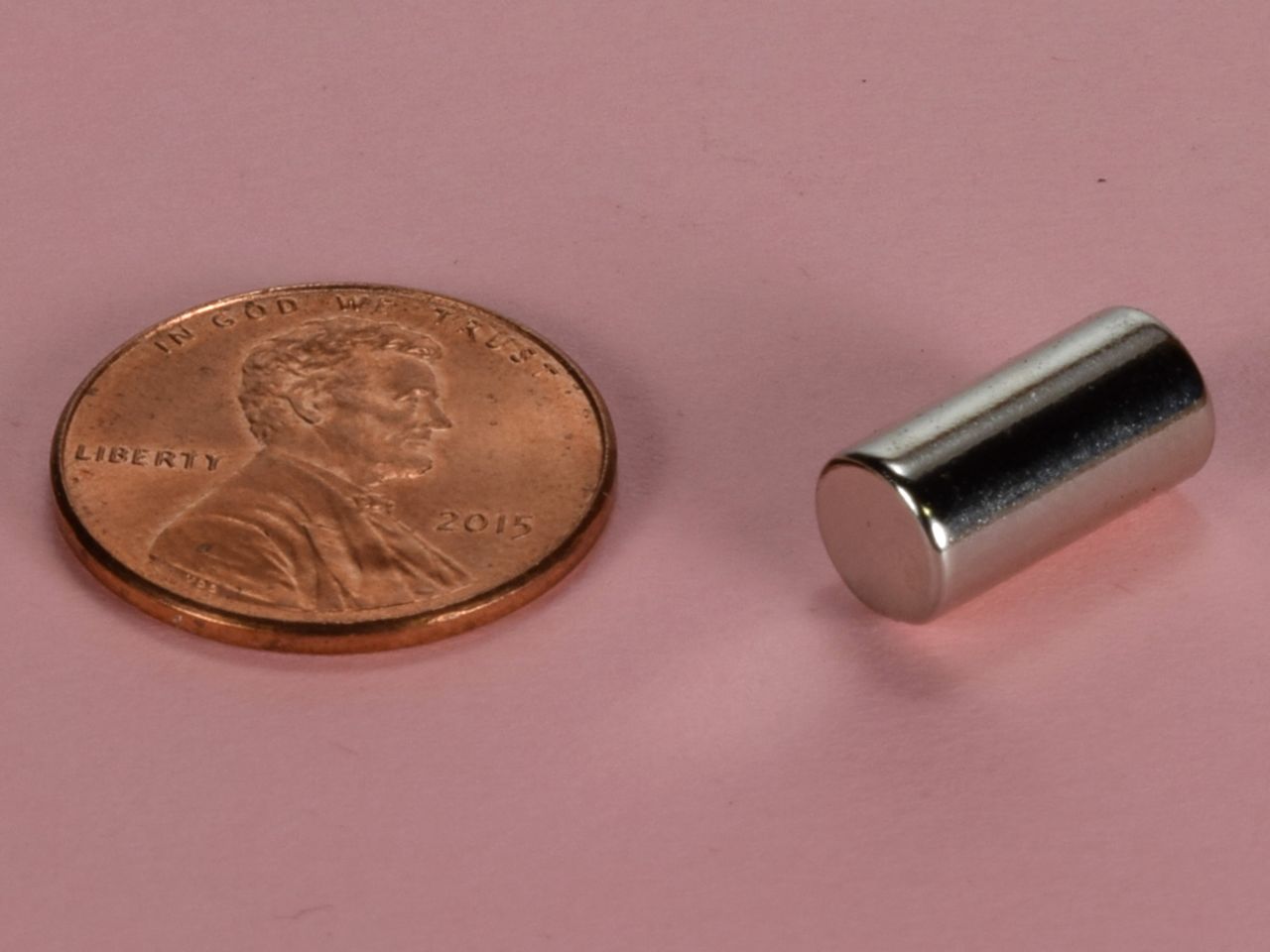

D48DIA - Neodymium Diametric Cylinder Magnet

• Dimensions: 1/4" dia. x 1/2" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Diametrical
• Weight: 0.106 oz. (3.02 g)
• Pull Force, Case 1: 5.26 lbs
• Pull Force, Case 2: 7.20 lbs
• Surface Field: 6898 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These diametrically magnetized cylinders are quite unique. They are magnetized perpendicular to their length, so the poles are located on the sides of the cylinders. This makes them attract each other strongly side-by-side. They can be formed into shapes and patterns that axially magnetized magnets cannot, as seen in the picture on the lower left. These cylinders provide a truly unique magnetic experience.

This size is also available in grade N52 as part number D48-N52 and axially magnetized as part number D48.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
