> D4X0 - Neodymium Cylinder Magnet

D4X0 - Neodymium Cylinder Magnet

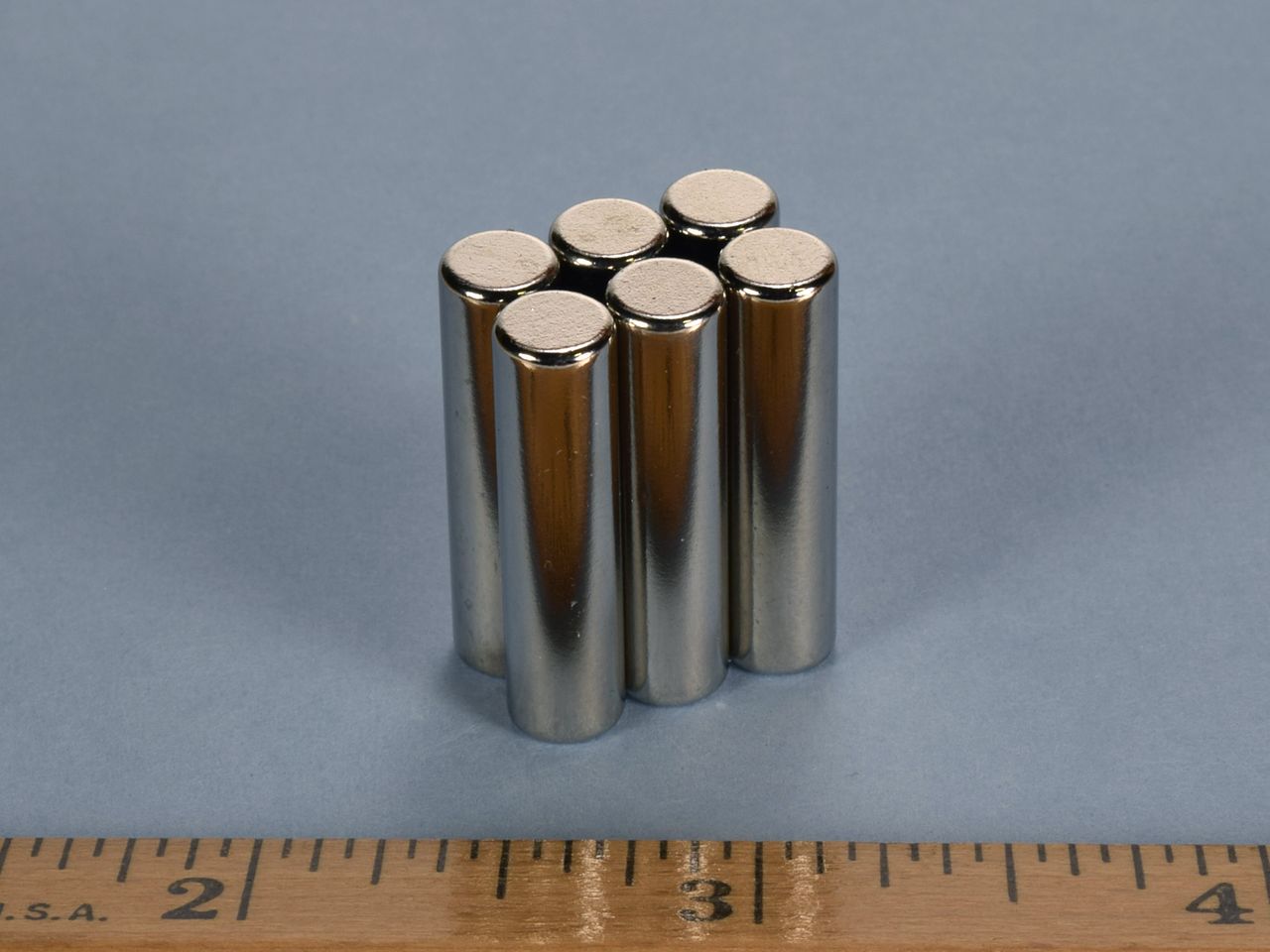

d4x0-neodymium-cylinder-magnet--thumbnail-2

$1.89

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.89	1-9
$1.85	10-24	2%
$1.81	25-49	4%
$1.76	50-99	7%
$1.72	100-249	9%
$1.68	250-499	11%
$1.64	500-999	13%
$1.59	1000-2499	16%
$1.55	2500-4999	18%
$1.51	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

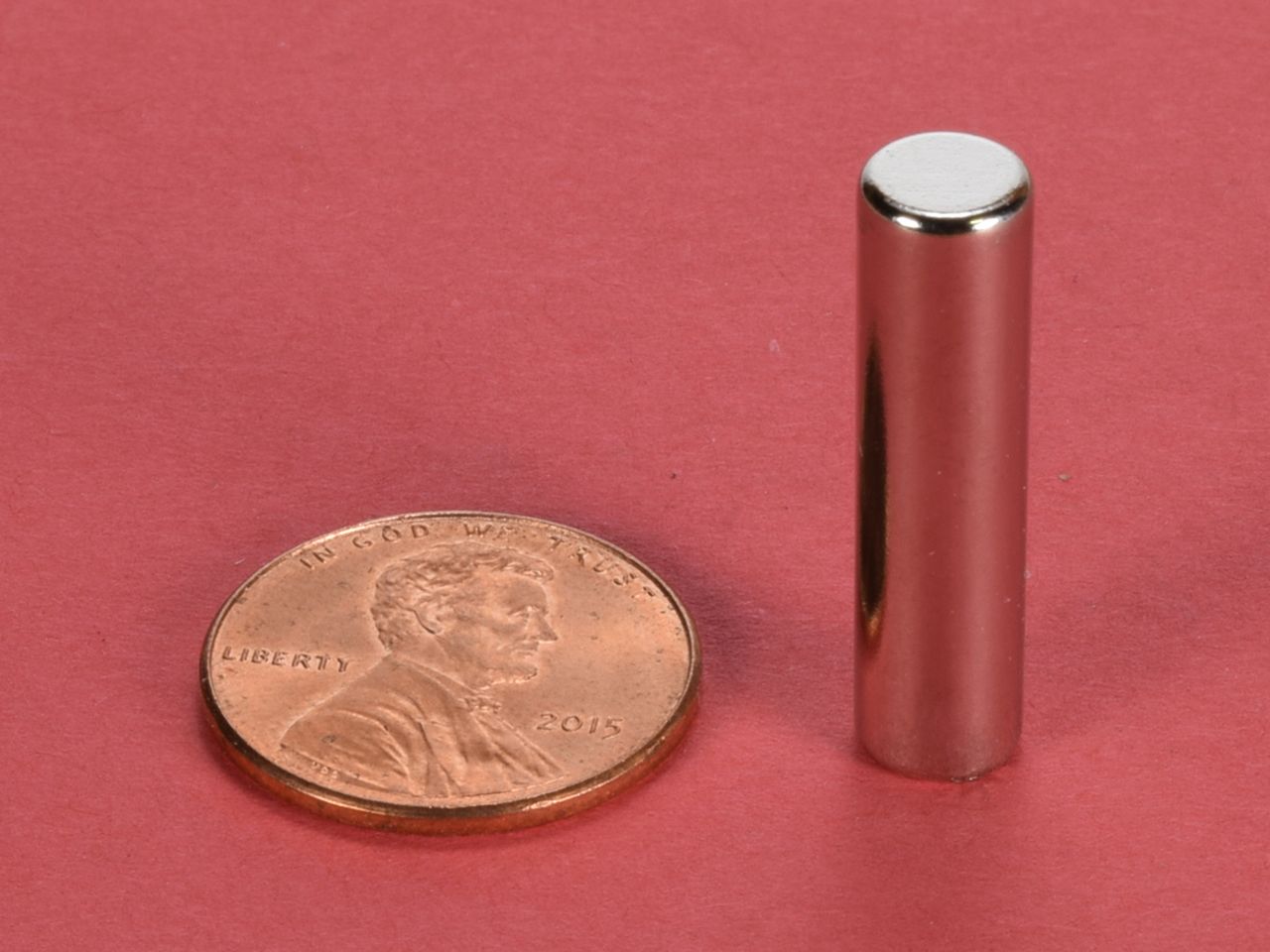

Dimensions: 1/4" dia. x 1" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.213 oz. (6.03 g)
Pull Force, Case 1: 4.13 lbs
Pull Force, Case 2: 4.13 lbs
Surface Field: 6549 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

This cylinder magnet is a great combination of good magnetic strength, with a tall height that makes them easy to handle. They are a nice size to grasp with ease. Two of them pinching a piece of string between them make a great homemade compass. They are strong, yet easy to handle.

This size is also available diametrically magnetized in Grade N52 as part number D4X0DIA-N52 and in Grade N42 with a small dimple on the north end as part number D4X0-ND.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader
