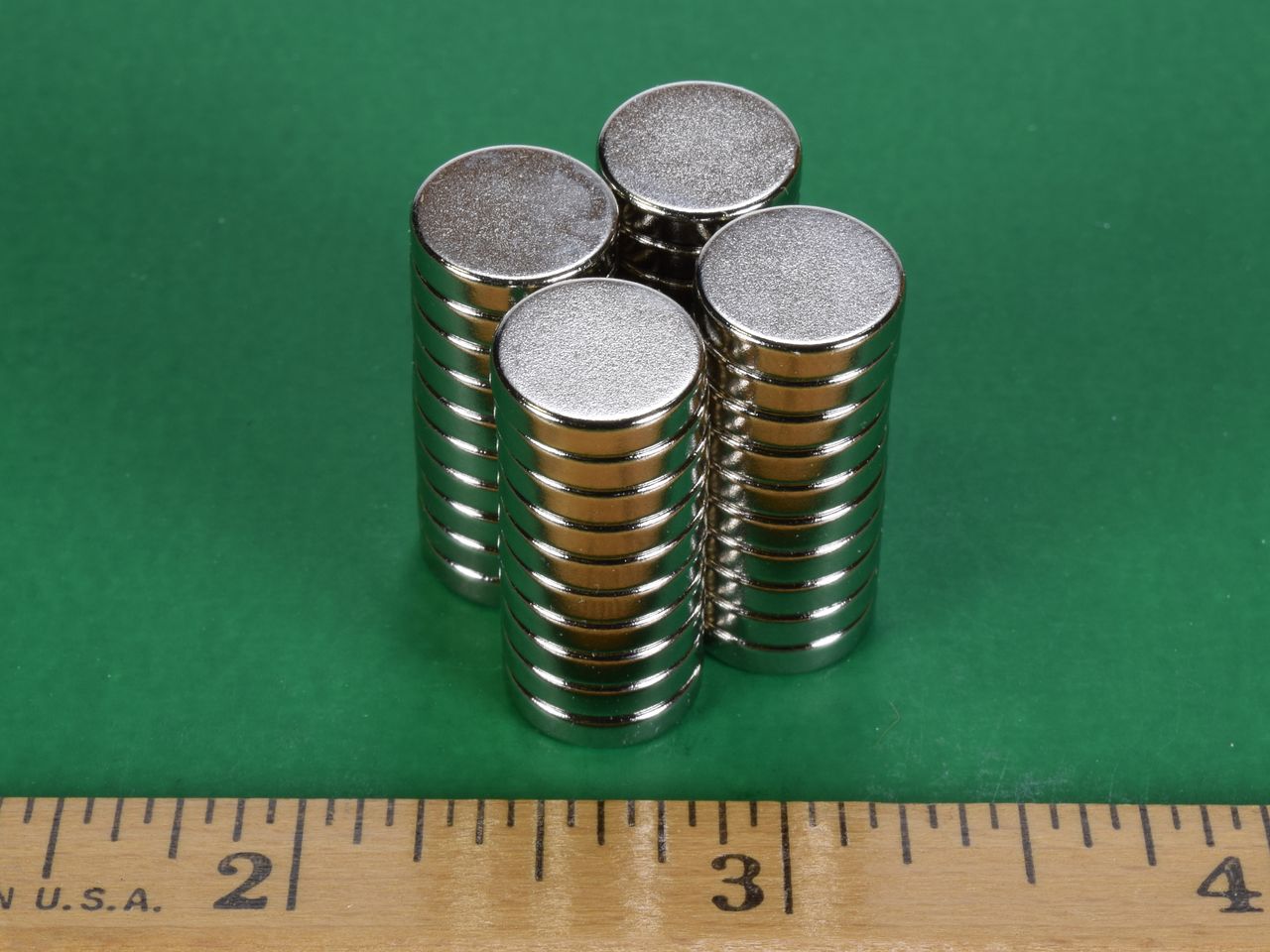

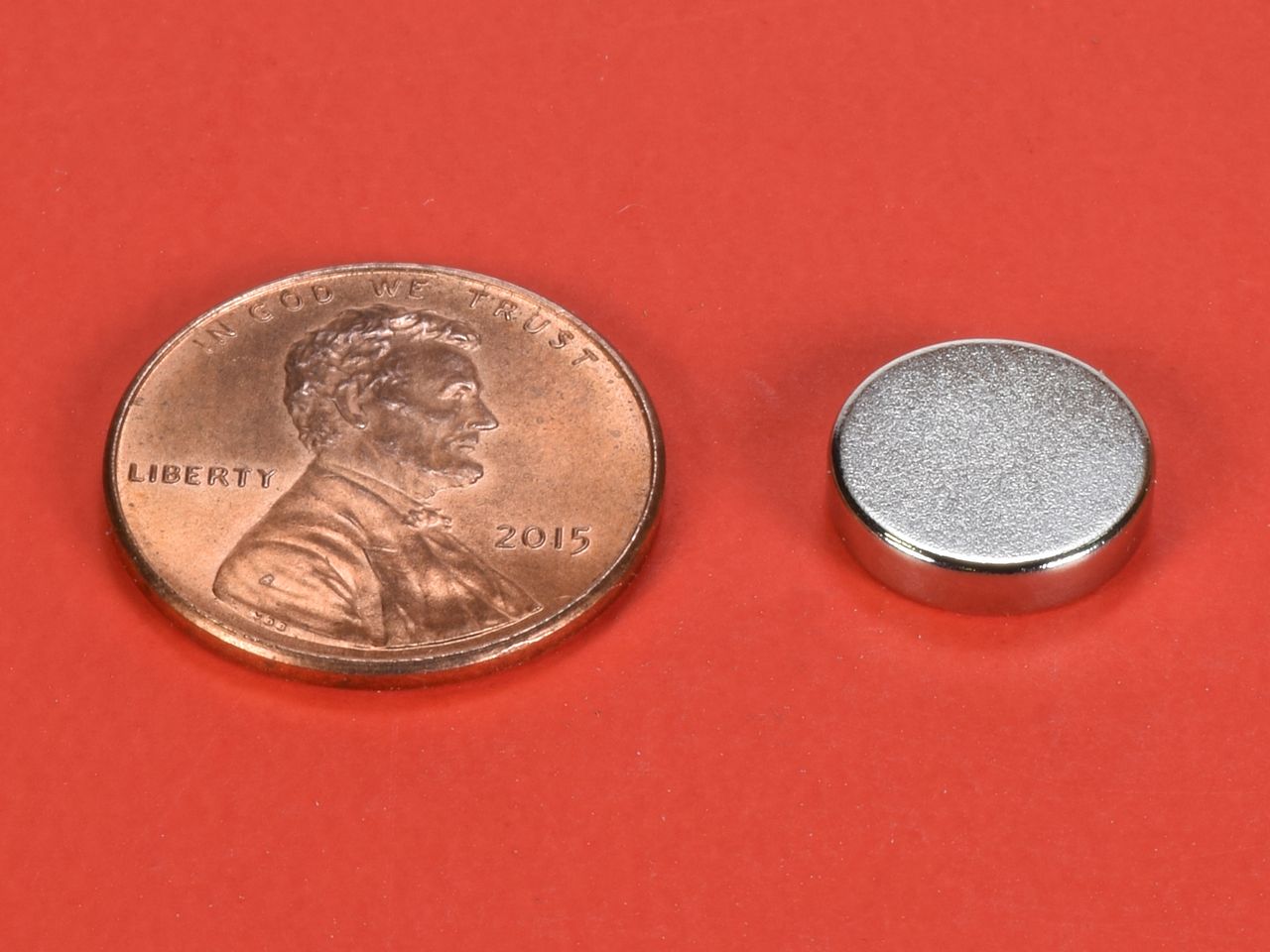

D7H1 - Neodymium Disc Magnet

• Dimensions: 7/16" dia. x 1/10" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0652 oz. (1.85 g)
• Pull Force, Case 1: 3.87 lbs
• Pull Force, Case 2: 12.17 lbs
• Surface Field: 2741 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The D7H1 is another one of those hard-to-find sizes that you"ll only find at K&J Magnetics.  A true 0.100" +/-0.004" thickness, this small magnet is very powerful for it"s size.
