D801 - Neodymium Disc Magnet

$0.45

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.45	1-49
$0.44	50-99	2%
$0.43	100-249	4%
$0.42	250-499	7%
$0.41	500-999	9%
$0.40	1000-2499	11%
$0.39	2500-4999	13%
$0.38	5000-9999	16%
$0.37	10000-24999	18%
$0.36	25000-49999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1/2" dia. x 1/32" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0266 oz. (0.754 g)
Pull Force, Case 1: 1.15 lbs
Pull Force, Case 2: 13.00 lbs
Surface Field: 819 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

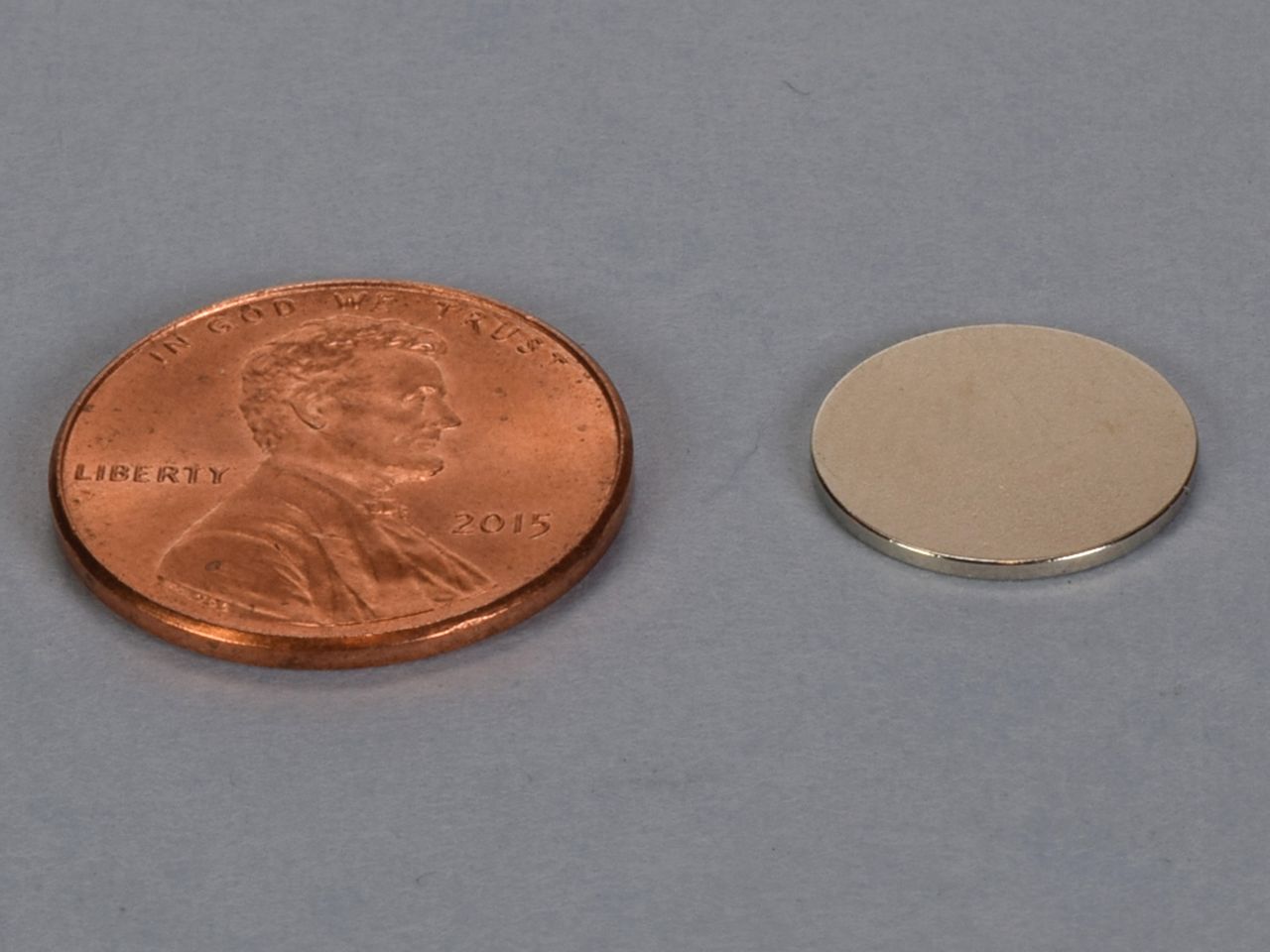

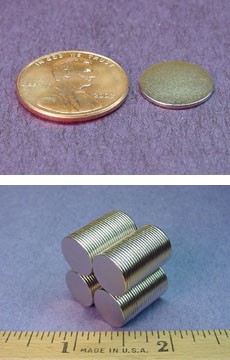

The D801 is an ultra-thin, 1/2" diameter neodymium disc magnet. Useful for projects where you need a very low profile magnet. Great for magic tricks and illusions. These discs are unbelievably powerful for their size.

This size is also available in grade N52 as part number D801-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
