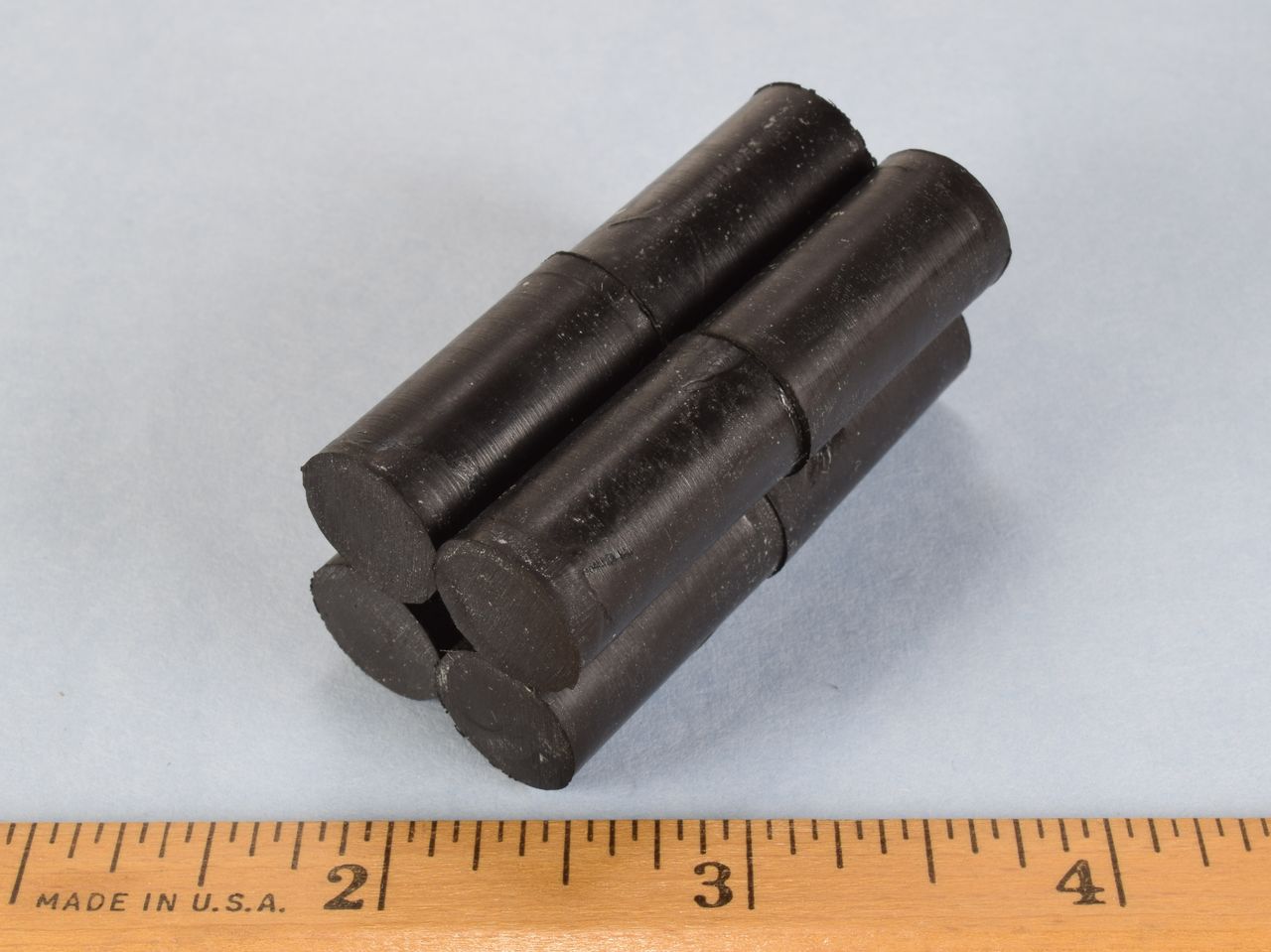

D8X0BR - Neodymium Rubber Coated Cylinder Magnet

• Dimensions: 1/2" dia. x 1" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Black Rubber Coated
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.662 oz. (18.8 g)
• Pull Force, Case 1: 7.87 lbs
• Pull Force, Case 2: 9.12 lbs
• Surface Field: 5763 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

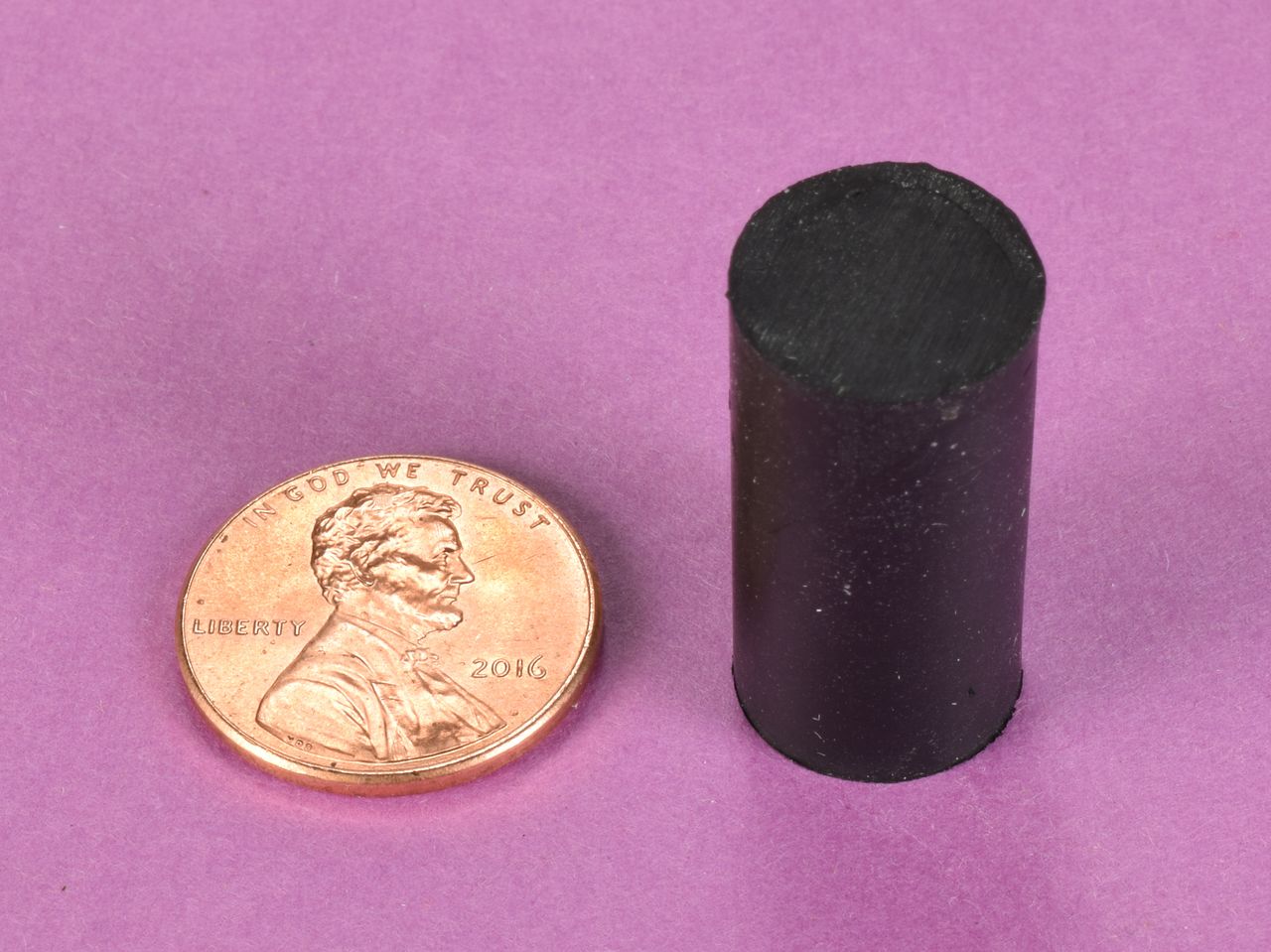

These is our popular 1/2" diameter x 1" thick neodymium cylinder magnet with a protective rubber coating.  The rubber coating is very much like tire rubber, which protects the magnet from impact damage and corrosion.  The rubber coating is very water resistant, but not recommended for underwater use, as the rubber seal is not guaranteed waterproof.  The rubber also helps to limit slipping on smooth surfaces.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.
