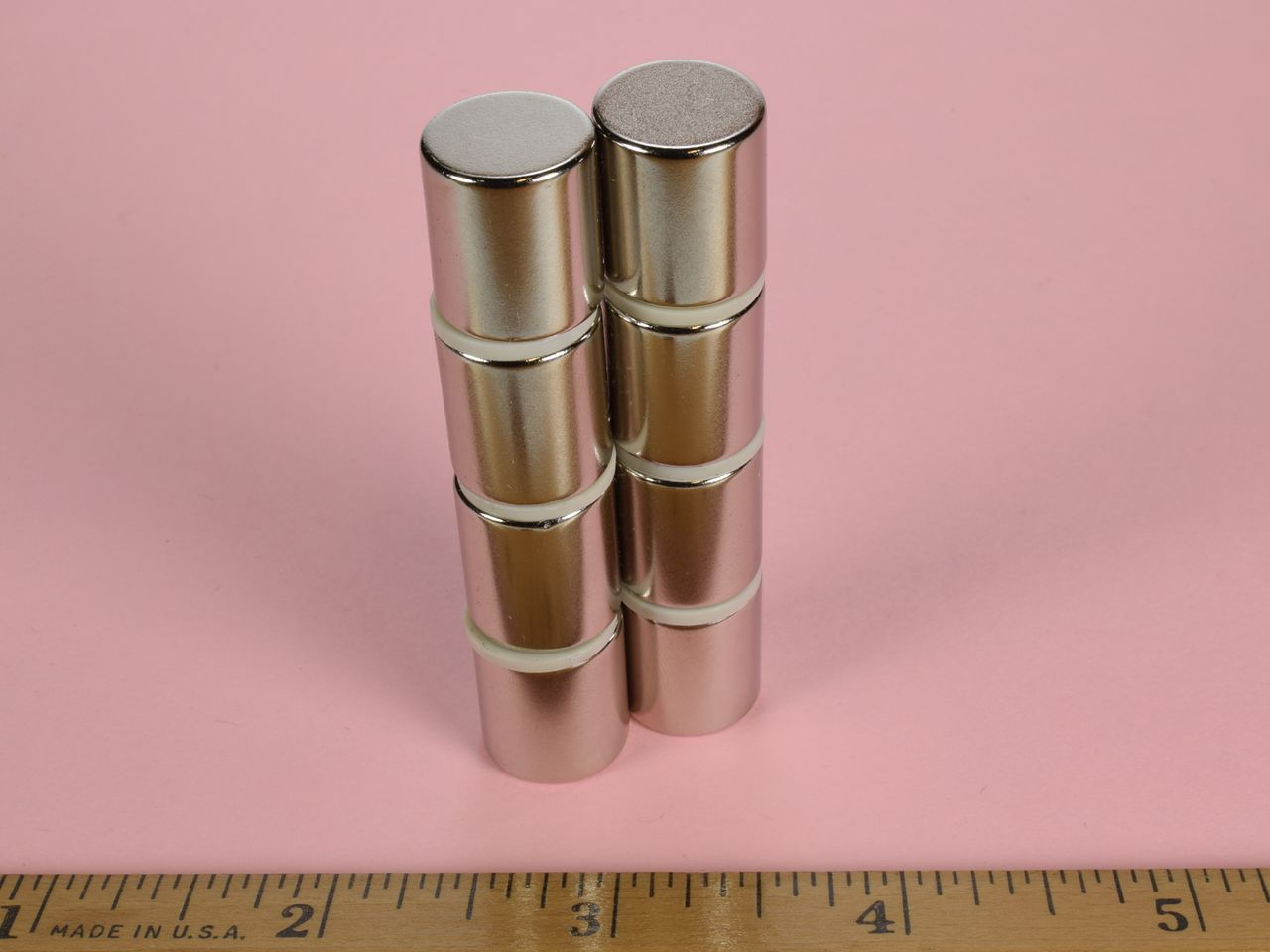

- Dimensions: 9/16" dia. x 5/8" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.673 oz. (19.09 g)
- Pull Force, Case 1: 19.45 lbs
- Pull Force, Case 2: 21.55 lbs
- Surface Field: 6019 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
