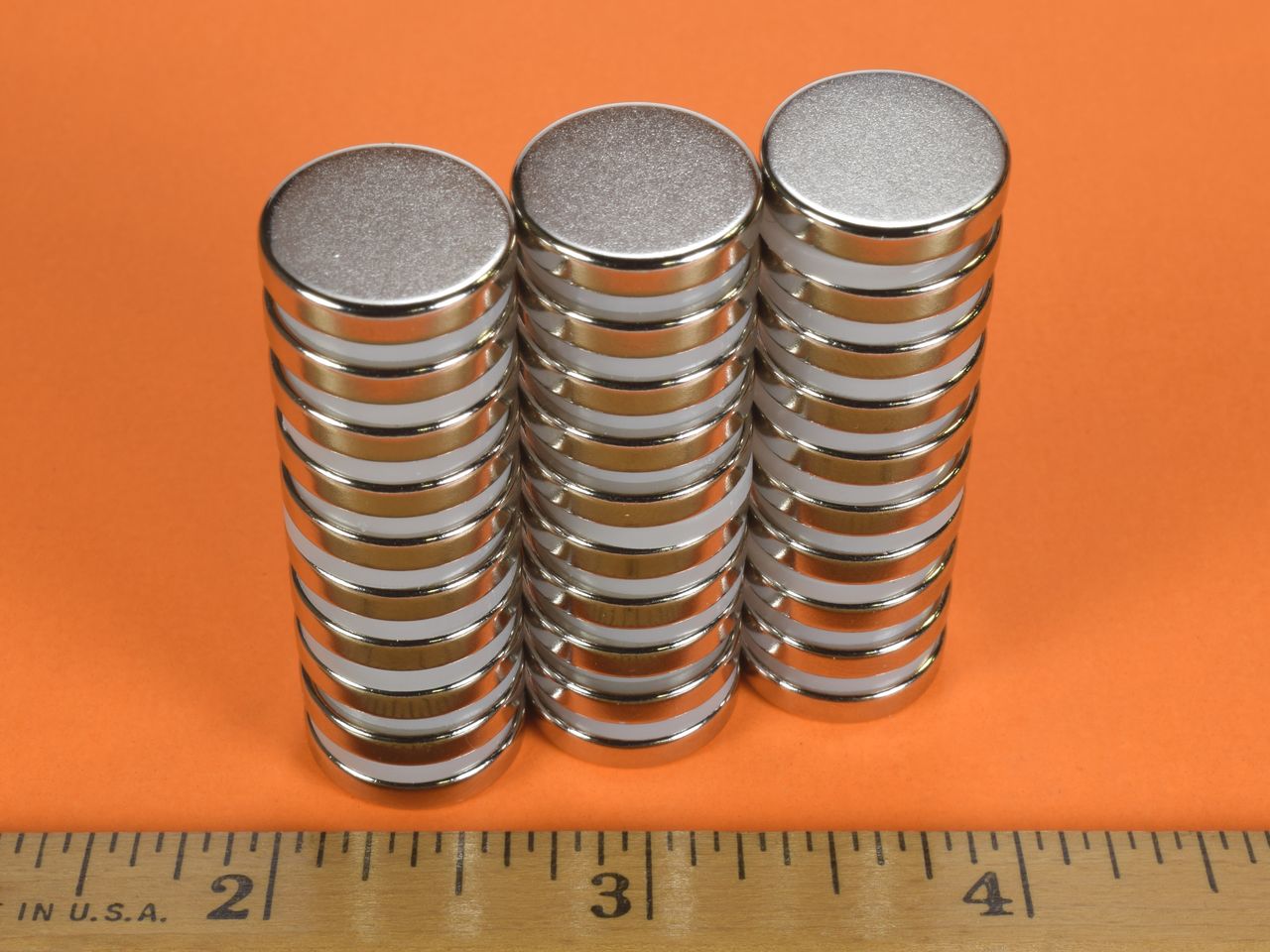

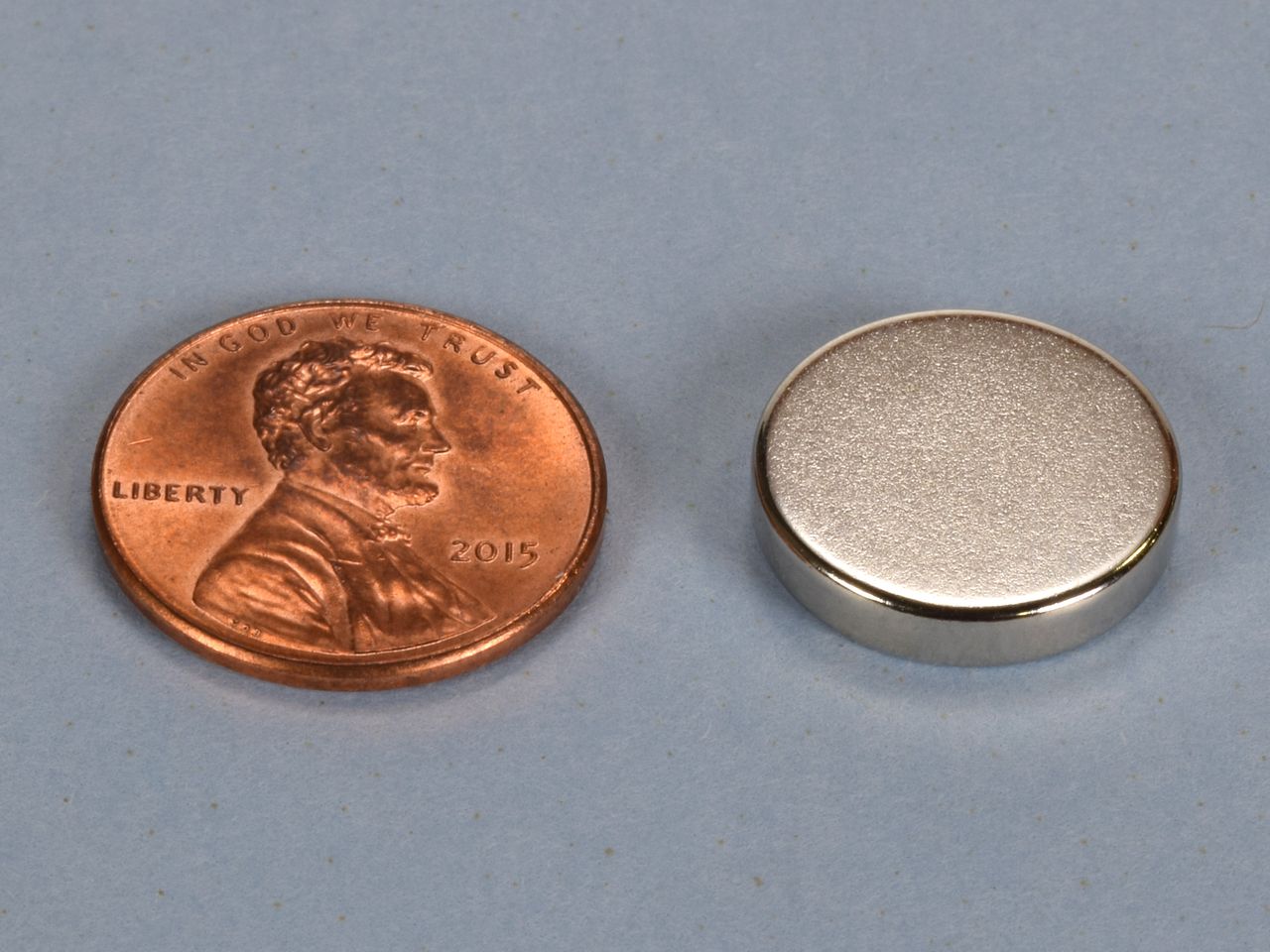

DA2-N52 - Neodymium Disc Magnet

da2-n52-neodymium-disc-magnet--thumbnail-2

$1.82

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.82	1-9
$1.78	10-24	2%
$1.74	25-49	4%
$1.70	50-99	7%
$1.66	100-249	9%
$1.62	250-499	11%
$1.58	500-999	13%
$1.54	1000-2499	15%
$1.50	2500-4999	18%
$1.46	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 5/8" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.166 oz. (4.71 g)
Pull Force, Case 1: 10.15 lbs
Pull Force, Case 2: 32.44 lbs
Surface Field: 2748 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

The DA2-N52 discs are amazingly strong and handy neodymium magnets. They are too strong to be treated as toys, but they are very handy if you need a 5/8" diameter disc. The size for holding heavy objects.

This size is also available in grade N42 as part number DA2.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
