> DA2SH - Neodymium High Temp Disc Magnet

DA2SH - Neodymium High Temp Disc Magnet

$2.21

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.21	1-4
$2.16	5-9	2%
$2.11	10-24	5%
$2.06	25-49	7%
$2.01	50-99	9%
$1.96	100-249	11%
$1.91	250-499	14%
$1.86	500-999	16%
$1.81	1000-2499	18%
$1.76	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 5/8" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.166 oz. (4.71 g)
Pull Force, Case 1: 8.20 lbs
Pull Force, Case 2: 26.20 lbs
Surface Field: 2451 Gauss
Max Operating Temp: 302ºF (150ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

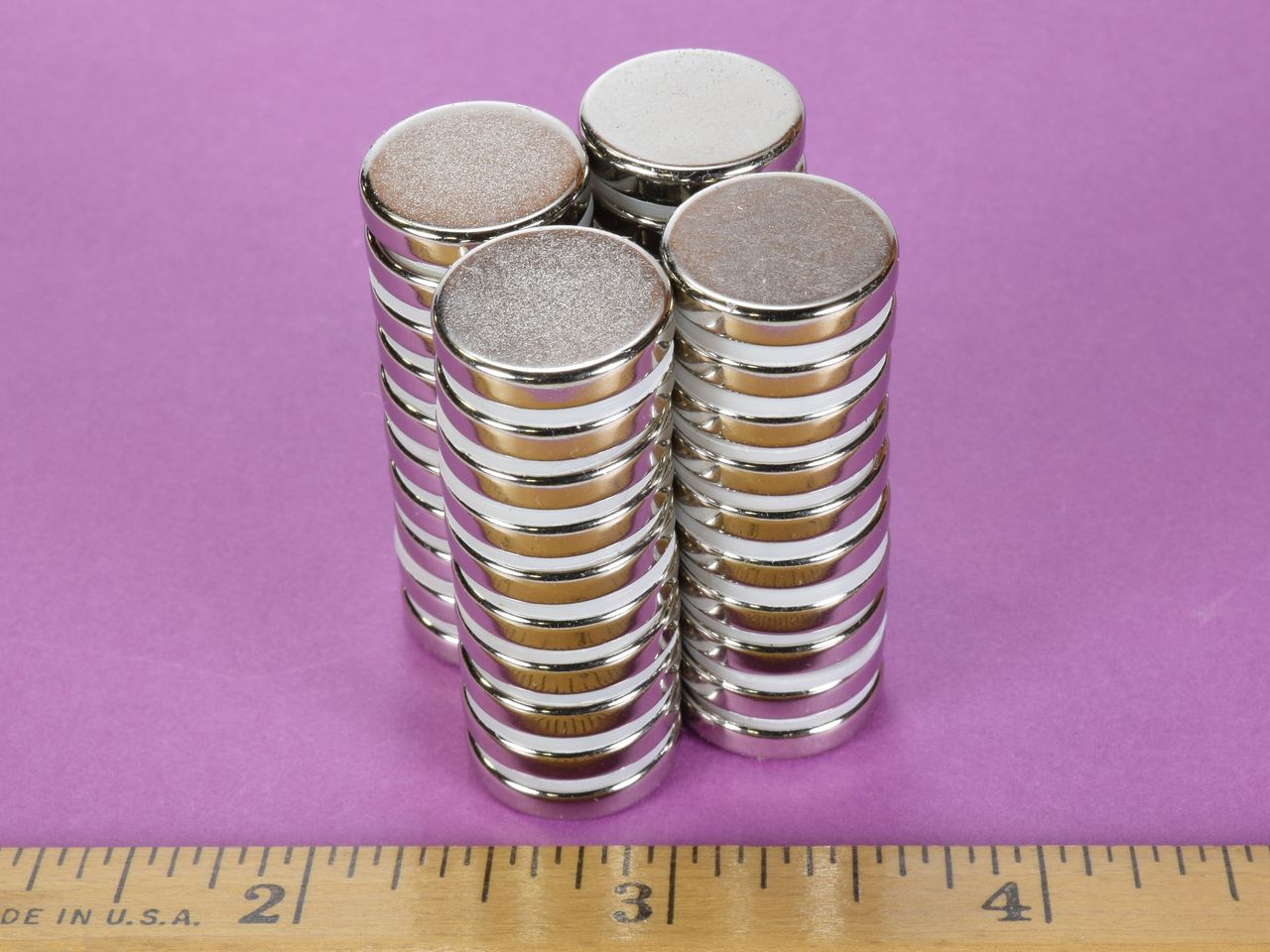

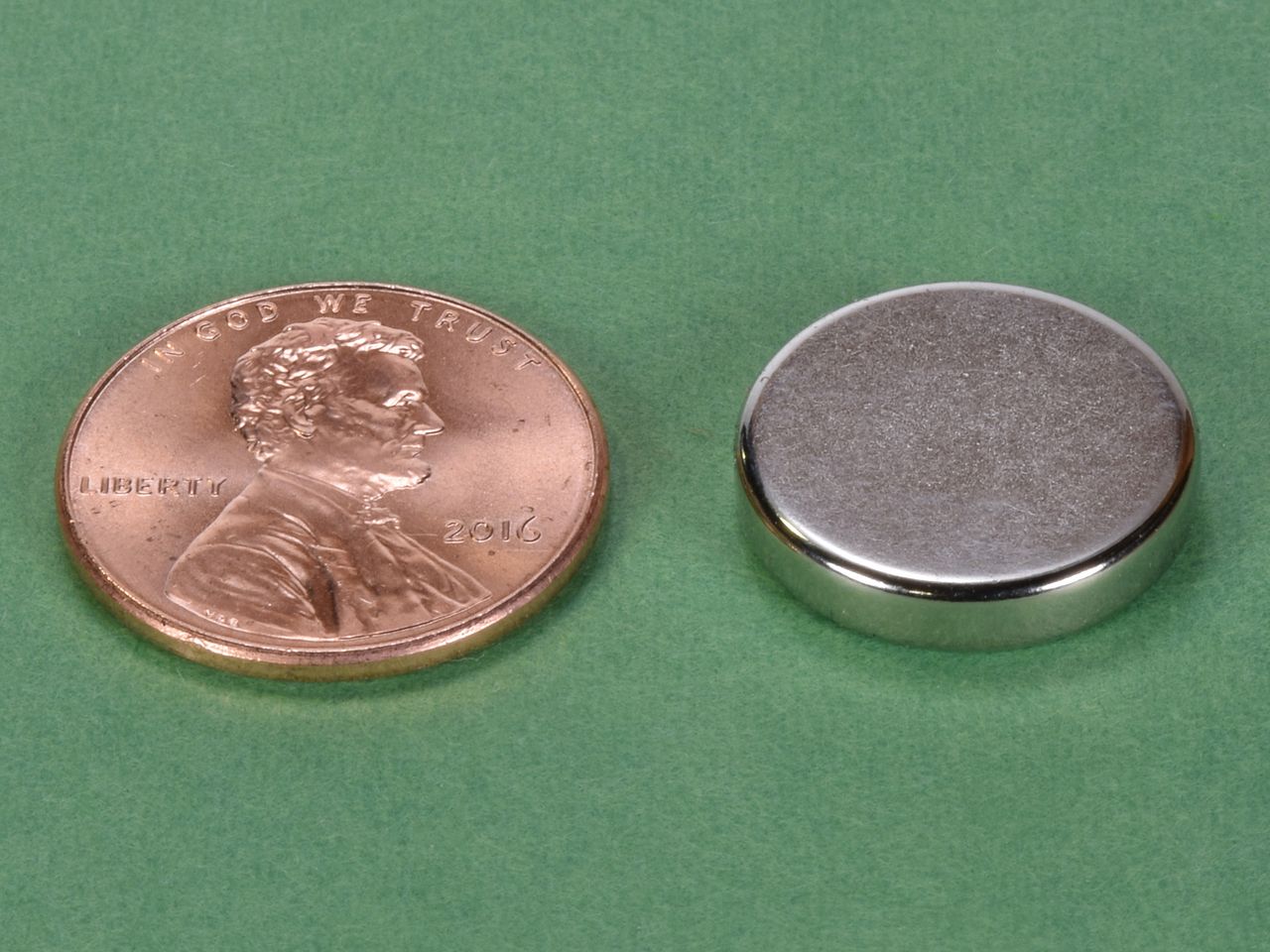

This is a very powerful 5/8" diameter x 1/8" neodymium high temperature disc magnet. It is very versatile and can be used for a wide variety of high temperature magnetic applications.

Our DA2SH disc magnets are made with grade N42SH (SH = Super High Temperature) material. The SH material means that the magnets can be heated to 300° F without any permanent loss of magnetic strength, unlike standard neodymium magnets that begin to lose strength at 175° F. Suitable for many high temperature applications.

This size is also available in grade N42 as part number DA2 and in grade N52 as part number DA2-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
