> DA4 - Neodymium Disc Magnet

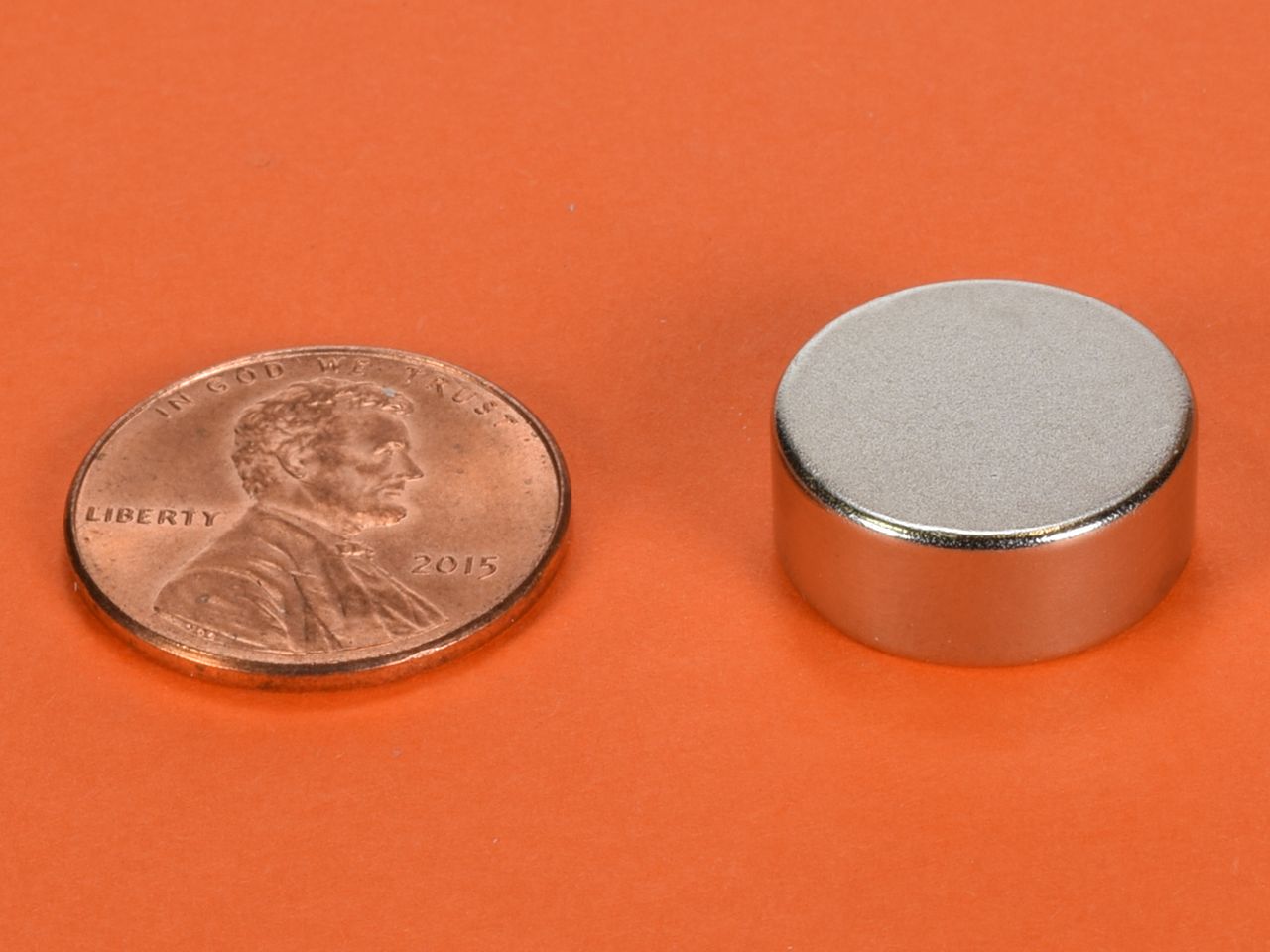

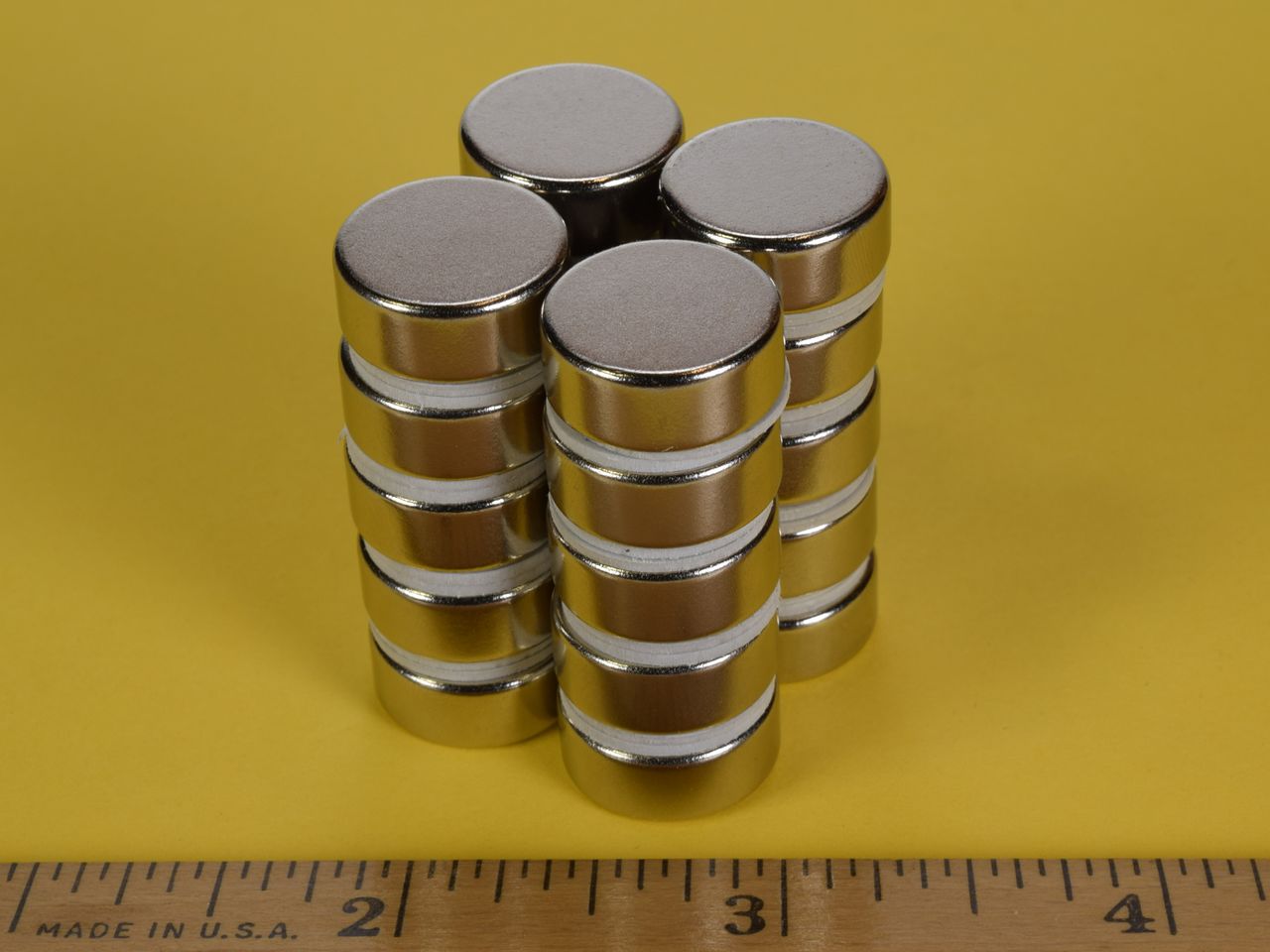

DA4 - Neodymium Disc Magnet

$2.48

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.48	1-4
$2.42	5-9	2%
$2.37	10-24	4%
$2.31	25-49	7%
$2.26	50-99	9%
$2.20	100-249	11%
$2.15	250-499	13%
$2.09	500-999	16%
$2.04	1000-2499	18%
$1.98	2500-4999	20%
$1.92	5000-9999	23%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 5/8" dia. x 1/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.333 oz. (9.43 g)
Pull Force, Case 1: 15.30 lbs
Pull Force, Case 2: 26.40 lbs
Surface Field: 4123 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The DA4 is a very strong and sturdy neodymium disc magnet. They are too strong to be considered toys, but they are very handy if you need a hefty 5/8" diameter disc magnet. This is a nice size for medium-to-heavy-duty holding jobs.

This size is also available in grade N52 as part number DA4-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
