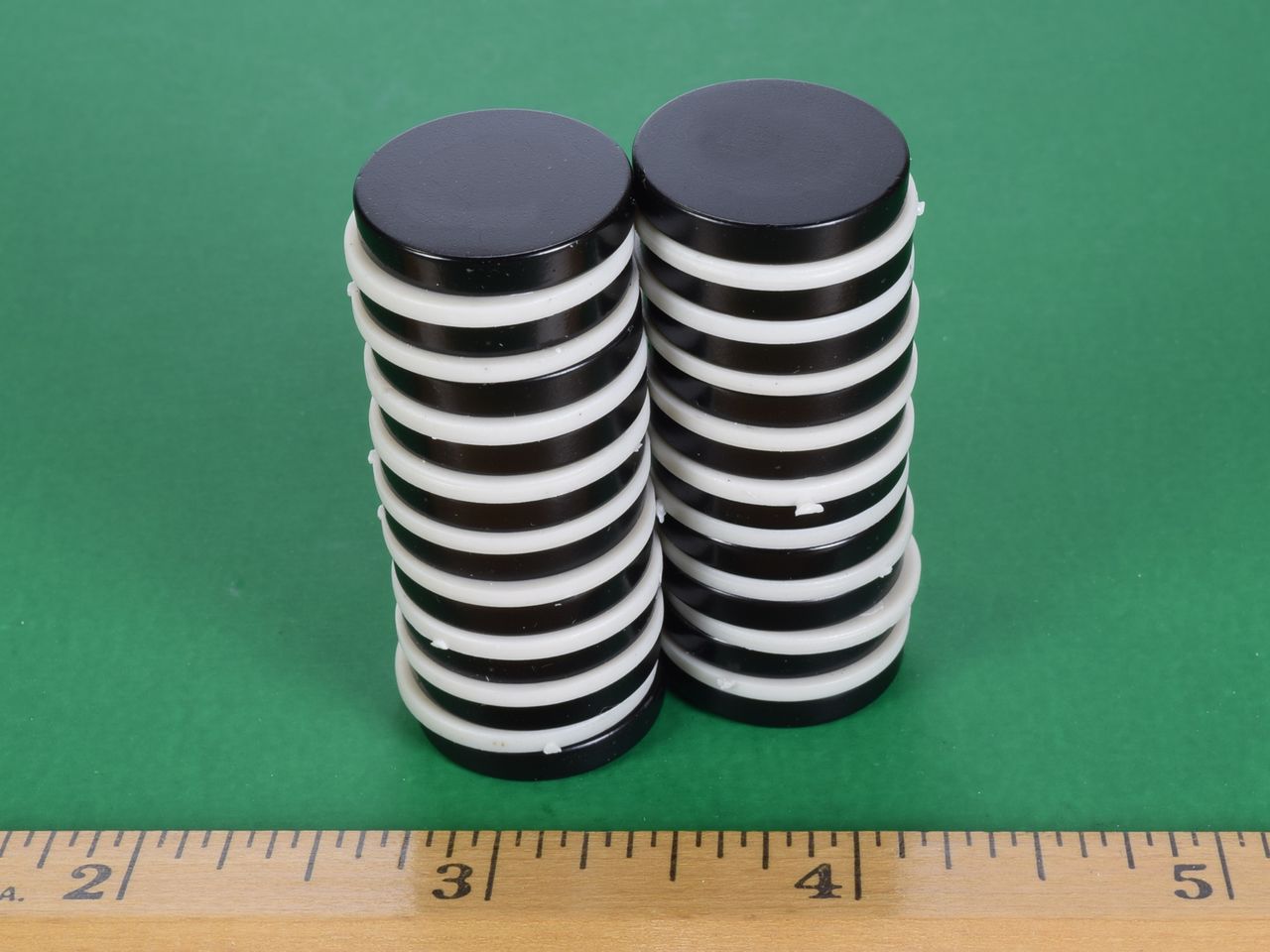

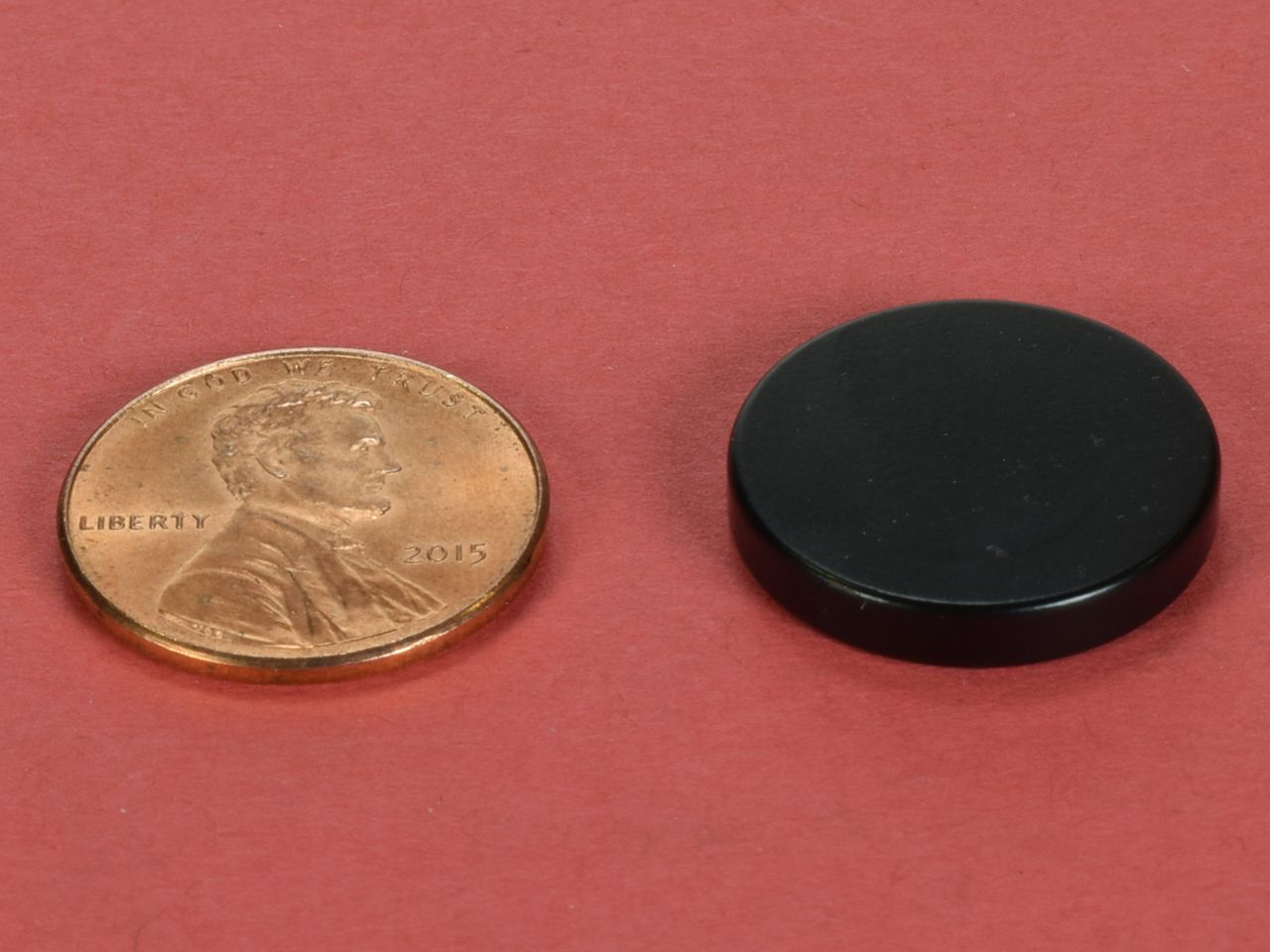

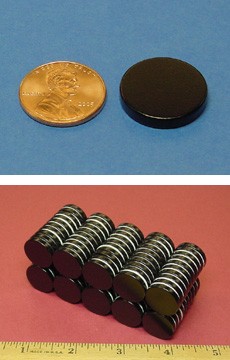

DC2E - Neodymium Epoxy Coated Disc Magnet

$2.00

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.00	1-9
$1.96	10-24	2%
$1.91	25-49	5%
$1.87	50-99	6%
$1.82	100-249	9%
$1.78	250-499	11%
$1.73	500-999	14%
$1.69	1000-2499	16%
$1.64	2500-4999	18%
$1.60	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/4" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Black Epoxy
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.239 oz. (6.79 g)
Pull Force, Case 1: 9.76 lbs
Pull Force, Case 2: 36.00 lbs
Surface Field: 2087 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These black epoxy coated discs are suitable for applications that require extra corrosion resistance. Epoxy is the most corrosion resistant of the neodymium coating options. The coating gives the magnets a deep, black finish. Epoxy coated magnets are a good option if you will be using the magnets outdoors or in a humid environment.

This size is also available in grade N52 as part number DC2-N52 and in grade N42 with our standard Nickel plating as part number DC2.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
