DC6DIA - Neodymium Diametric Disc Magnet

• Dimensions: 3/4" dia. x 3/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Diametrical
• Weight: 0.72 oz. (20.4 g)
• Pull Force, Case 1: 10.73 lbs
• Pull Force, Case 2: 15.06 lbs
• Surface Field: 6503 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

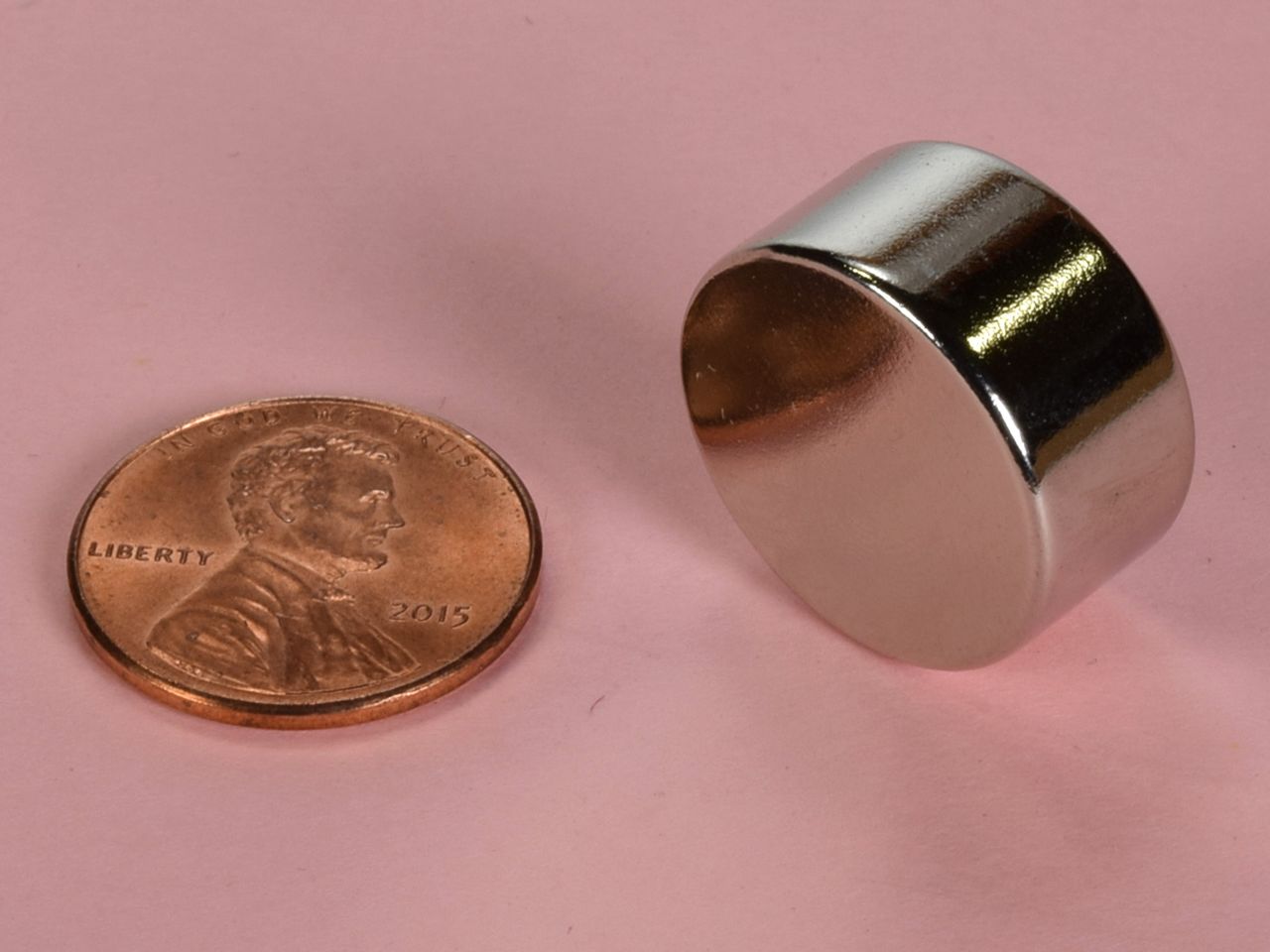

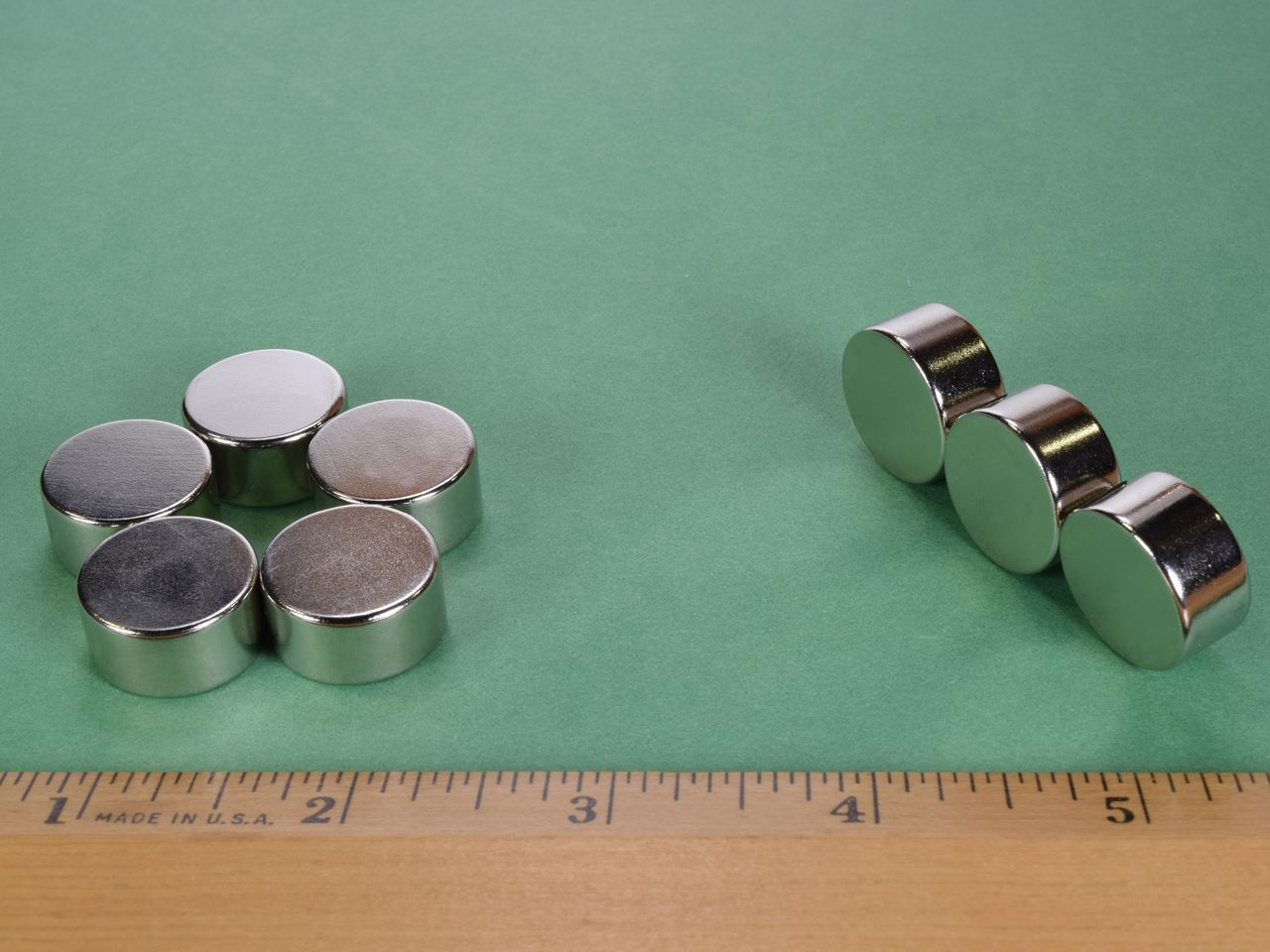

These diametrically magnetized discs are very powerful.  They are magnetized perpendicular to the axis of the cylinder, so they will attract "side-to-side" with great force.  They "feel" stronger and are a bit more difficult to handle than the axially magnetized cylinders of the same size.

This size is also available axially magnetized as part number DC6 and in Grade N52 with a Black Nickel plating as part number DC6B-N52.


	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
