DEX2 - Neodymium Cylinder Magnet

• Dimensions: 7/8" dia. x 1 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 2.93 oz. (83.2 g)
• Pull Force, Case 1: 47.75 lbs
• Pull Force, Case 2: 47.75 lbs
• Surface Field: 6151 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

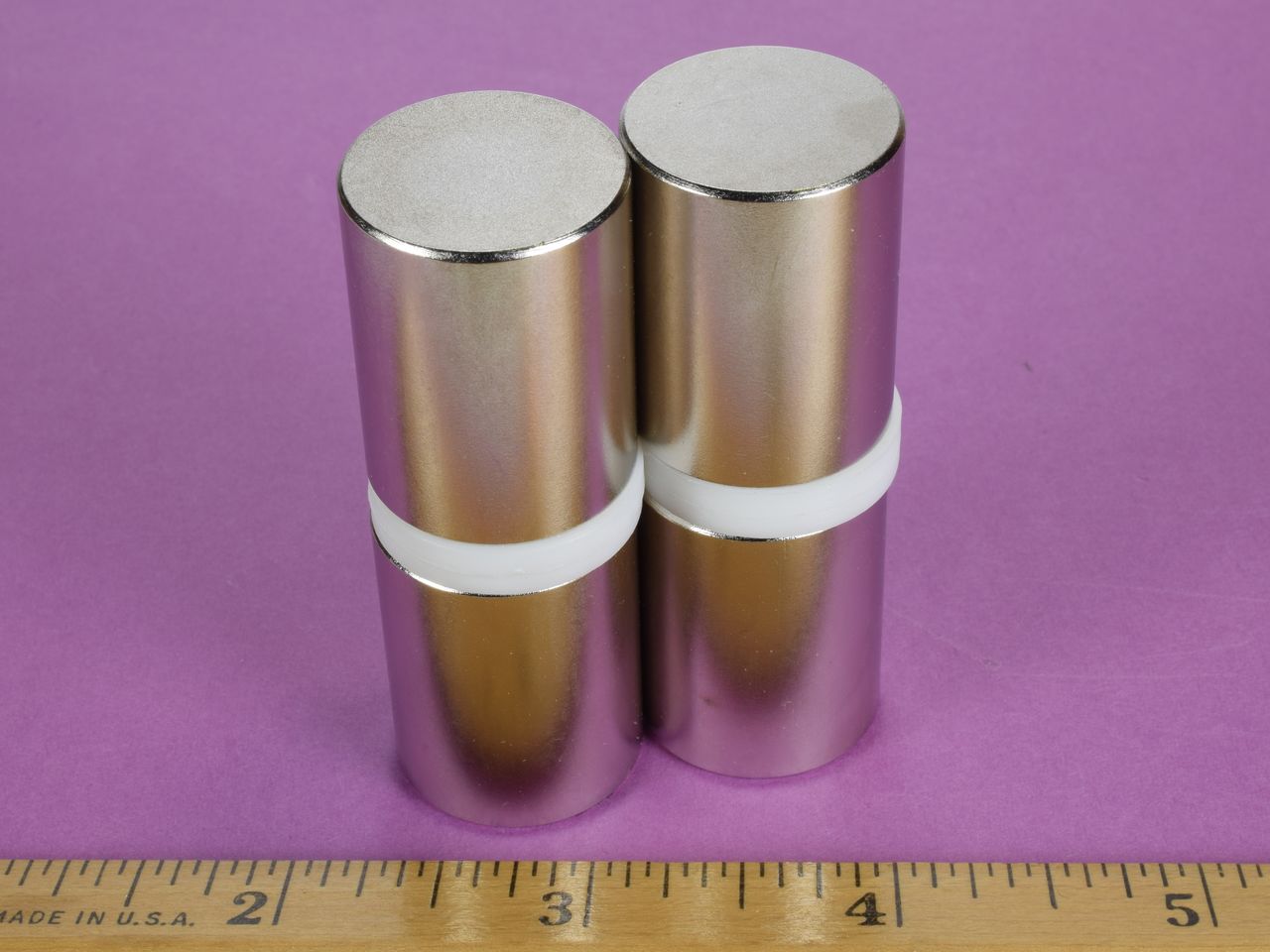

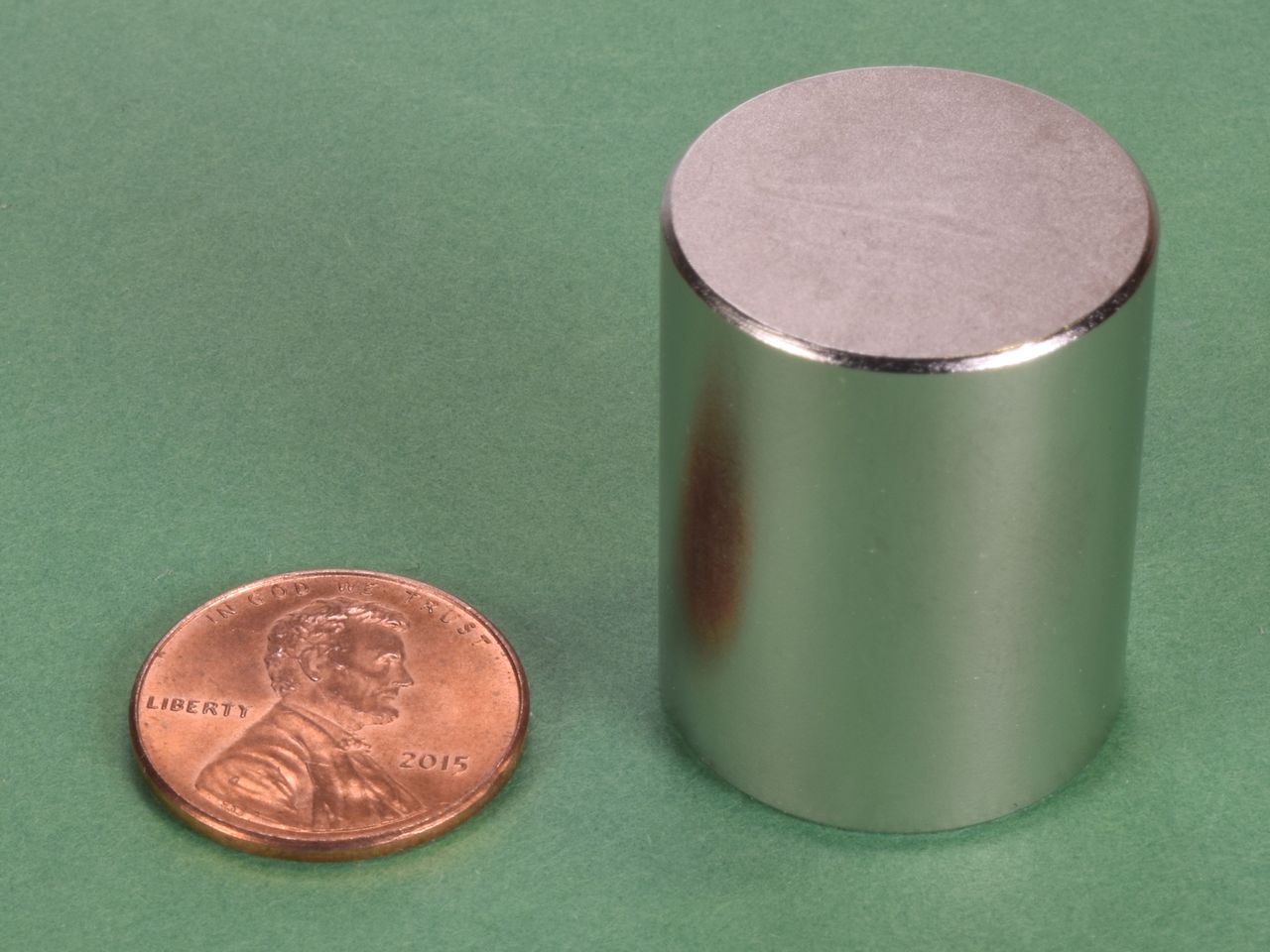

This 7/8" diameter cylinder is certainly a unique size, but its 1 1/8" length make it easy to grab and work with.  This is a very strong magnet!
