- Dimensions: 2/10" dia. x 3/16" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0255 oz. (0.724 g)
- Pull Force, Case 1: 2.07 lbs
- Pull Force, Case 2: 2.40 lbs
- Surface Field: 5824 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

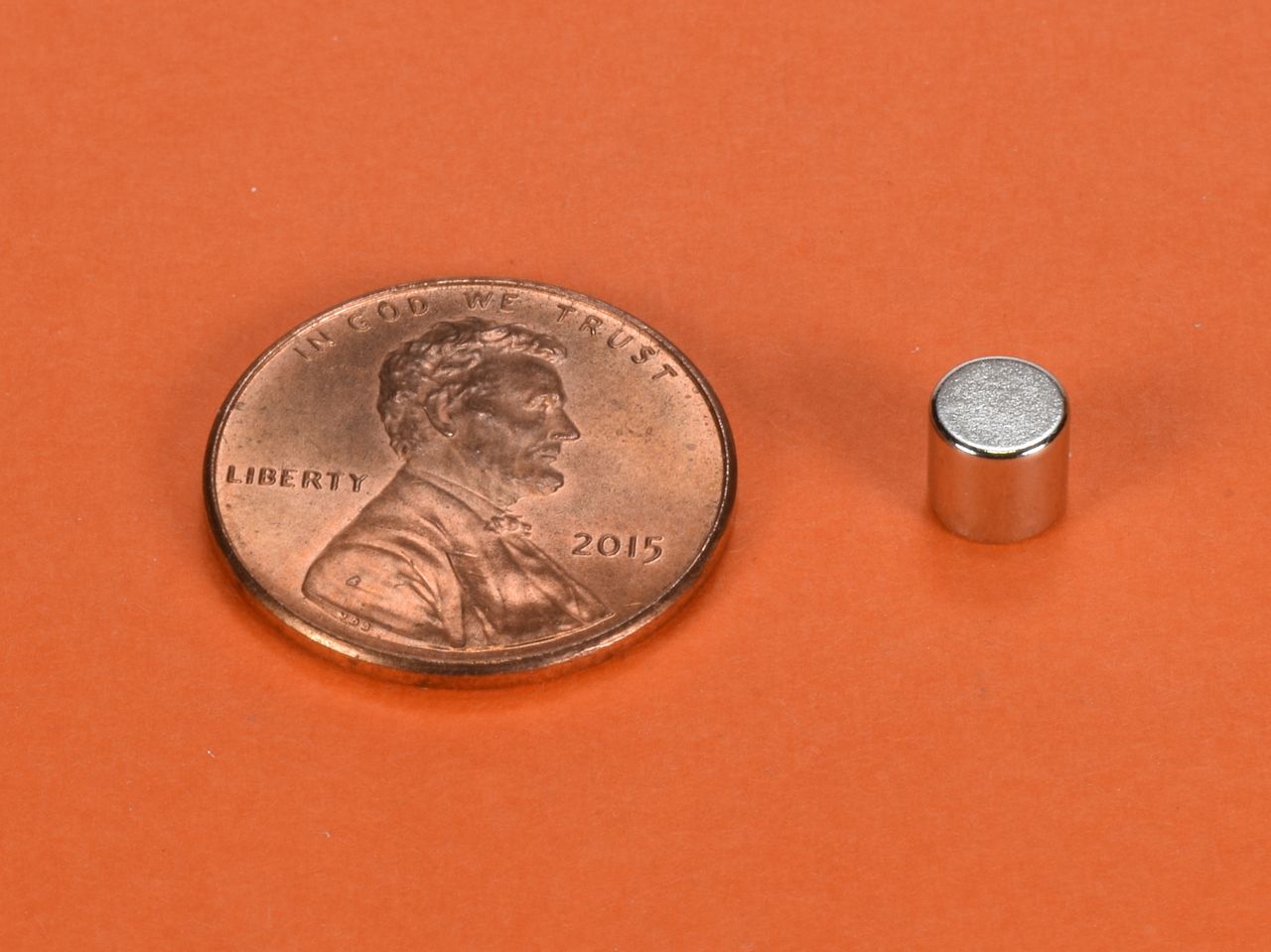

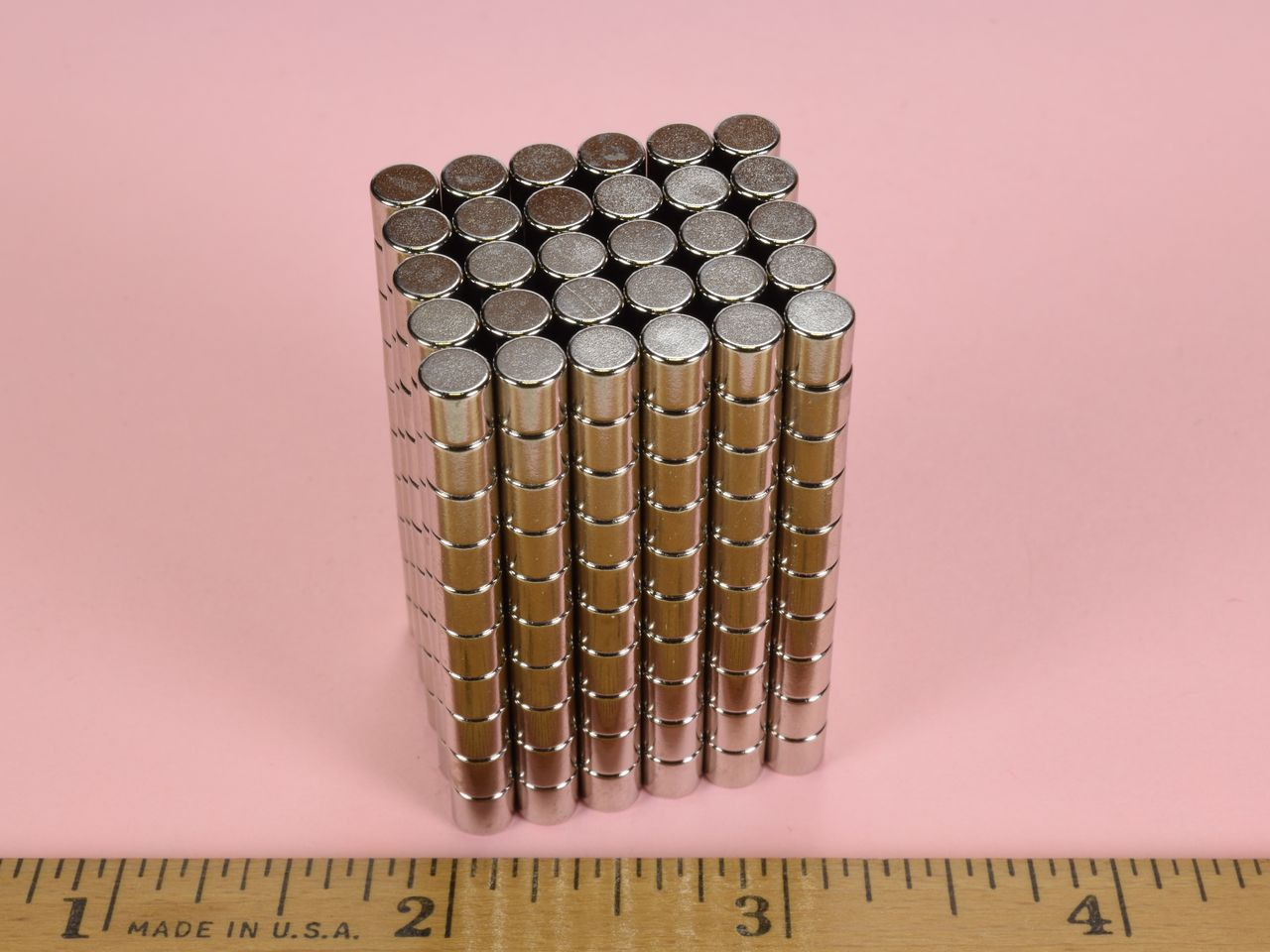

The DH23 is one of our newest additions featuring a true 0.200" (+/-0.004") diameter. These small magnets are in high demand since they are perfectly suited for use in today's ever-shrinking electronics, sensors and various medical devices. They are also great for hobbies, crafts, science experiments and so much more! A very unique size you won't find anywhere else!
 | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
 | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
 | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
 | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
 | Click this link for a depiction of the magnetic field. |
 | View B-H curves for this magnet. |
