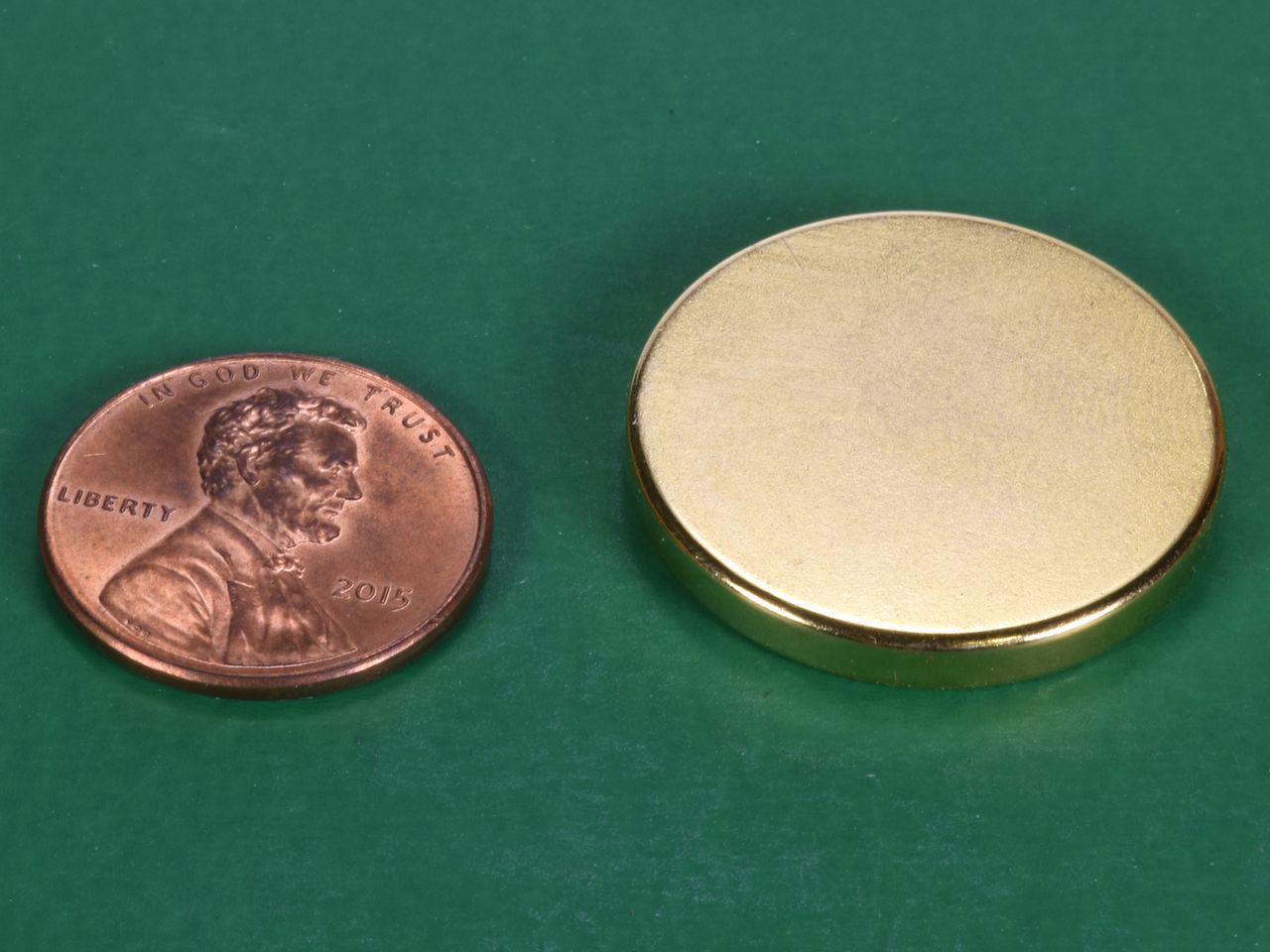

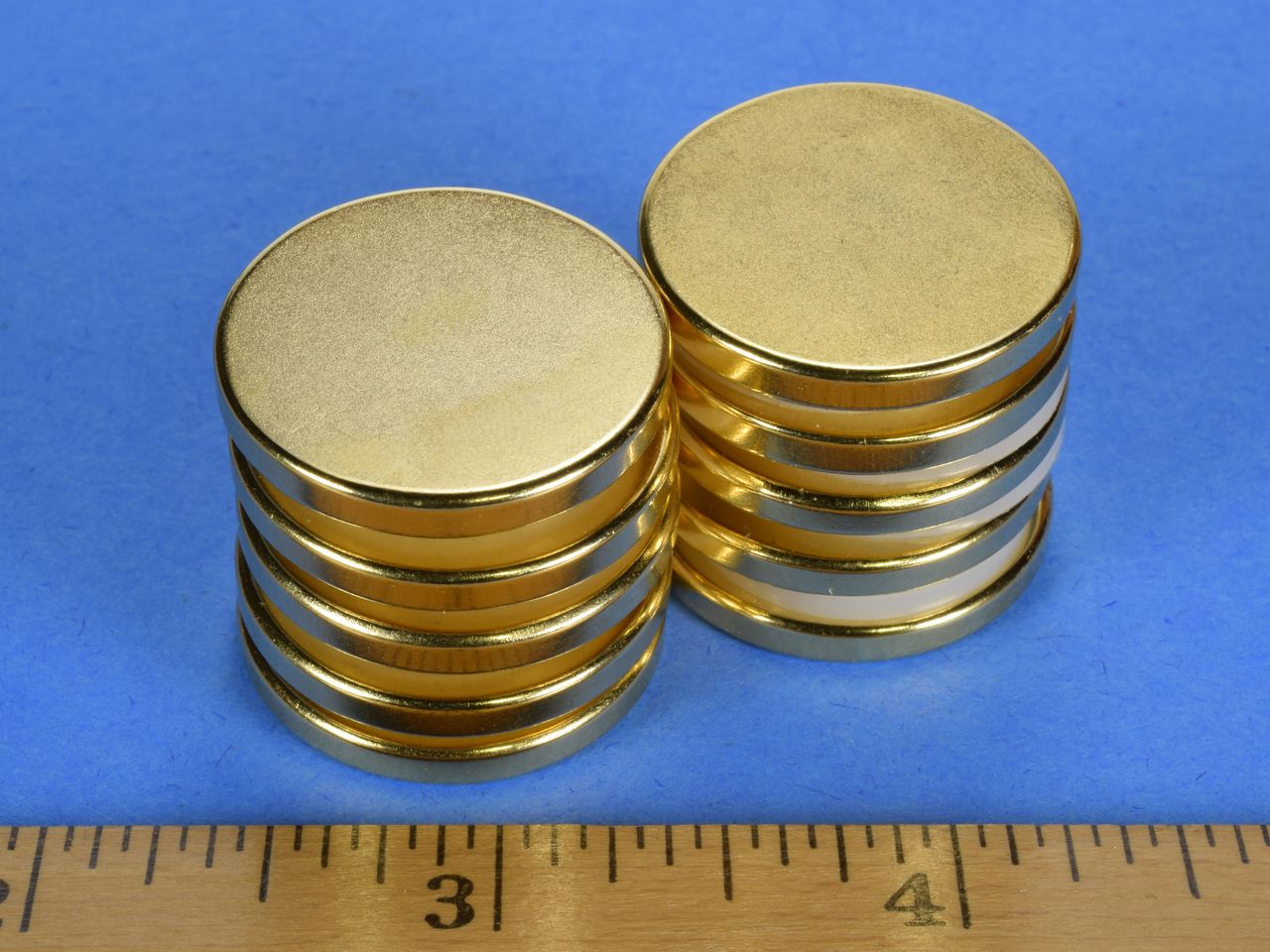

- Dimensions: 1" dia. x 1/8" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni-Au (Gold)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.426 oz. (12.1 g)
- Pull Force, Case 1: 15.60 lbs
- Pull Force, Case 2: 70.57 lbs
- Surface Field: 1795 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe
This size is also available in grade N42 as part number DX02 and in nickel-plated grade N52 as part number DX02-N52.
