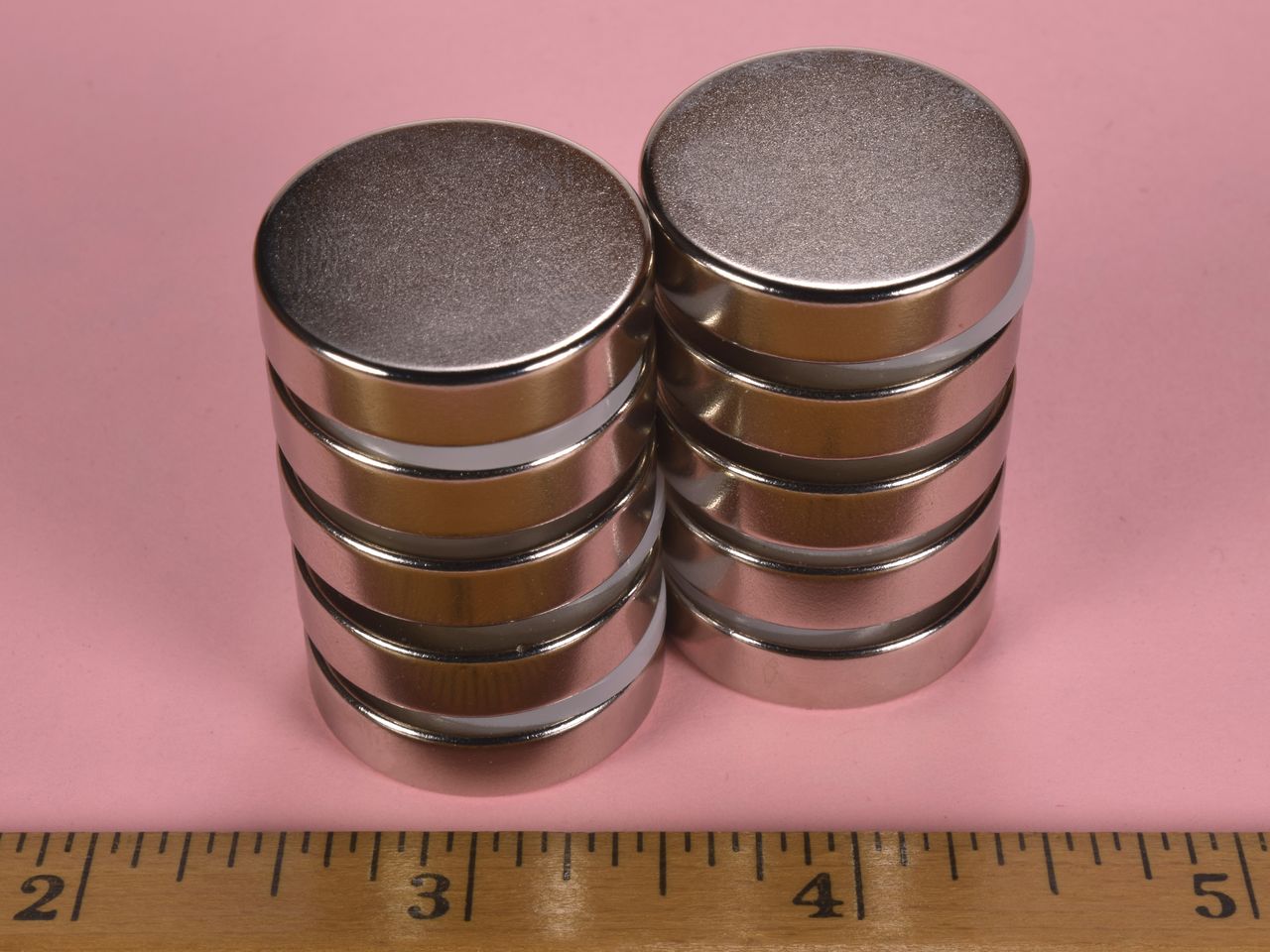

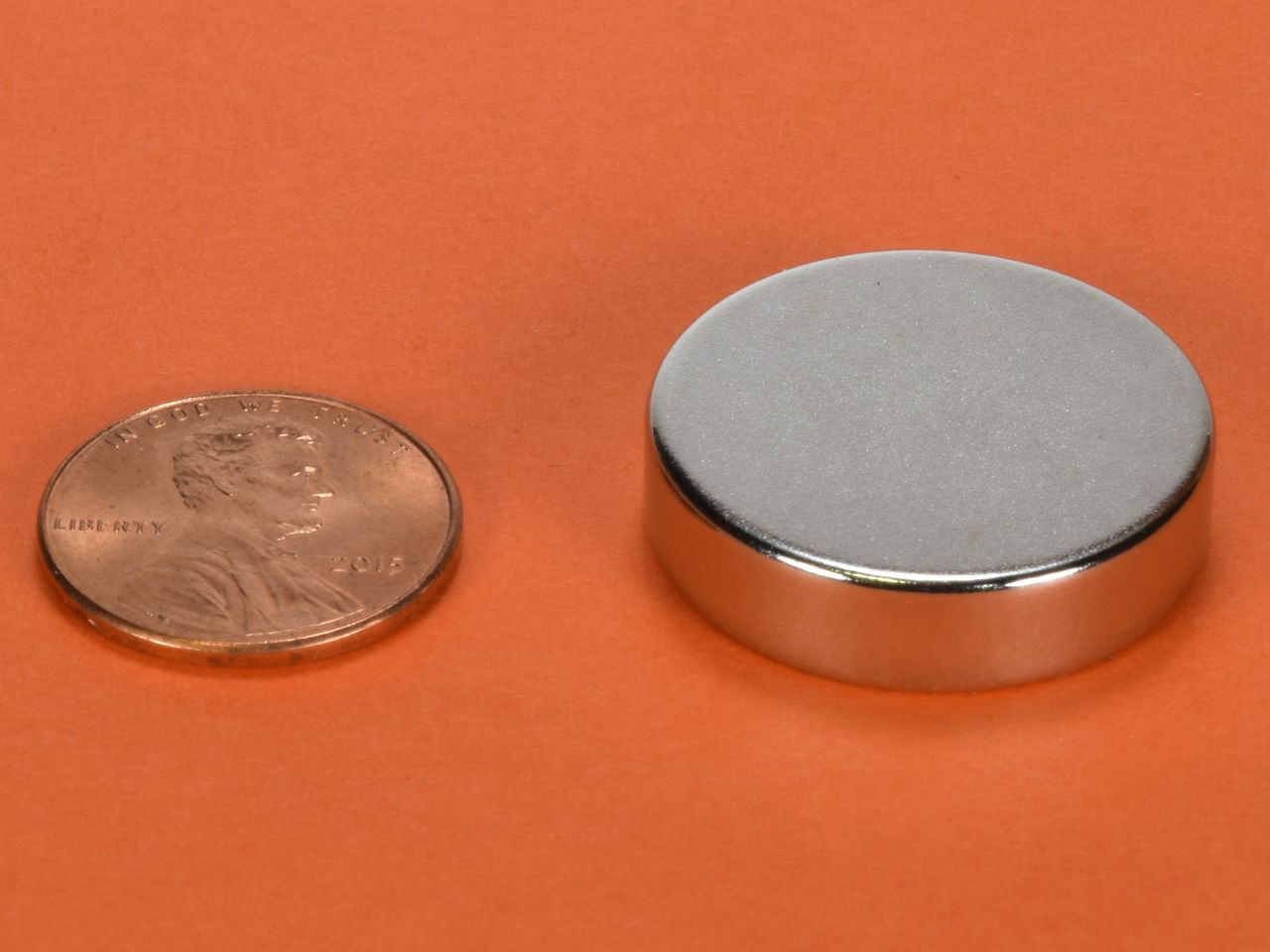

- Dimensions: 1" dia. x 1/4" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.851 oz. (24.1 g)
- Pull Force, Case 1: 27.20 lbs
- Pull Force, Case 2: 59.00 lbs
- Surface Field: 2952 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
This size is also available in grade N52 with Black Nickel plating as part number DX04B-N52.
