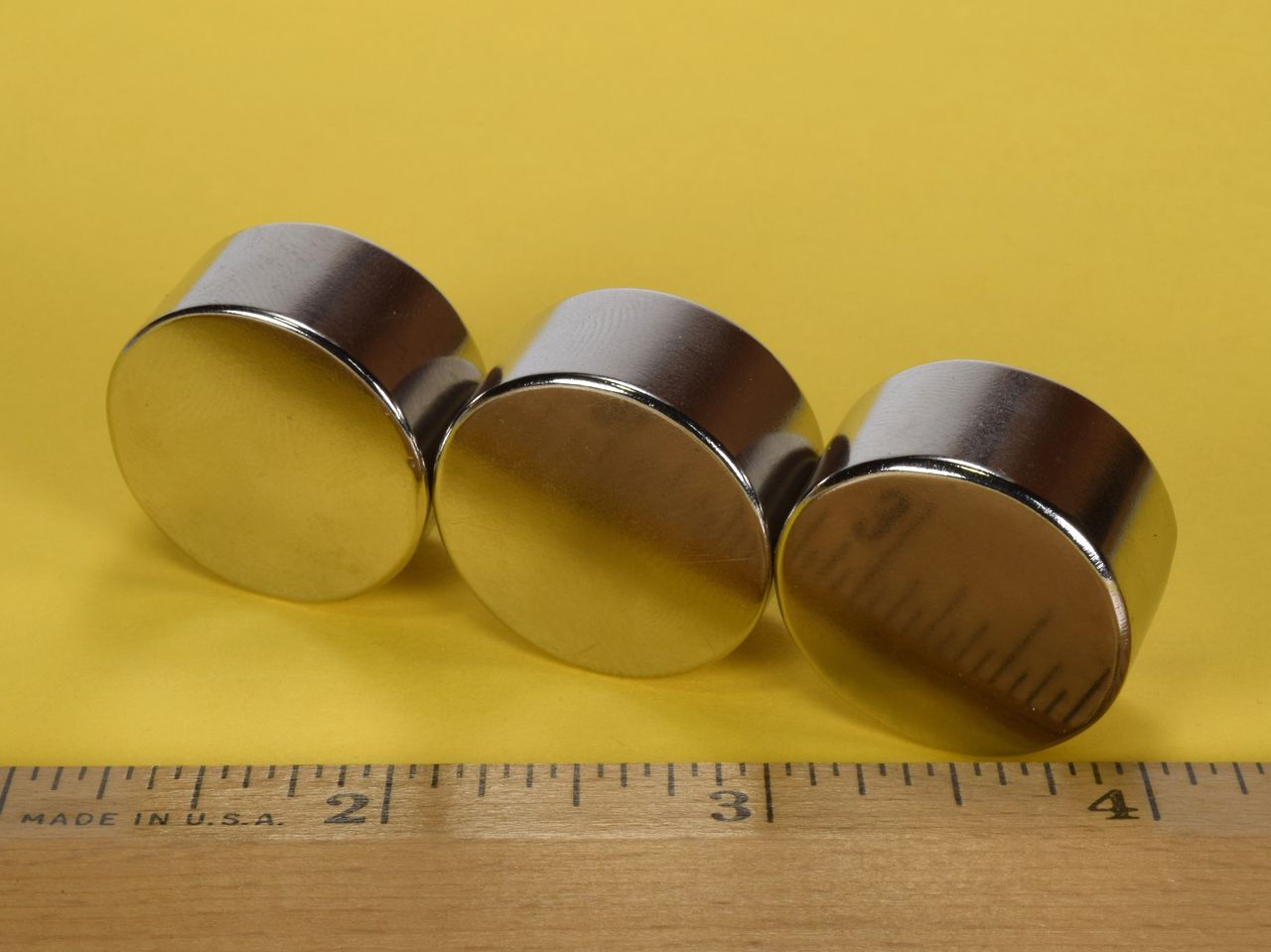

DX08DIA - Neodymium Diametric Disc Magnet

• Dimensions: 1" dia. x 1/2" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Diametrical
• Weight: 1.70 oz. (48.3 g)
• Pull Force, Case 1: 19.05 lbs
• Pull Force, Case 2: 25.50 lbs
• Surface Field: 6503 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The diametrically magnetized DX08DIA disc magnets are very powerful. They are magnetized perpendicular to the axis of the cylinder, so they will attract "side-to-side" with great force.  They may "feel" stronger and are a bit more difficult to handle than their axially magnetized cousins of the same size. They can be pretty tricky to handle, so use caution and plan ahead.

This size is also available axially magnetized in grade N52 as part number DX08B-N52 and in grade N42 as part number DX08.


	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
