DX44-N52-SP - Special Pricing Magnet

dx44-n52-sp-special-pricing-magnet--thumbnail-2

$9.01

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$9.01	1
$8.77	2500-4999	24%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

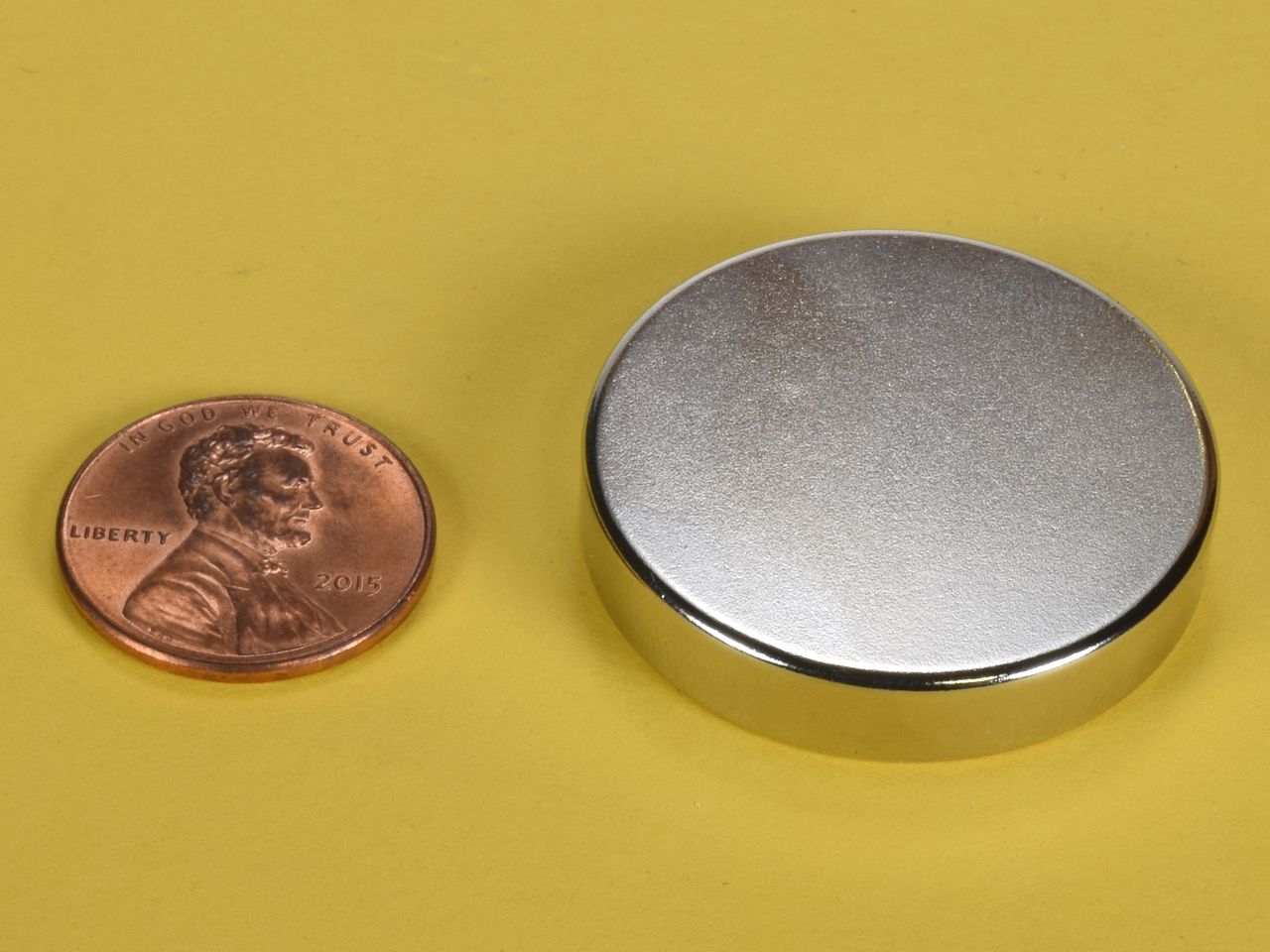

Dimensions: 1 1/4" dia. x 1/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.33 oz. (37.7 g)
Pull Force, Case 1: 38.13 lbs
Pull Force, Case 2: 110.7 lbs
Surface Field: 2748 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

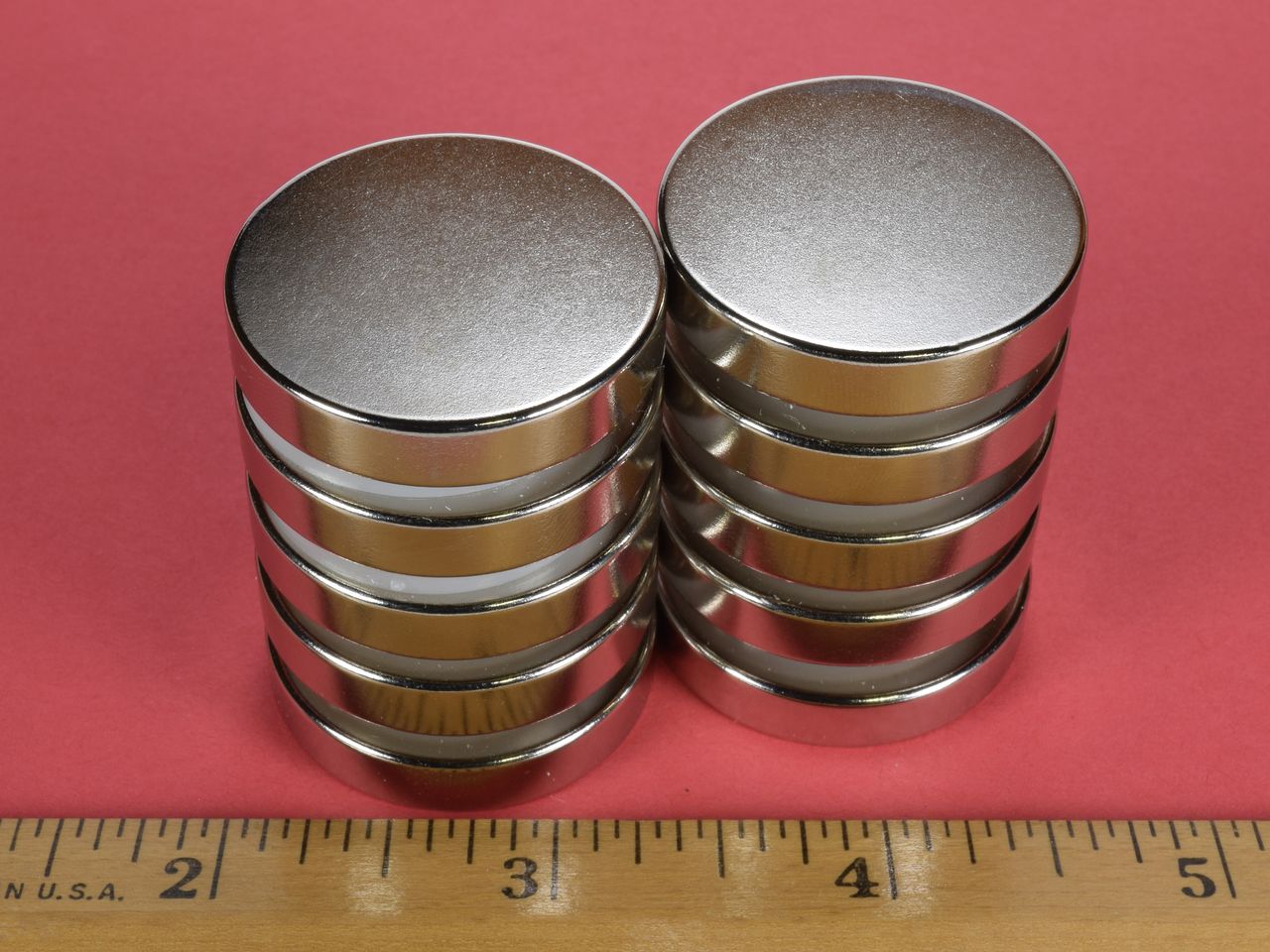

These mighty, low-profile discs are a great option for a variety of heavy holding applications. They are sturdy and very powerful. The DX44-N52 is not quite impossible to separate by hand... but it certainly won't be easy. They may be compact but they can still pinch quite hard if handled improperly.

This size is also available in Grade N42 as part number DX44.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
