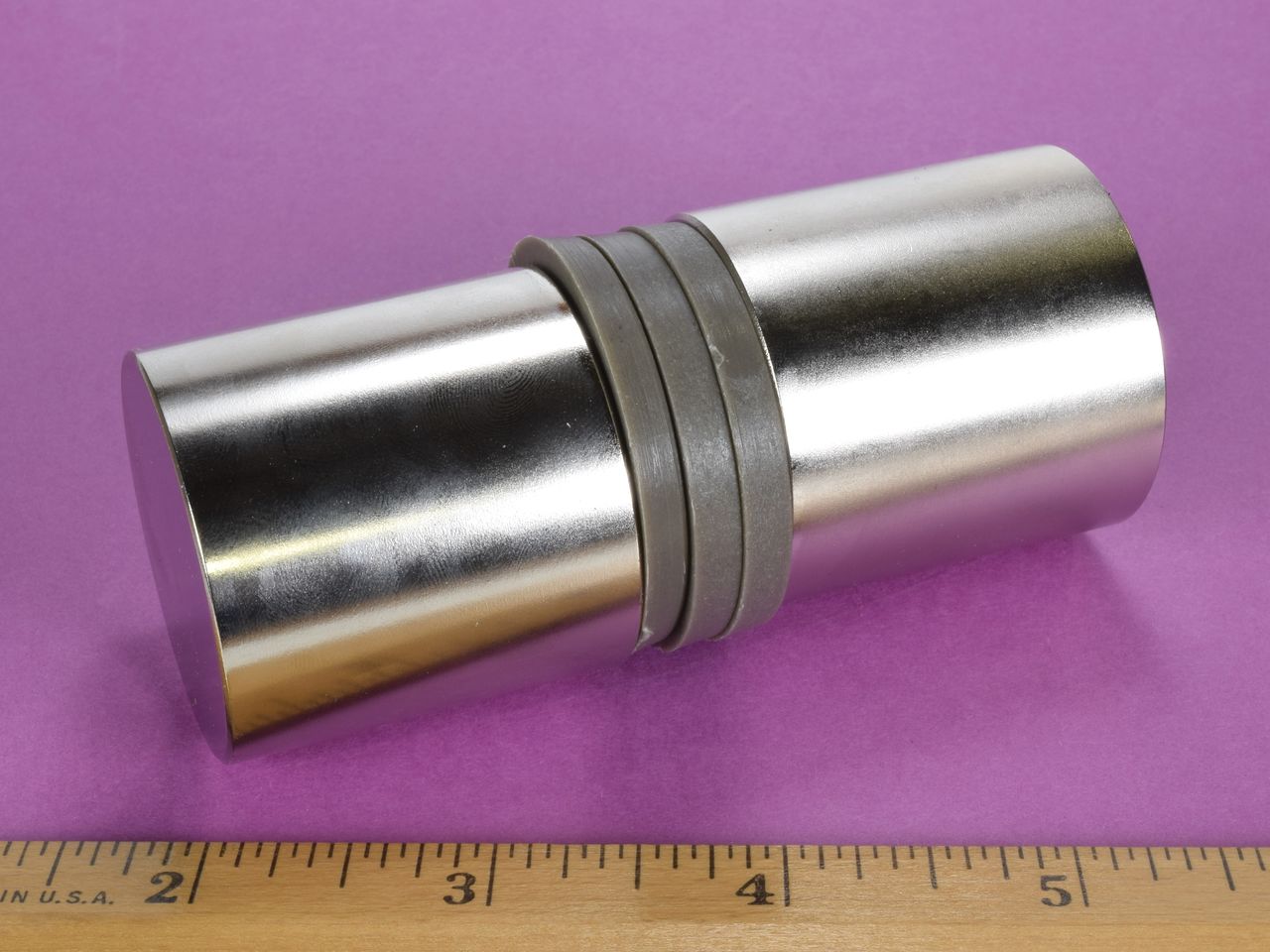

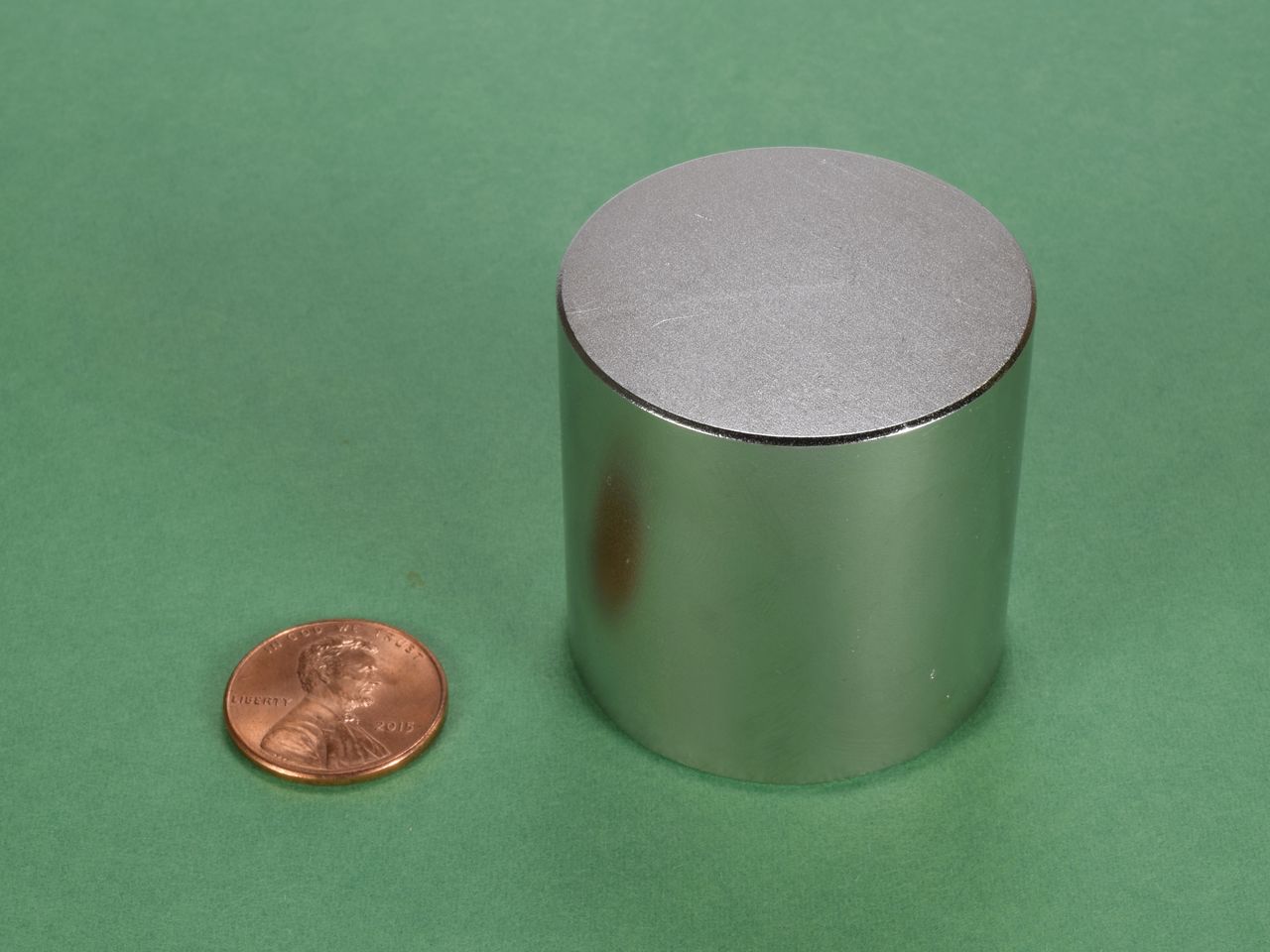

DX8X8 - Neodymium Cylinder Magnet

dx8x8-neodymium-cylinder-magnet--thumbnail-2

$66.44

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$66.44	1
$64.96	2	2%
$63.49	3-4	4%
$62.01	5-9	7%
$60.53	10-14	9%
$59.06	15-19	11%
$57.58	20-24	13%
$56.10	25-49	16%
$54.63	50-99	18%
$53.15	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1 1/2" dia. x 1 1/2" thick
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 11.5 oz. (326 g)
Pull Force, Case 1: 145.0 lbs
Pull Force, Case 2: 145.0 lbs
Surface Field: 5903 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The DX8X8 is an incredibly powerful cylinder magnet. Useful for applications in which SUPER STRONG holding power is needed. They should only be purchased by users familiar with the proper handling of very large neodymium magnets. For most people, two of these stuck together are impossible to separate by hand.

As with any rare-earth magnet of this size, they can pinch insanely hard and cause extreme physical harm if they are not handled with the greatest of care and respect. THESE ARE DANGEROUS!

You must read and understand our Neodymium Magnet Safety Page before ordering these magnets and agree to our Terms and Conditions prior to purchasing.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
