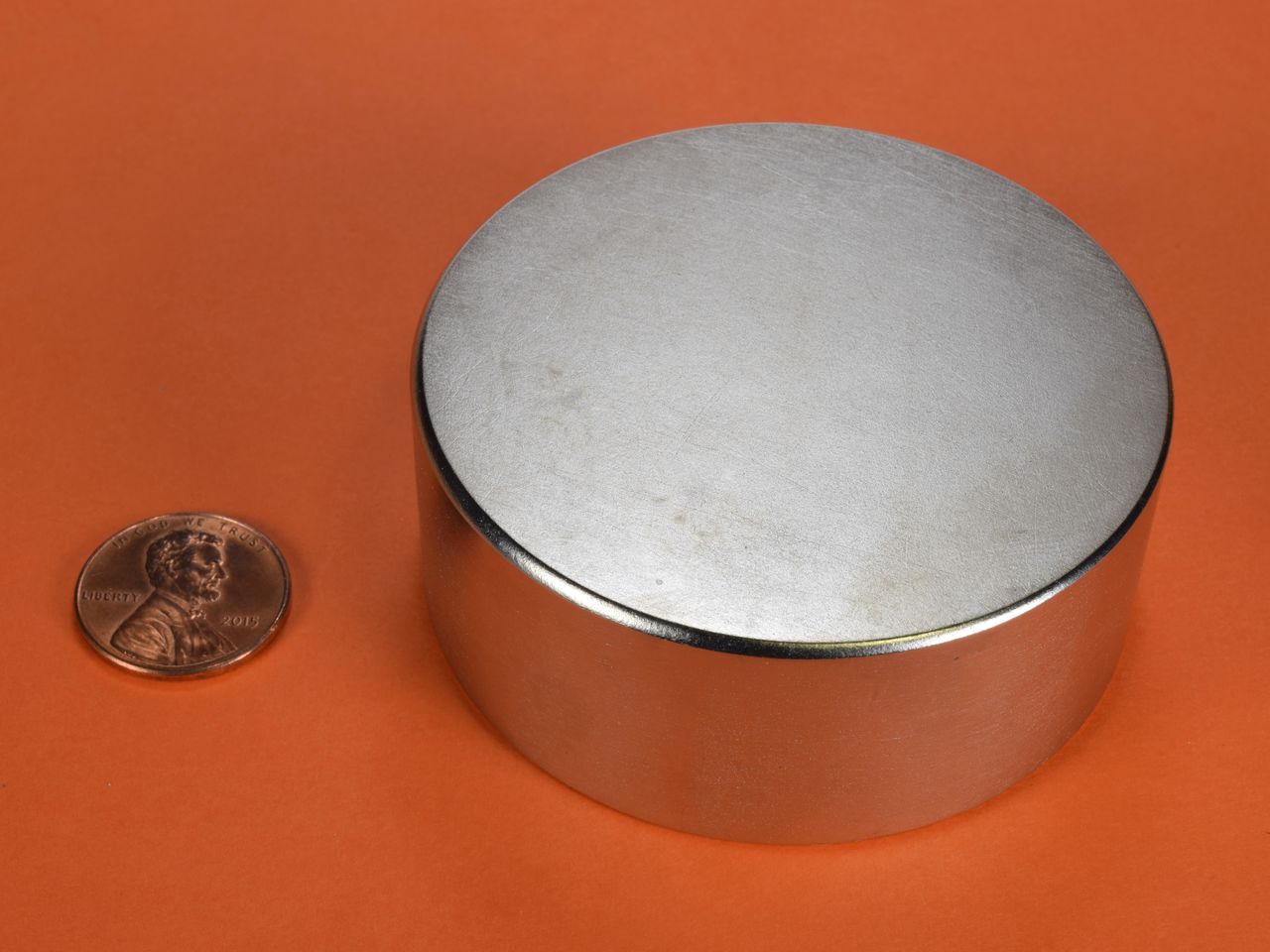

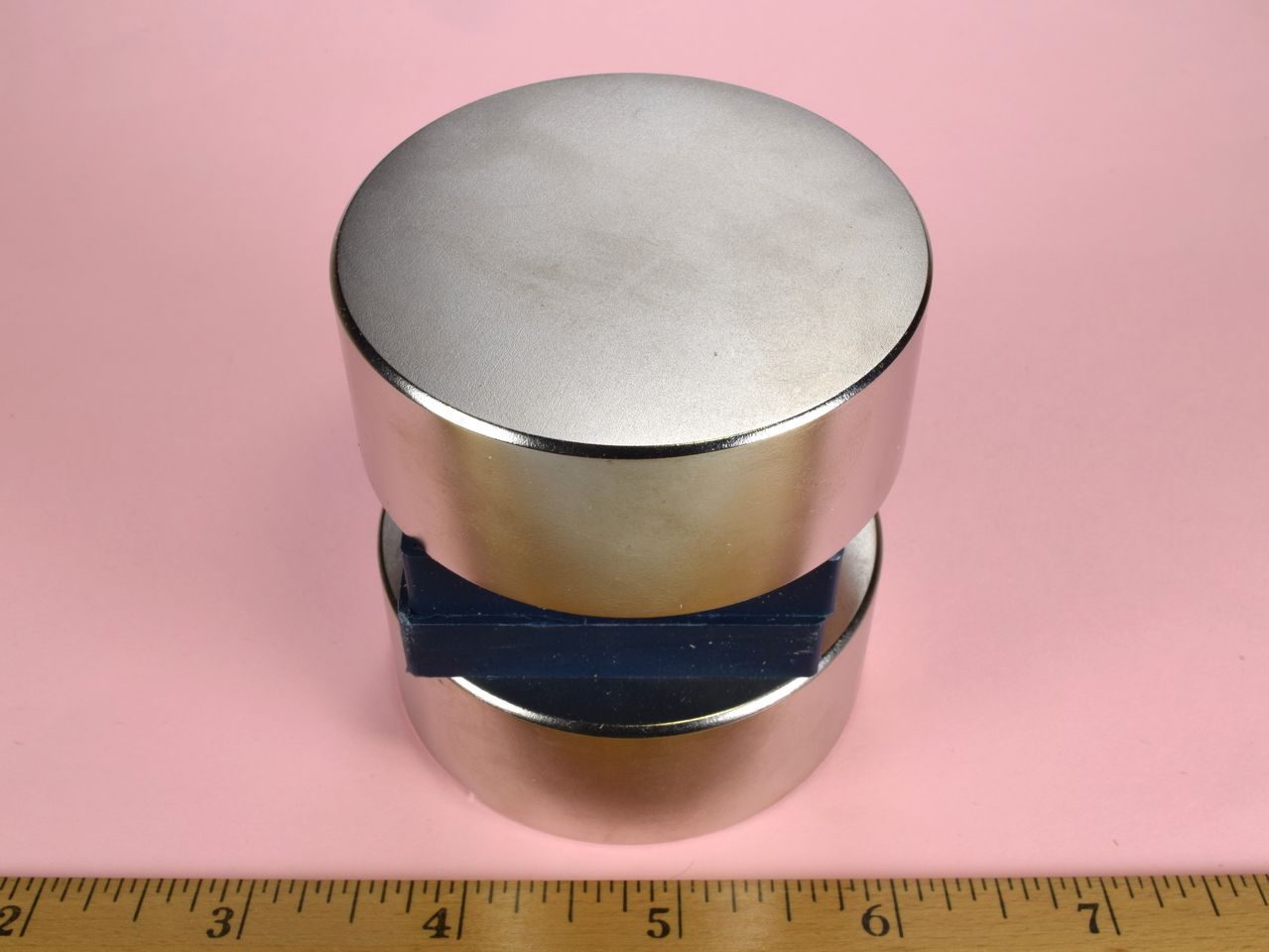

DY8X0-N52 - Neodymium Disc Magnet

dy8x0-n52-neodymium-disc-magnet--thumbnail-2

$162.11

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$162.11	1
$158.51	2	2%
$154.91	3-4	4%
$151.30	5-6	7%
$147.70	7-9	9%
$144.10	10-14	11%
$140.50	15-19	13%
$136.89	20-24	16%
$133.29	25-49	18%
$129.69	50-99	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 2 1/2" dia. x 1" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 21.3 oz. (603.4 g)
Pull Force, Case 1: 376.4 lbs
Pull Force, Case 2: 376.4 lbs
Surface Field: 4623 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These discs are VERY STRONG and should be handled only by persons experienced in the handling of strong magnets. They can pinch very hard and potentially cause painful injuries if they are not handled with the greatest of care and respect. Always use extreme caution when working with magnets of this size.

Please be sure to read our Neodymium Magnet Safety Page before purchasing these discs.

GROUND SHIPPING ONLY on this item.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
