Description
Downloads

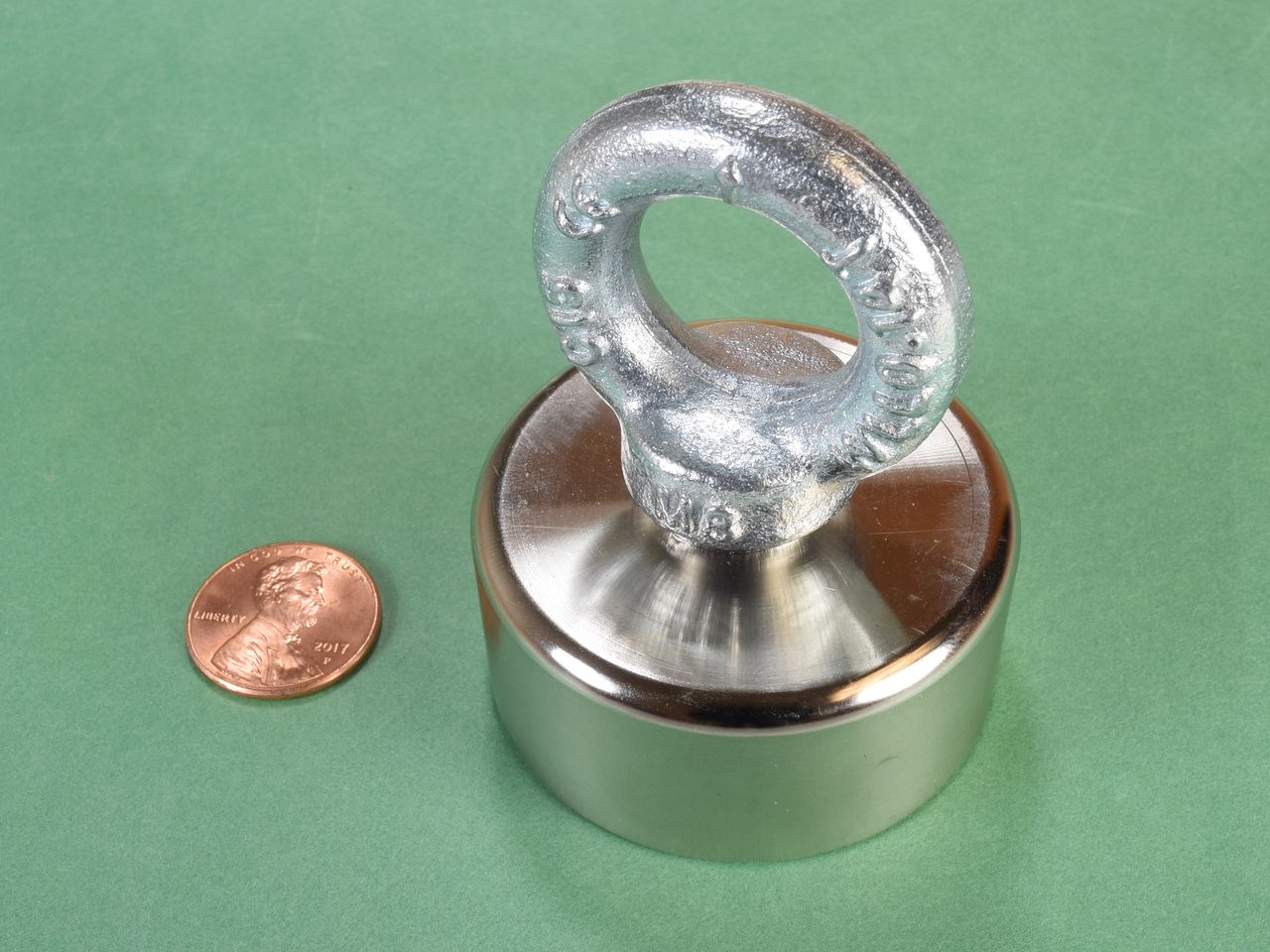

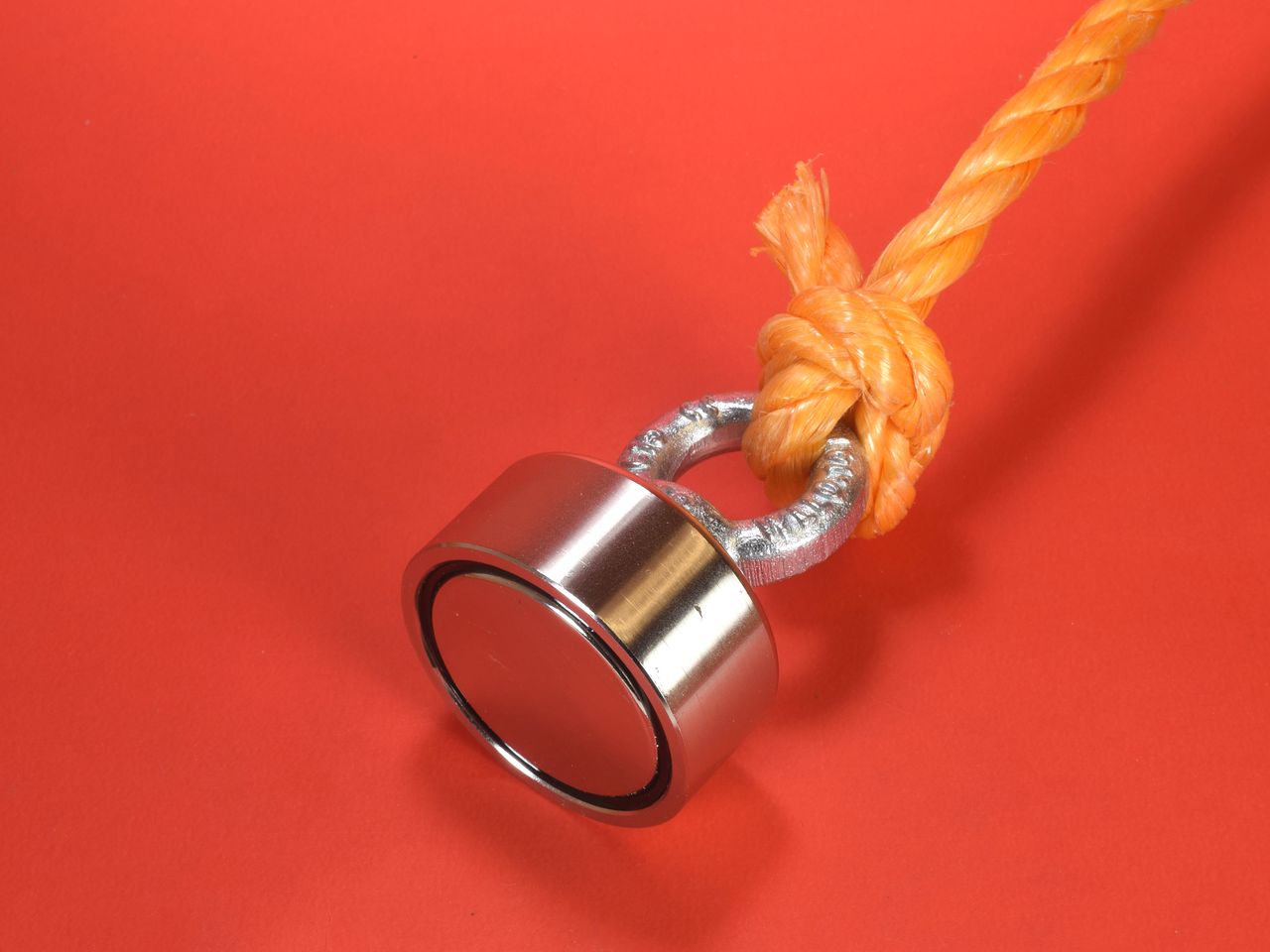

- Dimensions:
D=48mm (1.89")
H=63mm (2.48")
M=8mm (0.32") (M8 Coarse threaded hook) - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 13.26 oz
- Pull Force: 230 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
![]() | Click this link to download a PDF Specification Sheet. |
![]() | Click this link to download a PDF drawing of this product. |
![]() | Click this link to download a Certificate of Compliance for this product. |
![]() | Click this link to download a RoHS Statement of Compliance for this product. |
![]() | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() | Click this link to download a Certificate of Origin for this product. |
![]() | Click this link to download a .STEP file (3D model). |
![]() | Click this link to download an .IGS file (3D model). |
