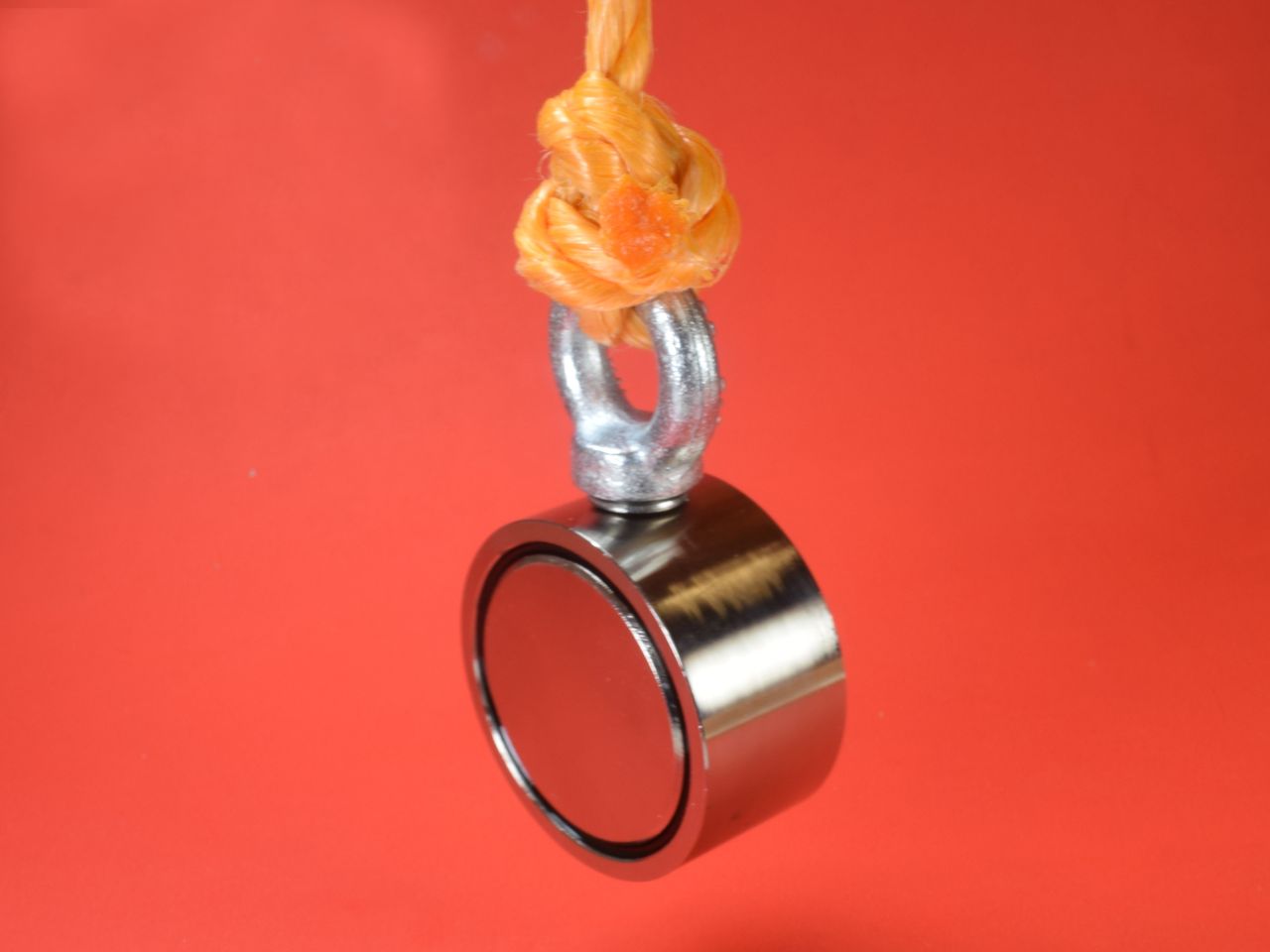

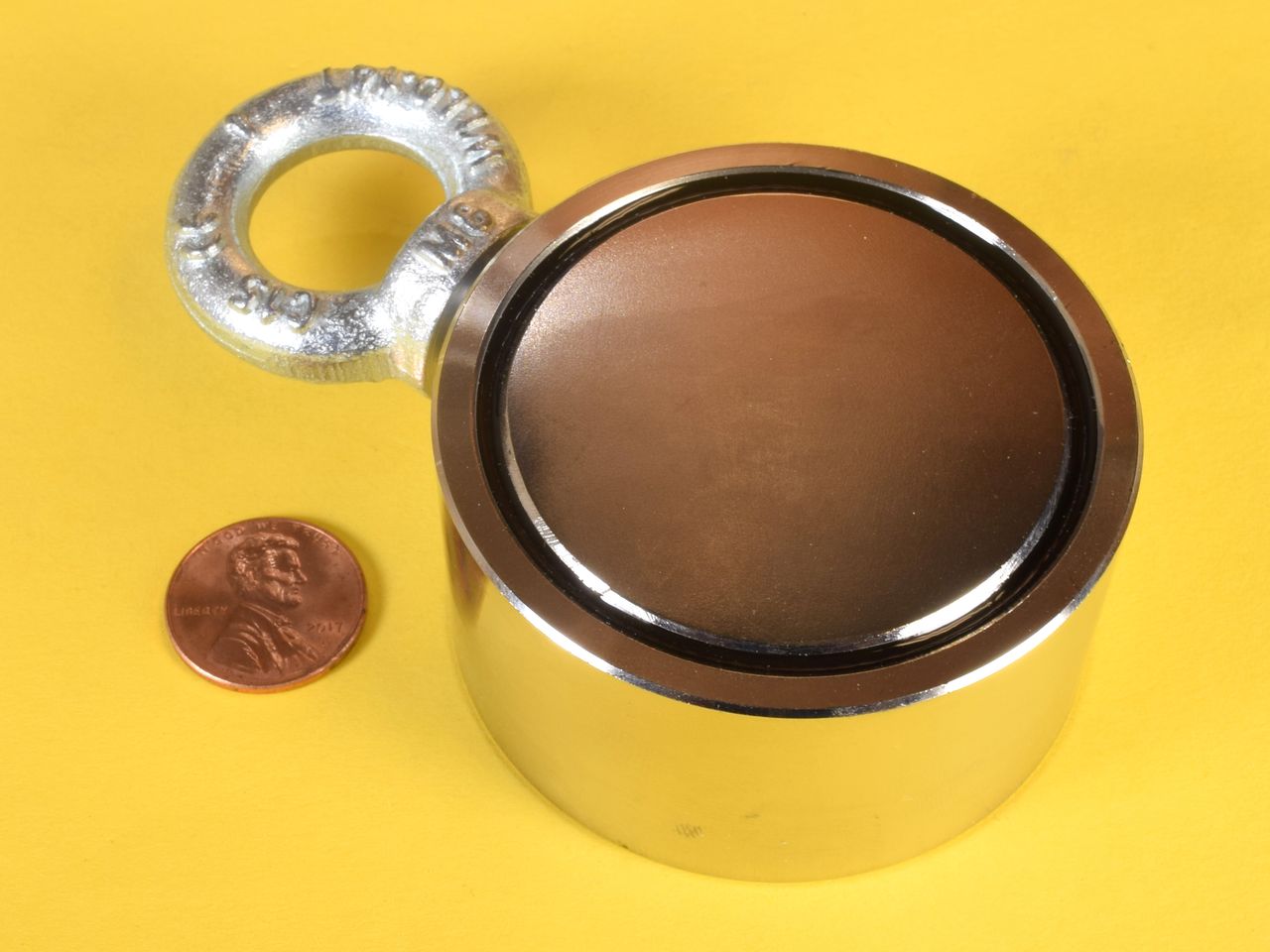

- Dimensions:
D=60mm (2.362")
H=30mm (1.181")
M=8mm (0.32") (M8 Coarse threaded hook) - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 25.57 oz
- Pull Force: 400 lbs (on each side)
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
![]() | Click this link to download a PDF Specification Sheet. |
![]() | Click this link to download a PDF drawing of this product. |
![]() | Click this link to download a Certificate of Compliance for this product. |
![]() | Click this link to download a RoHS Statement of Compliance for this product. |
![]() | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() | Click this link to download a Certificate of Origin for this product. |
![]() | Click this link to download a .STEP file (3D model). |
![]() | Click this link to download an .IGS file (3D model). |
