MM-A-48 - Neodymium Countersunk Mounting Magnet

mm-a-48-neodymium-countersunk-mounting-magnet--thumbnail-2

$16.58

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$16.58	1
$16.21	2	2%
$15.84	3-4	4%
$15.48	5-9	7%
$15.11	10-24	9%
$14.74	25-49	11%
$14.37	50-99	13%
$14.01	100-249	16%
$13.64	250-499	18%
$13.27	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

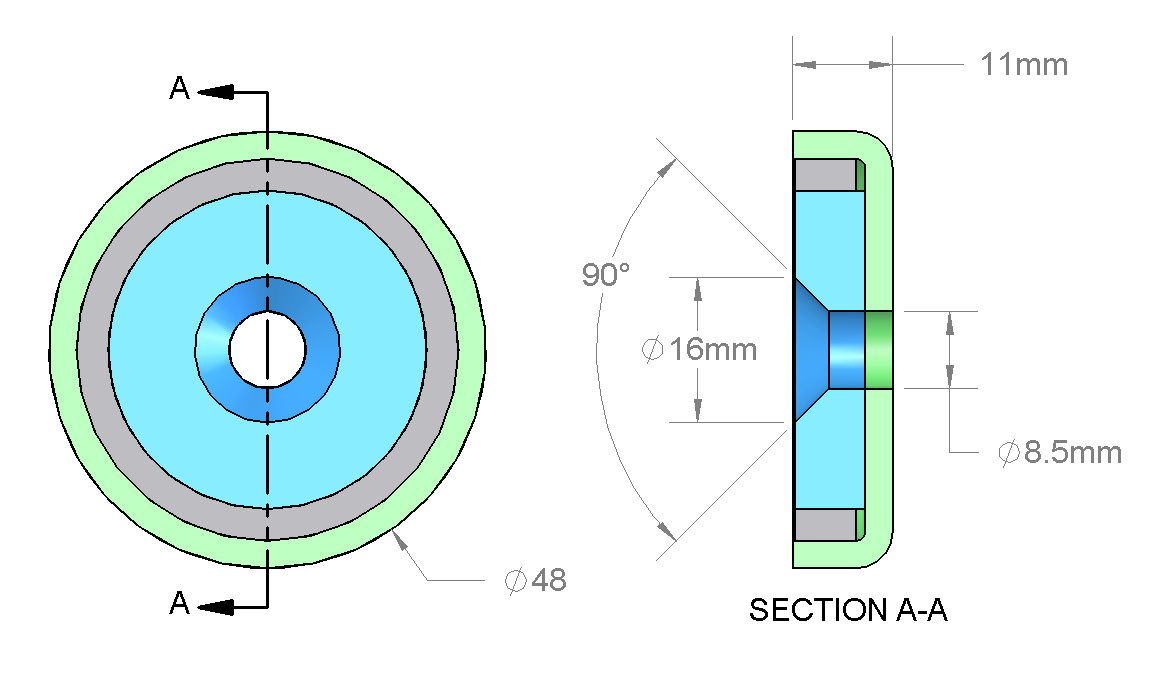

Dimensions:
    D=48mm (1.89")
    d1=8.5mm (0.33") (Sized for M8 screw)
    d2=16mm (0.63") (Tapered countersunk hole)
    h=11mm (0.43")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 4.12 oz. (117 g)
Pull Force: 150.0 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

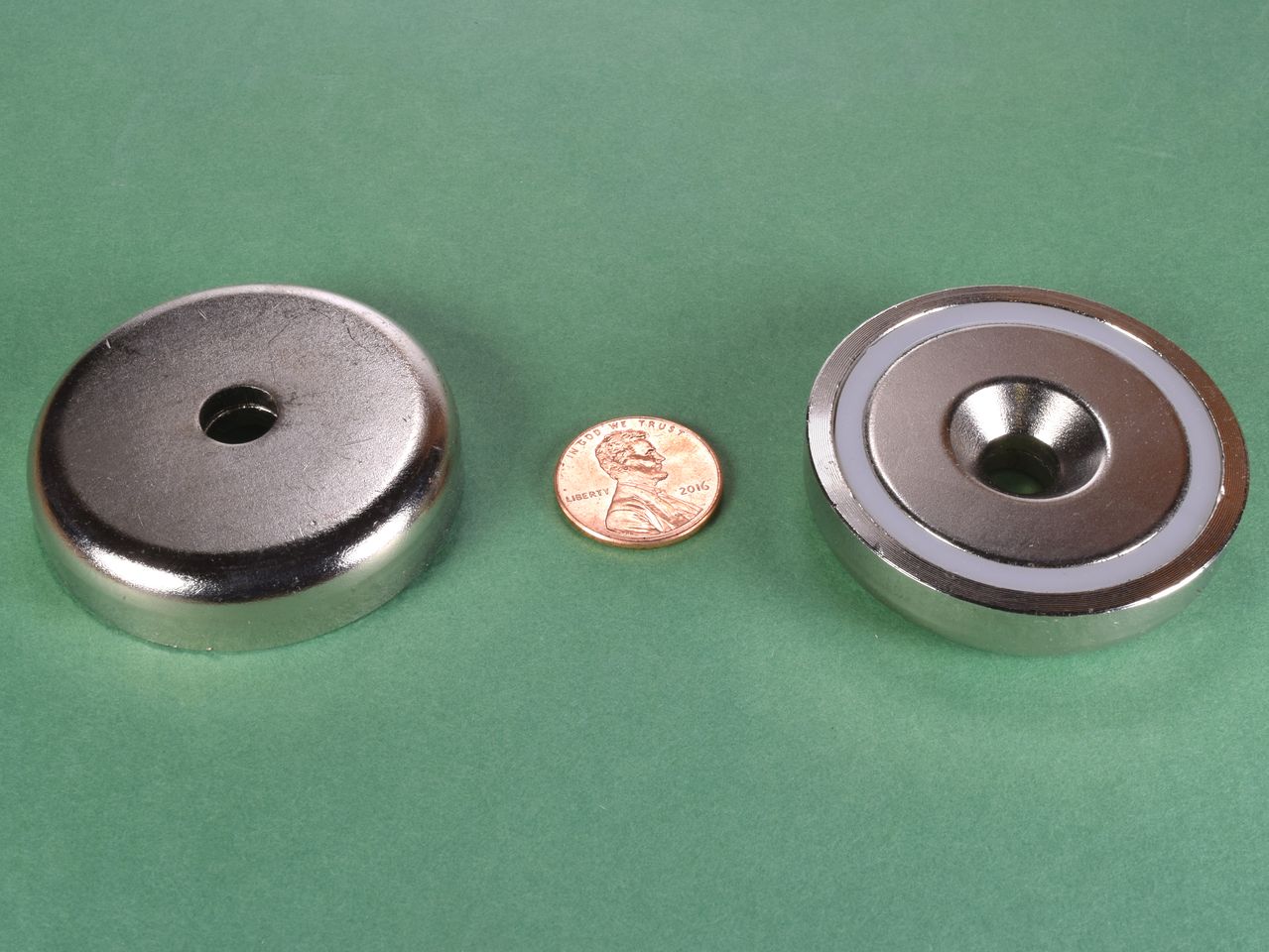

The MM-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
