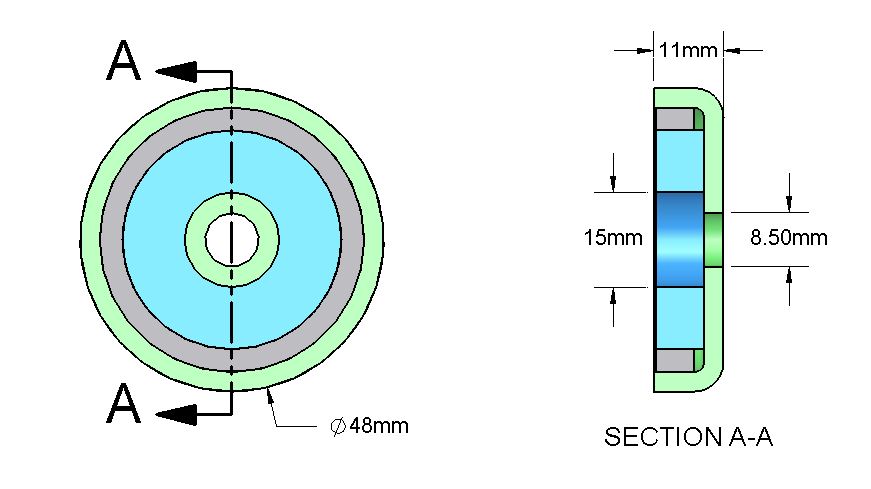

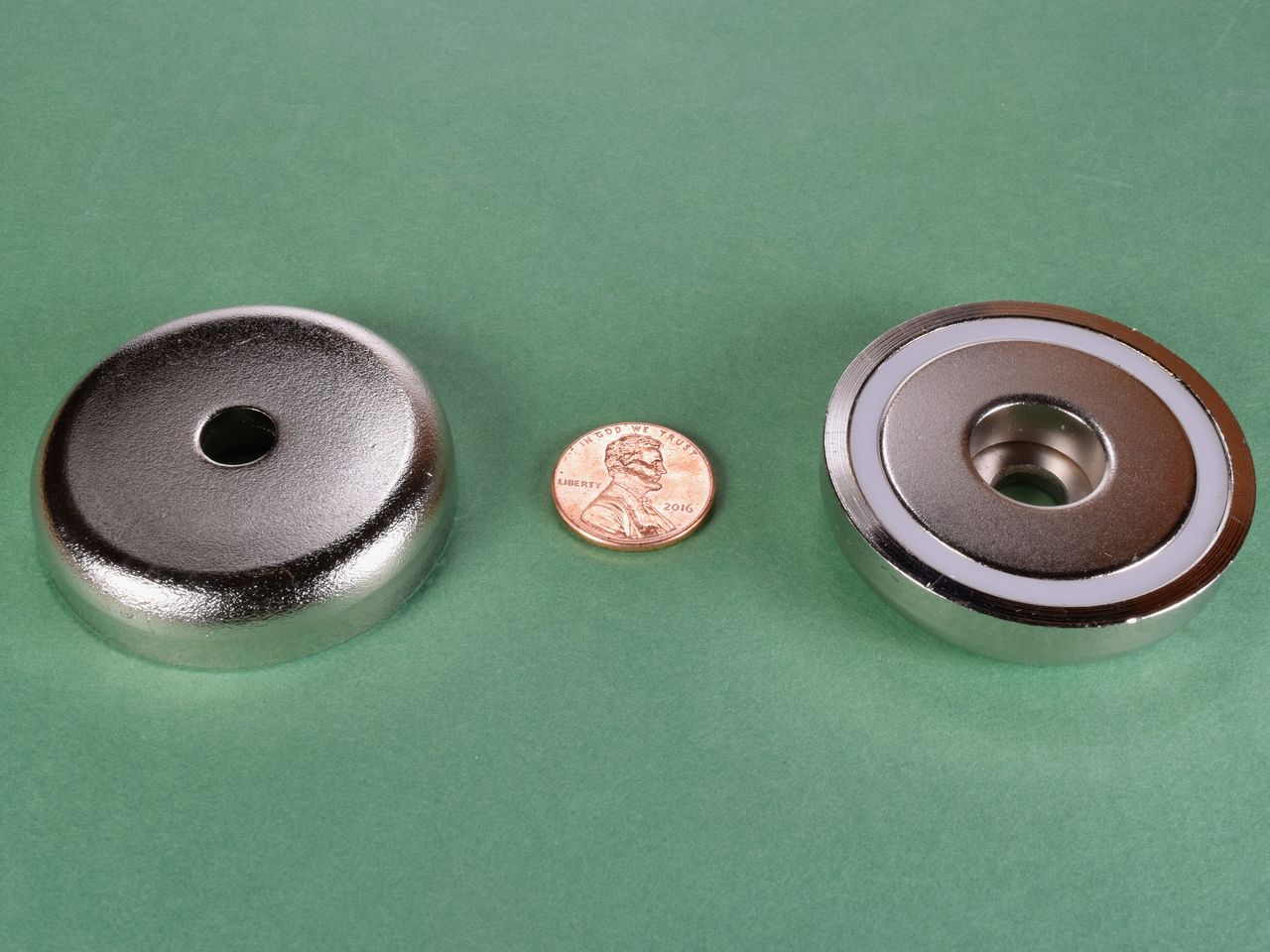

- Dimensions:
D=48mm (1.89")
d1=8.5mm (0.33") (Sized for M8 screw)
d2=15mm (0.59") (Straight counterbored hole)
h=11mm (0.43") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 3.93 oz. (111 g)
- Pull Force: 139.0 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
