MM-C-10 - Neodymium Male Stud Mounting Magnet

mm-c-10-neodymium-male-stud-mounting-magnet

mm-c-10-neodymium-male-stud-mounting-magnet--thumbnail-1

mm-c-10-neodymium-male-stud-mounting-magnet--thumbnail-2

$1.58

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.58	1-9
$1.54	10-24	3%
$1.51	25-49	4%
$1.47	50-99	7%
$1.44	100-249	9%
$1.40	250-499	11%
$1.37	500-999	13%
$1.33	1000-2499	16%
$1.30	2500-4999	18%
$1.26	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

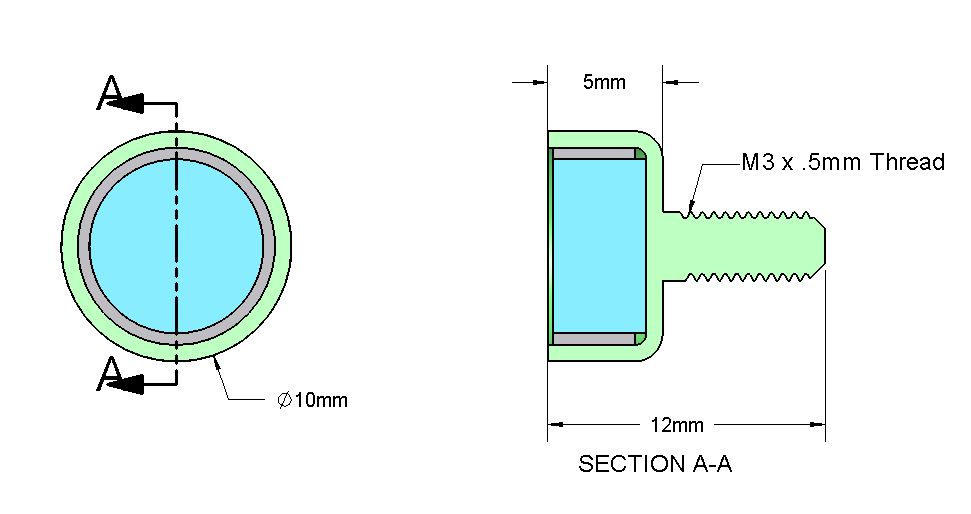

Dimensions:
    D=10mm (0.39")
    M=3mm (0.12") (M3 Coarse Male threaded stud)
    H=12mm (0.47")
    h=5mm (0.20")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.12 oz. (3.40 g)
Pull Force: 4.9 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

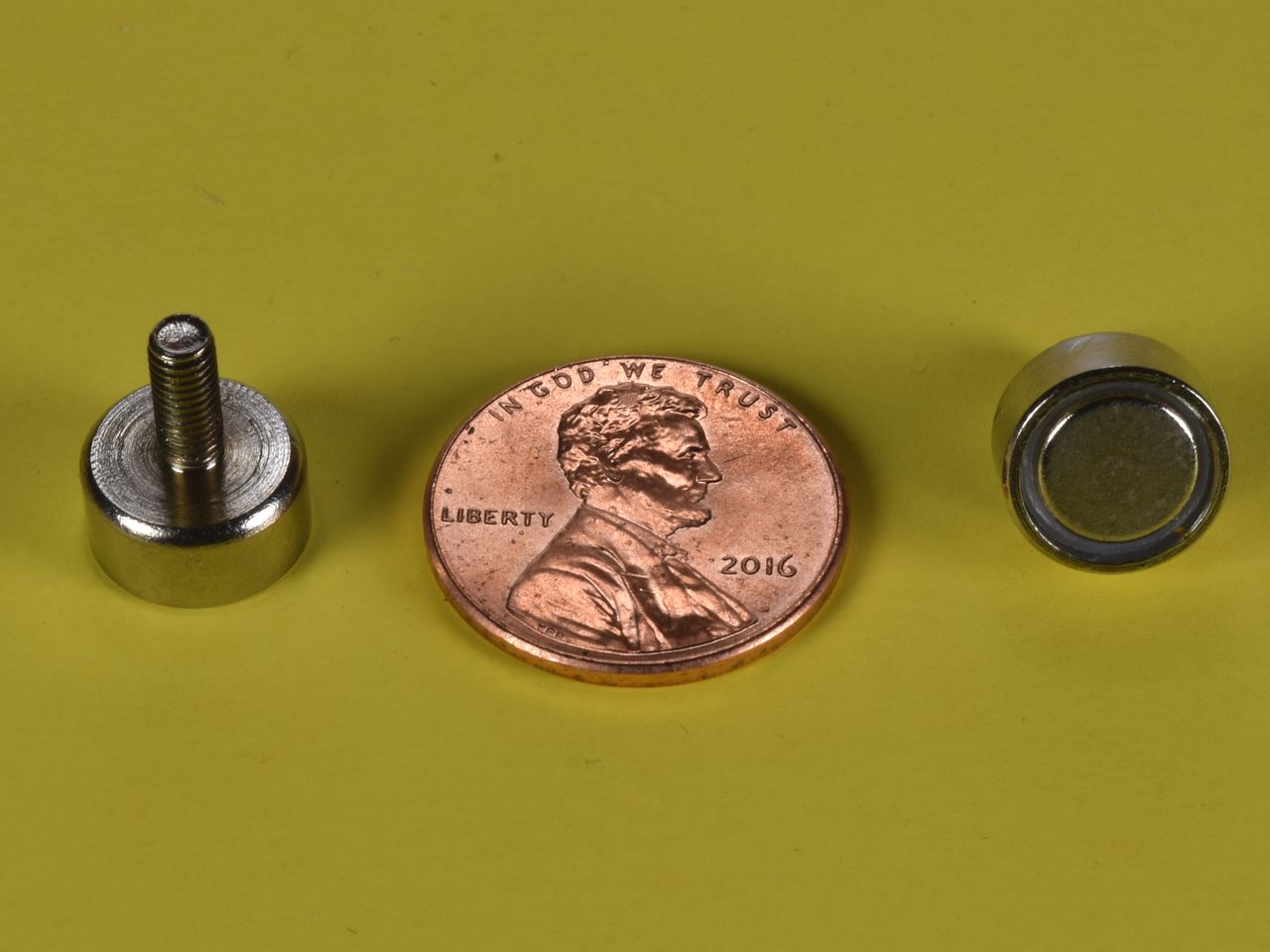

The MM-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
