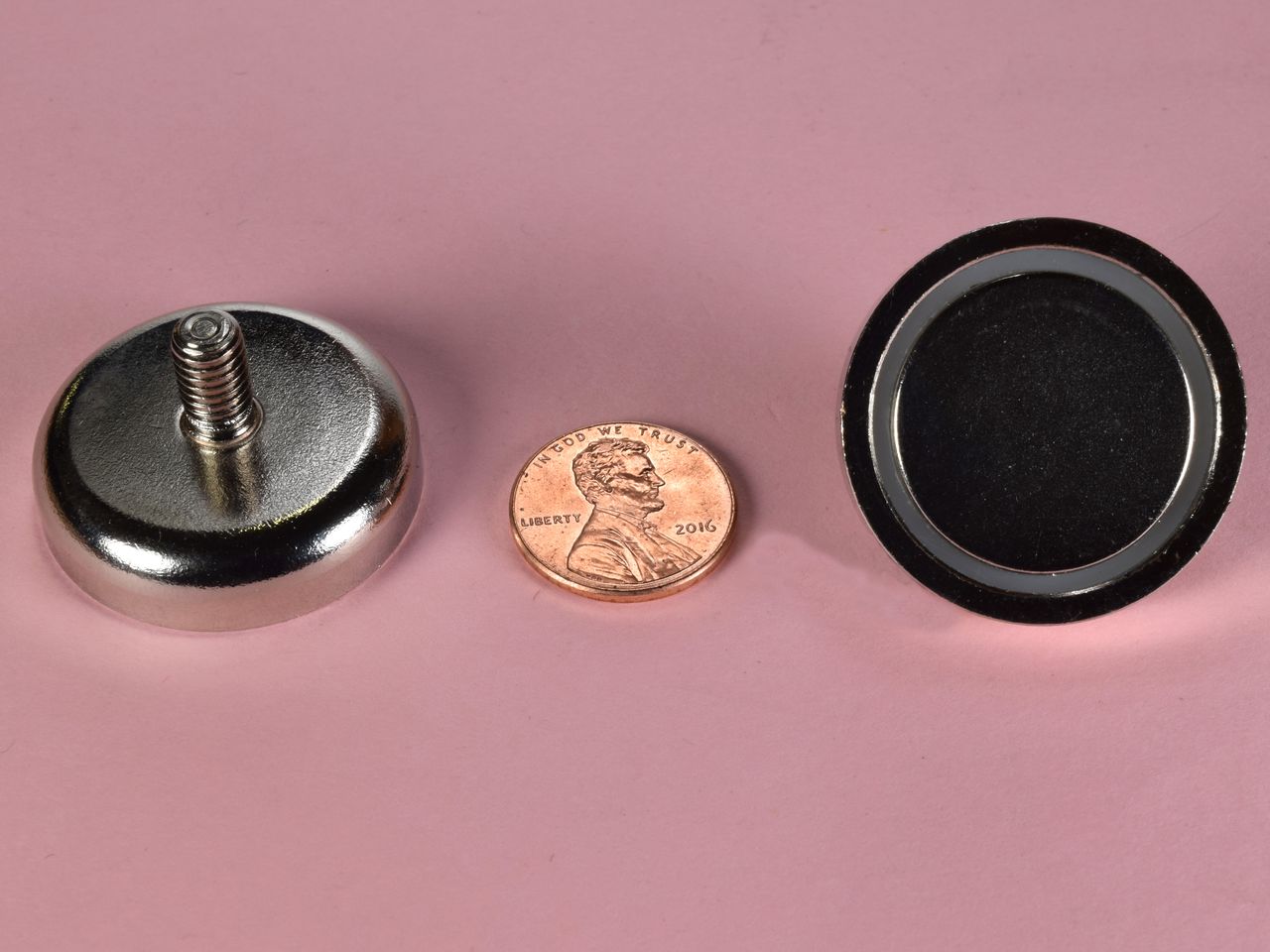

MM-C-32 - Neodymium Male Stud Mounting Magnet

mm-c-32-neodymium-male-stud-mounting-magnet

mm-c-32-neodymium-male-stud-mounting-magnet--thumbnail-1

mm-c-32-neodymium-male-stud-mounting-magnet--thumbnail-2

$6.37

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$6.37	1
$6.23	2-4	2%
$6.09	5-9	4%
$5.95	10-24	7%
$5.81	25-49	9%
$5.66	50-99	11%
$5.52	100-249	13%
$5.38	250-499	16%
$5.24	500-999	18%
$5.10	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions:
    D=32mm (1.26")
    M=6mm (0.24") (M6 Coarse Male threaded stud)
    H=18mm (0.71")
    h=8mm (0.32")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.53 oz. (43.4 g)
Pull Force: 75.0 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
