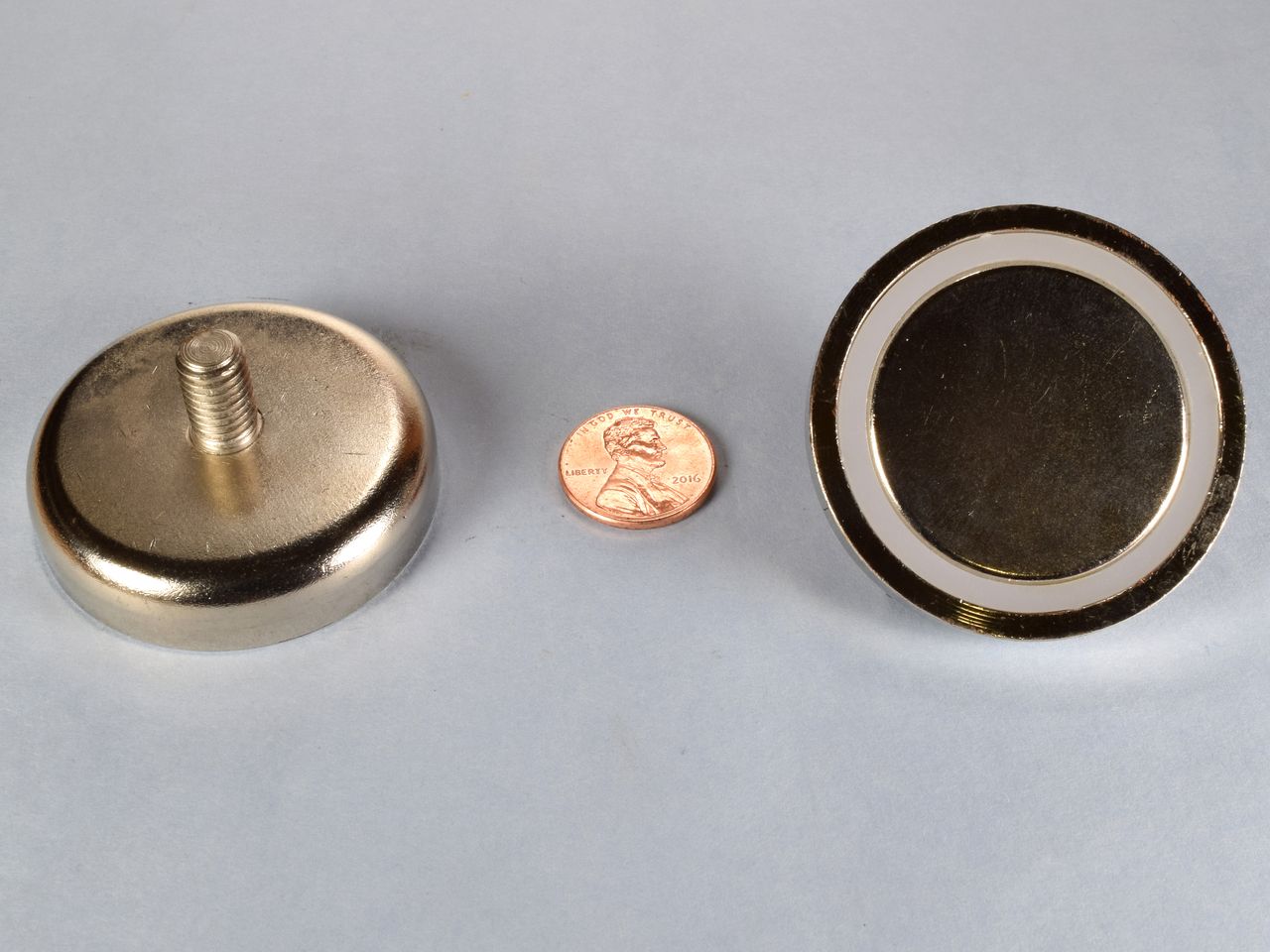

MM-C-48 - Neodymium Male Stud Mounting Magnet

mm-c-48-neodymium-male-stud-mounting-magnet

mm-c-48-neodymium-male-stud-mounting-magnet--thumbnail-1

mm-c-48-neodymium-male-stud-mounting-magnet--thumbnail-2

$16.78

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$16.78	1
$16.41	2	2%
$16.04	3-4	4%
$15.66	5-9	7%
$15.29	10-24	9%
$14.92	25-49	11%
$14.55	50-99	13%
$14.17	100-249	16%
$13.80	250-499	18%
$13.43	500-999	20%
$13.13	1000-2499	22%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

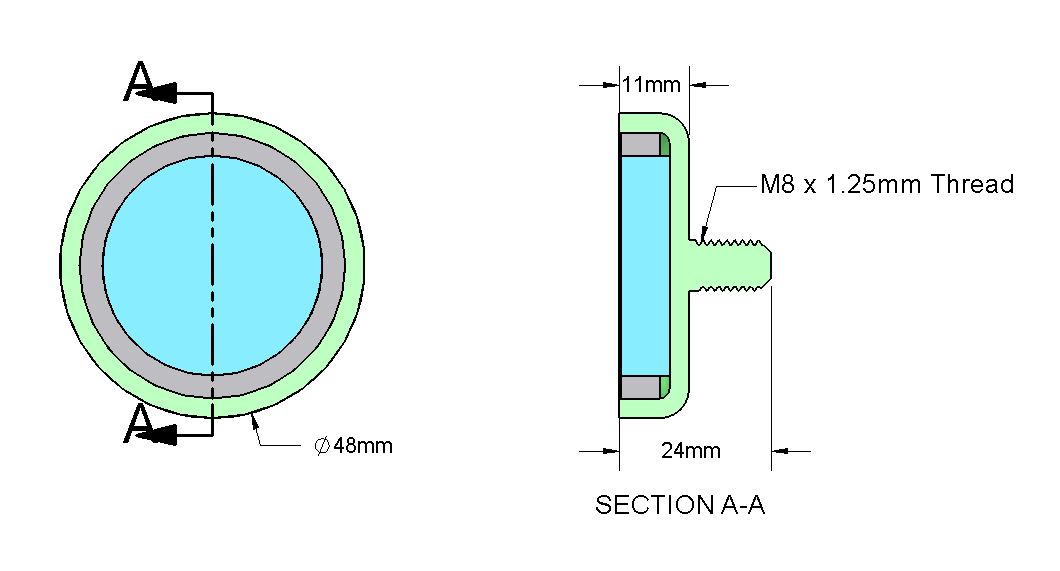

Dimensions:
    D=48mm (1.89")
    M=8mm (0.31") (M8 Coarse Male threaded stud)
    H=24mm (0.94")
    h=11mm (0.43")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 4.59 oz. (130 g)
Pull Force: 179.0 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
