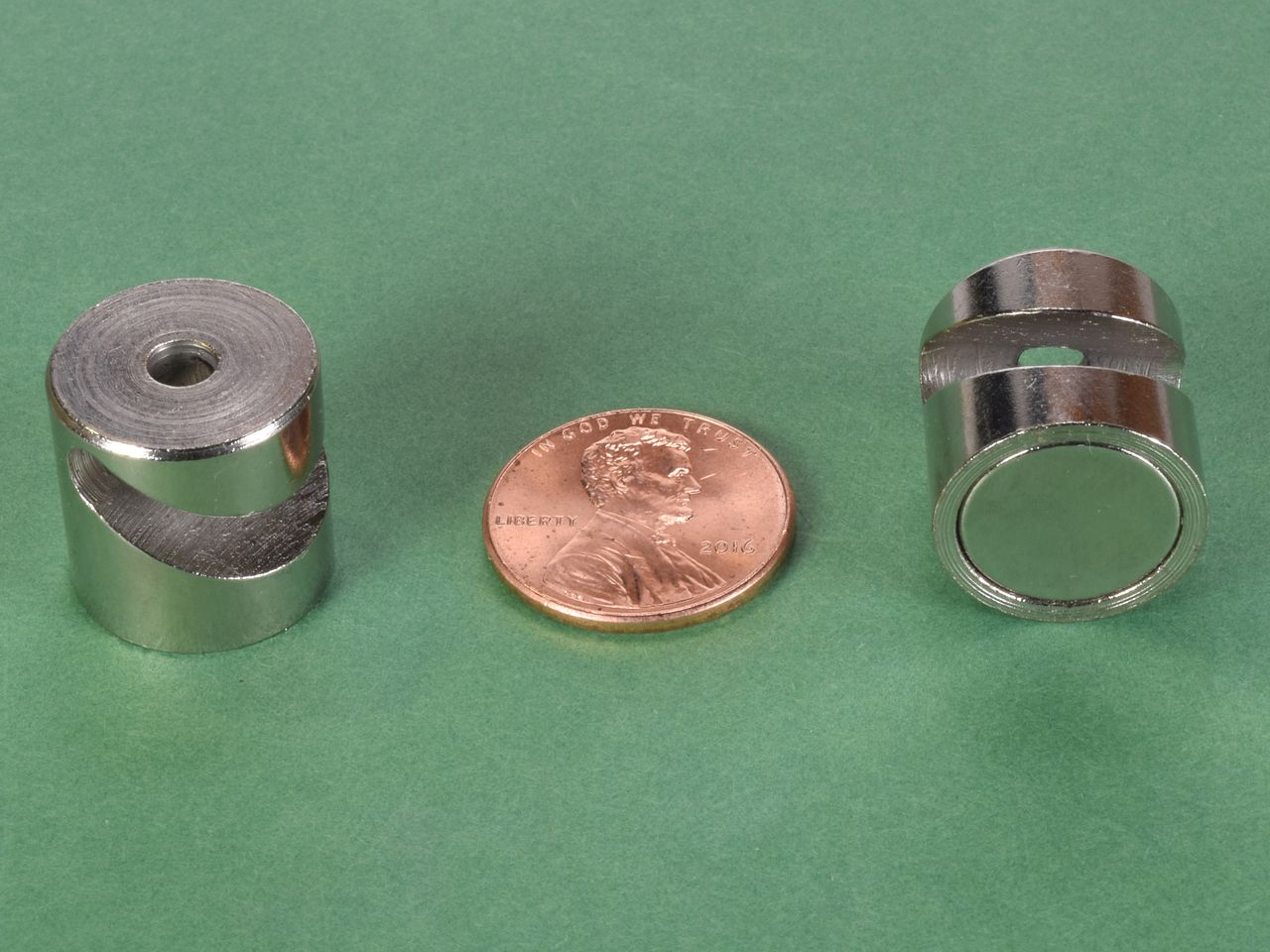

MM-F-16 - Neodymium Slotted Hole Mounting Magnet

• Dimensions: 16mm dia. x 16mm thick overall
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.70 oz. (20 g)
• Pull Force: 15.6 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These great hooks are very versatile. They have an angled slot that allows them to hang things from vertical as well as horizontal surfaces. They also have a center hole that can be used to run a string through.

These are a great addition to any home or office. They are an excellent option for hanging things from the rails of a drop ceiling or any other steel surface.

Surface	Supported Load [lb]	Comments
Thick (1") steel plate, cold rolled steel	3-3.5	Good pull
Steel door, Painted	6-7	Strong pull
Refrigerator (painted steel)	2	Good pull
Filing Cabinet	6.5	Strong pull
