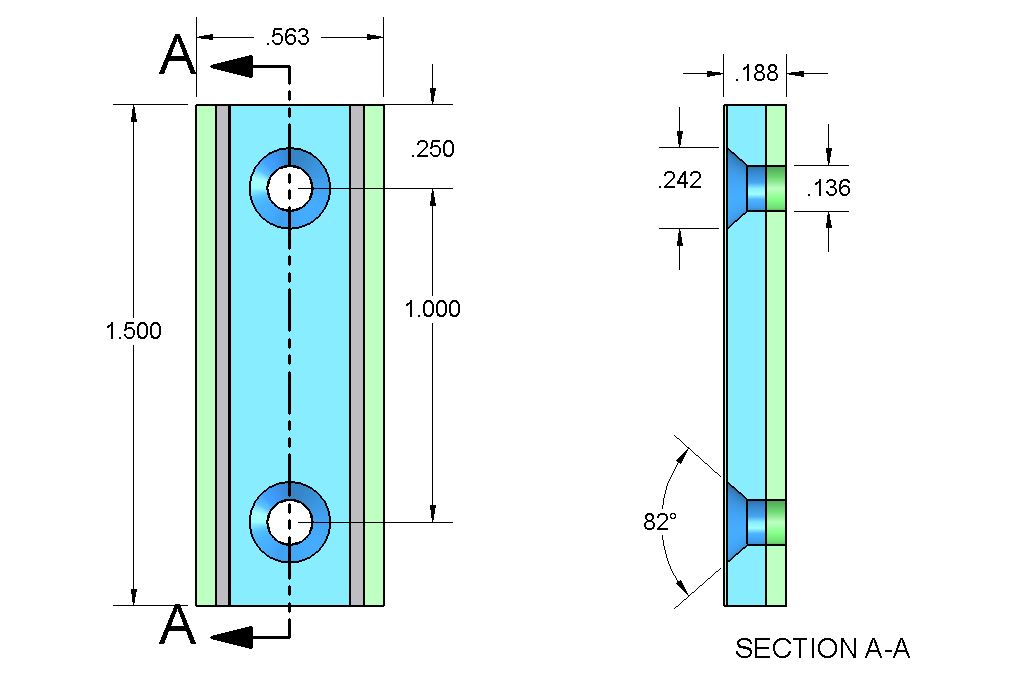

- Dimensions:
Length= 1 1/2" (1.5")
Width= 9/16" (0.563")
Height= 3/16" (0.188")
Holes sized for #4 flat-head screws - Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 0.63 oz. (17.92 g)
- Pull Force: 26.75 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

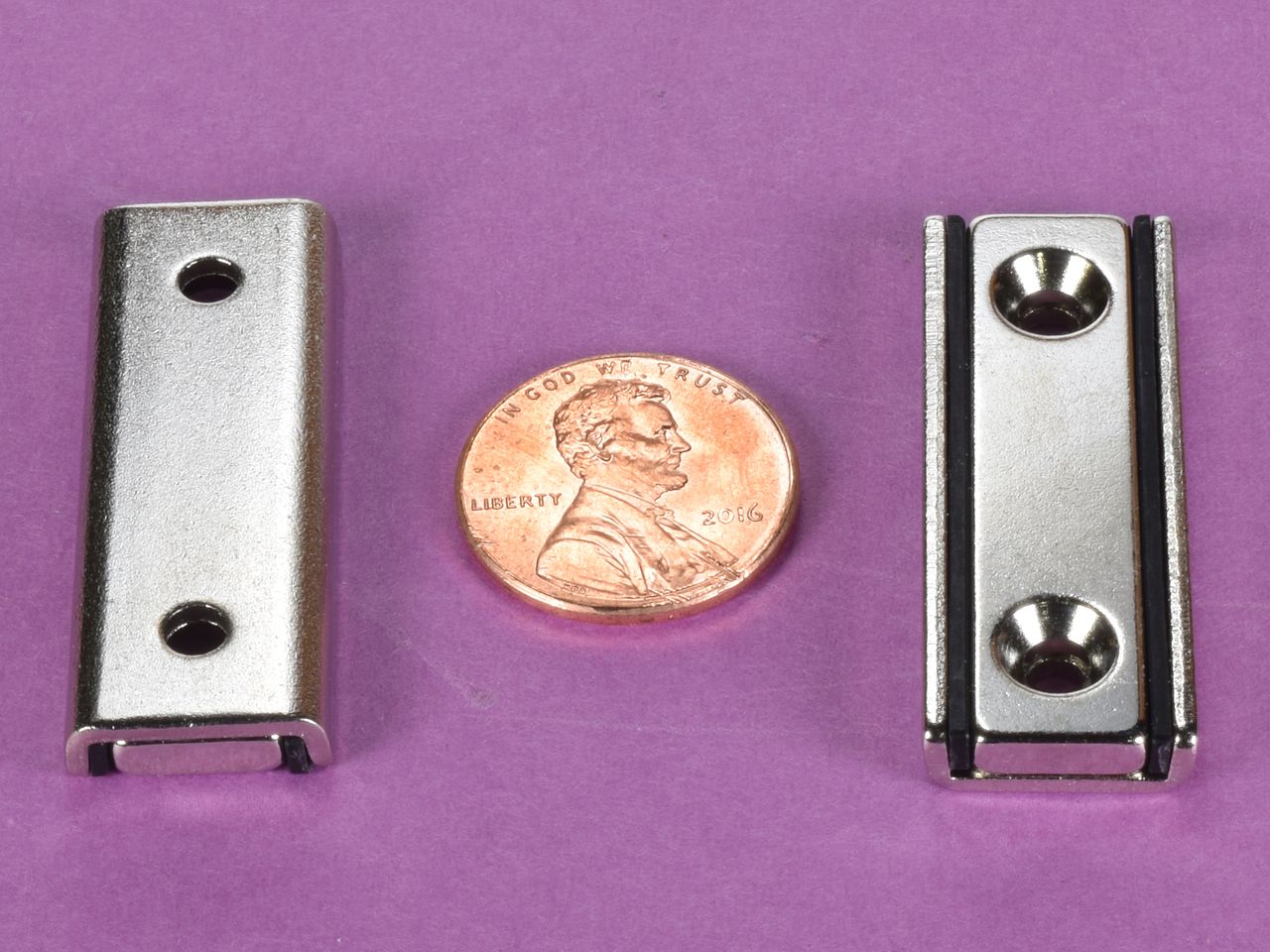

This magnet has two tapered holes to recess screw heads. It can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
