- Dimensions:
Length= 1 3/4" (1.75")
Width= 3/4" (0.75")
Height= 5/16" (0.313")
Holes sized for #6 flat-head screws - Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 1.56 oz. (44.24 g)
- Pull Force: 54.14 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

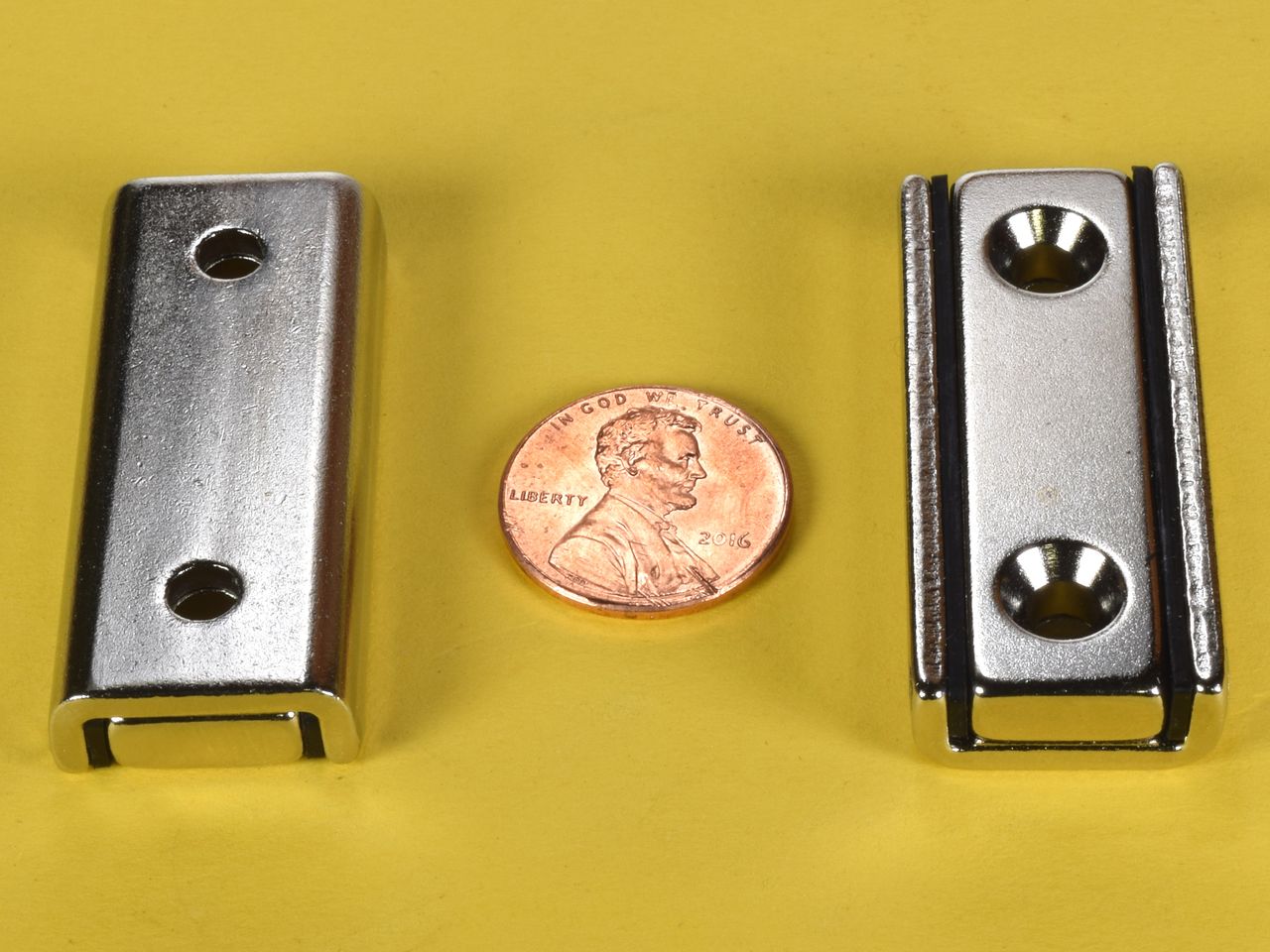

This magnet has two tapered holes to recess screw heads. It can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
![]() | Click this link to download a PDF Specification Sheet. |
![]() | Click this link to download a PDF drawing of this product. |
![]() | Click this link to download a Certificate of Compliance for this product. |
![]() | Click this link to download a RoHS Statement of Compliance for this product. |
![]() | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() | Click this link to download a Certificate of Origin for this product. |
![]() | Click this link for a REACH compliance statement. |
![]() | Click this link to download a .STEP file (3D model). |
![]() | Click this link to download an .IGS file (3D model). |
