MMR-A-Y8 - Neodymium Rectangular Mounting Magnet

mmr-a-y8-neodymium-rectangular-mounting-magnet--thumbnail-2

$13.95

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$13.95	1
$13.64	2	2%
$13.33	3-4	4%
$13.02	5-9	7%
$12.71	10-24	9%
$12.40	25-49	11%
$12.09	50-99	13%
$11.78	100-249	16%
$11.47	250-499	18%
$11.16	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

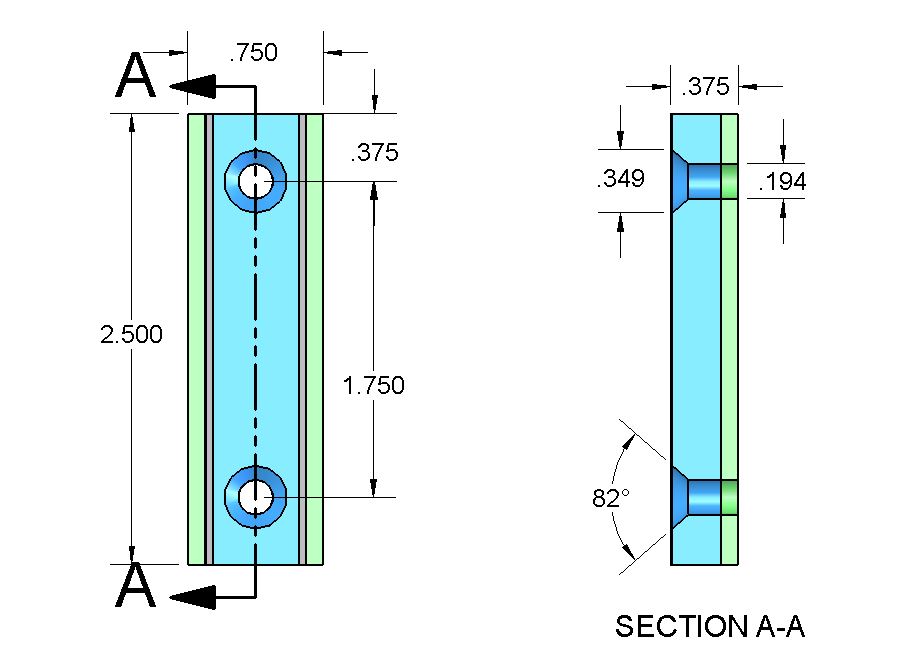

Dimensions:
    Length= 2 1/2" (2.50")
    Width= 3/4" (0.75")
    Height= 3/8" (0.375")
    Holes sized for #8 flat-head screws
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 2.68 oz. (75.85 g)
Pull Force: 84.39 lbs
Brmax: 13,200 Gauss
BHmax: 42 MGOe

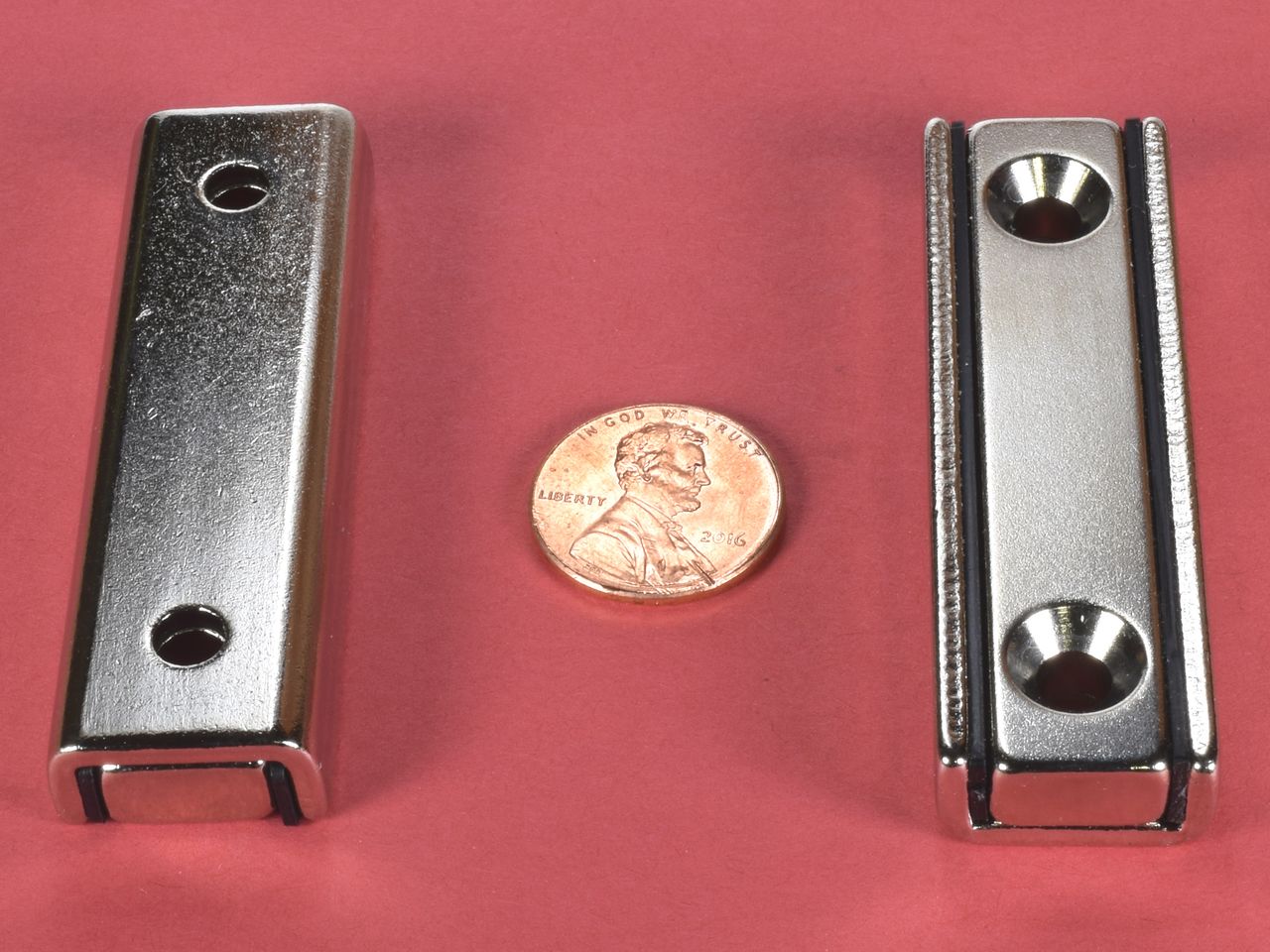

The MMR-A style magnet is a rectangular, or bar shaped Neodymium Mounting Magnet. It is our newest mounting magnet style, only available here!

This magnet has two tapered holes to recess screw heads. It can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
