MMS-B-A - Neodymium Counterbored Mounting Magnet

$2.27

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.27	1-4
$2.22	5-9	2%
$2.17	10-24	4%
$2.12	25-49	7%
$2.07	50-99	9%
$2.02	100-249	11%
$1.97	250-499	13%
$1.92	500-999	15%
$1.87	1000-2499	18%
$1.82	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

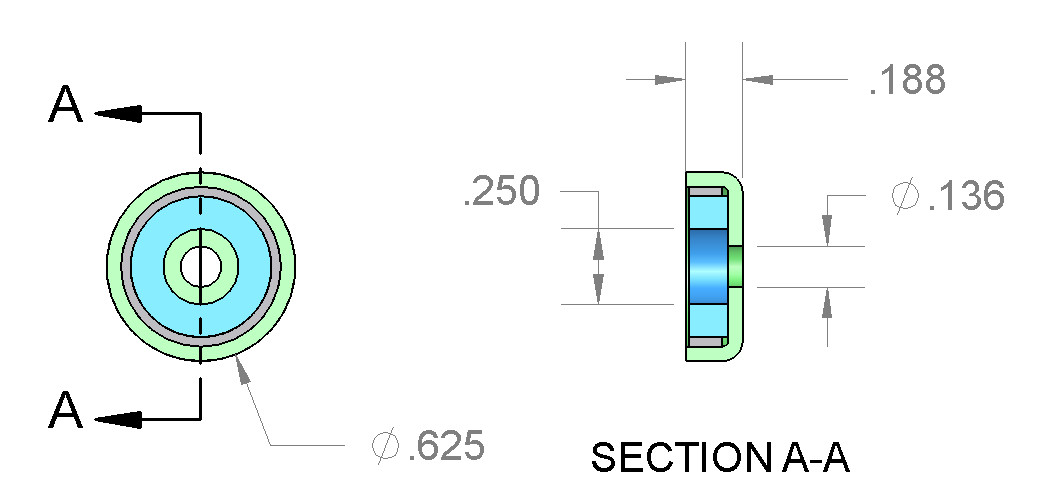

Dimensions:
    Diameter = 5/8" (0.625")
    Hole Size = #4 Screw
    Height = 3/16" (0.187")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.197 oz. (5.58 g)
Pull Force: 10.46 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

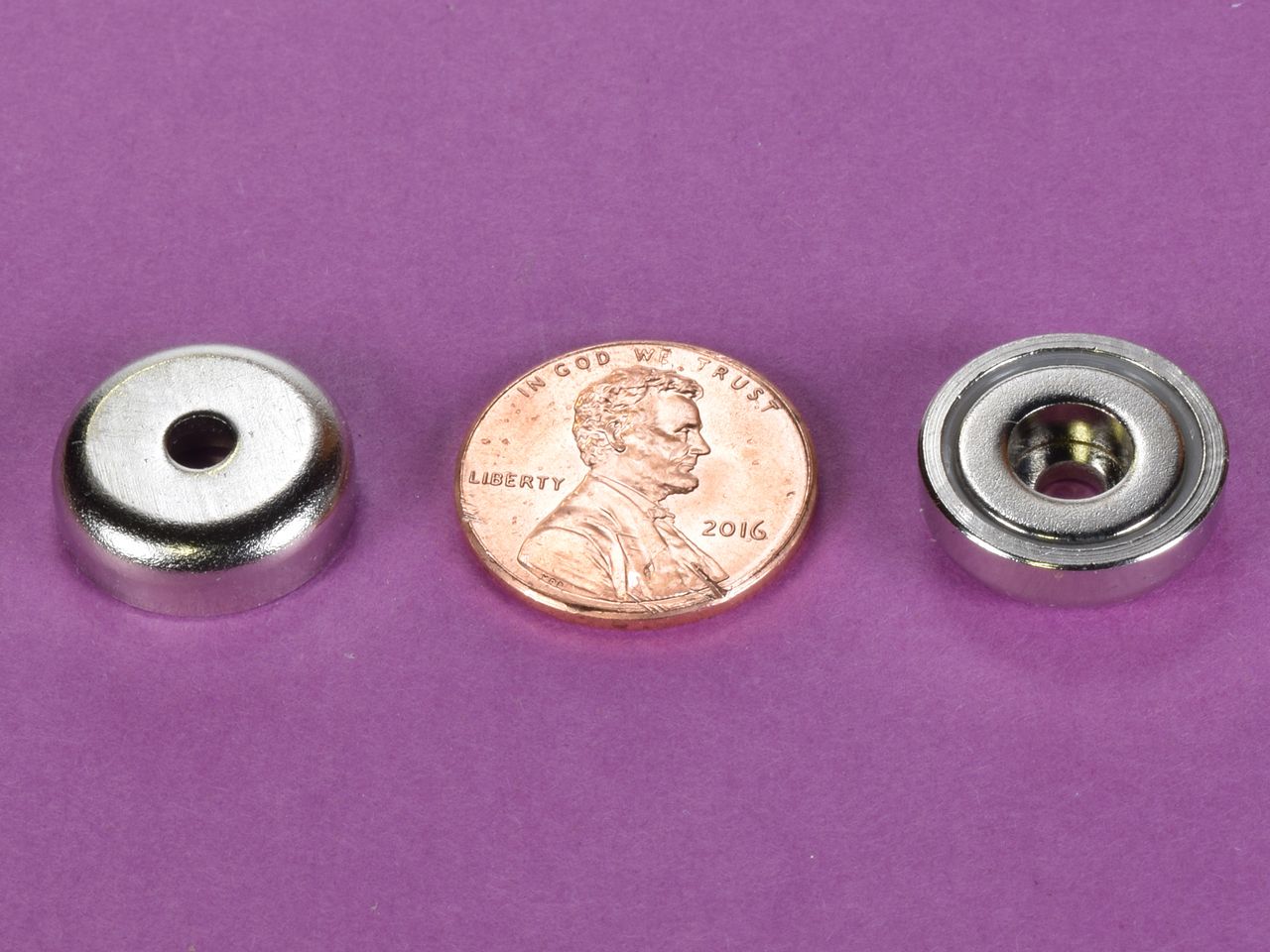

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
