MMS-C-C - Neodymium Male Stud Mounting Magnet

mms-c-c-neodymium-male-stud-mounting-magnet

mms-c-c-neodymium-male-stud-mounting-magnet--thumbnail-1

mms-c-c-neodymium-male-stud-mounting-magnet--thumbnail-2

$2.97

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.97	1-4
$2.90	5-9	2%
$2.84	10-24	4%
$2.77	25-49	7%
$2.70	50-99	9%
$2.64	100-249	11%
$2.57	250-499	13%
$2.50	500-999	16%
$2.44	1000-2499	18%
$2.37	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

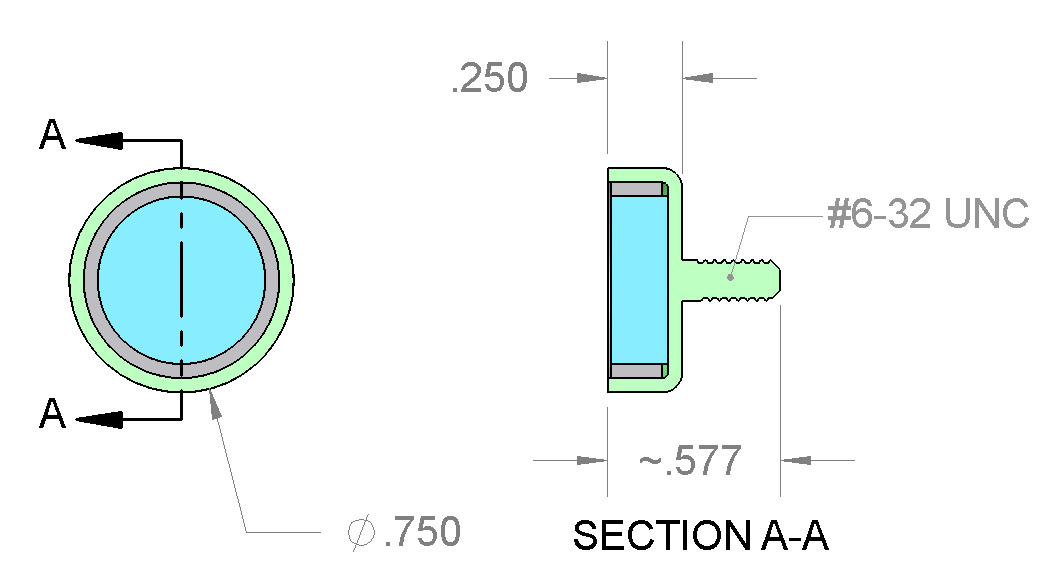

Dimensions:
    Diameter = 3/4" (0.750")
    Threaded Male Stud = #6-32 UNC 2A
    Height = 1/4" (0.250")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.420 oz. (11.92 g)
Pull Force: 22.03 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

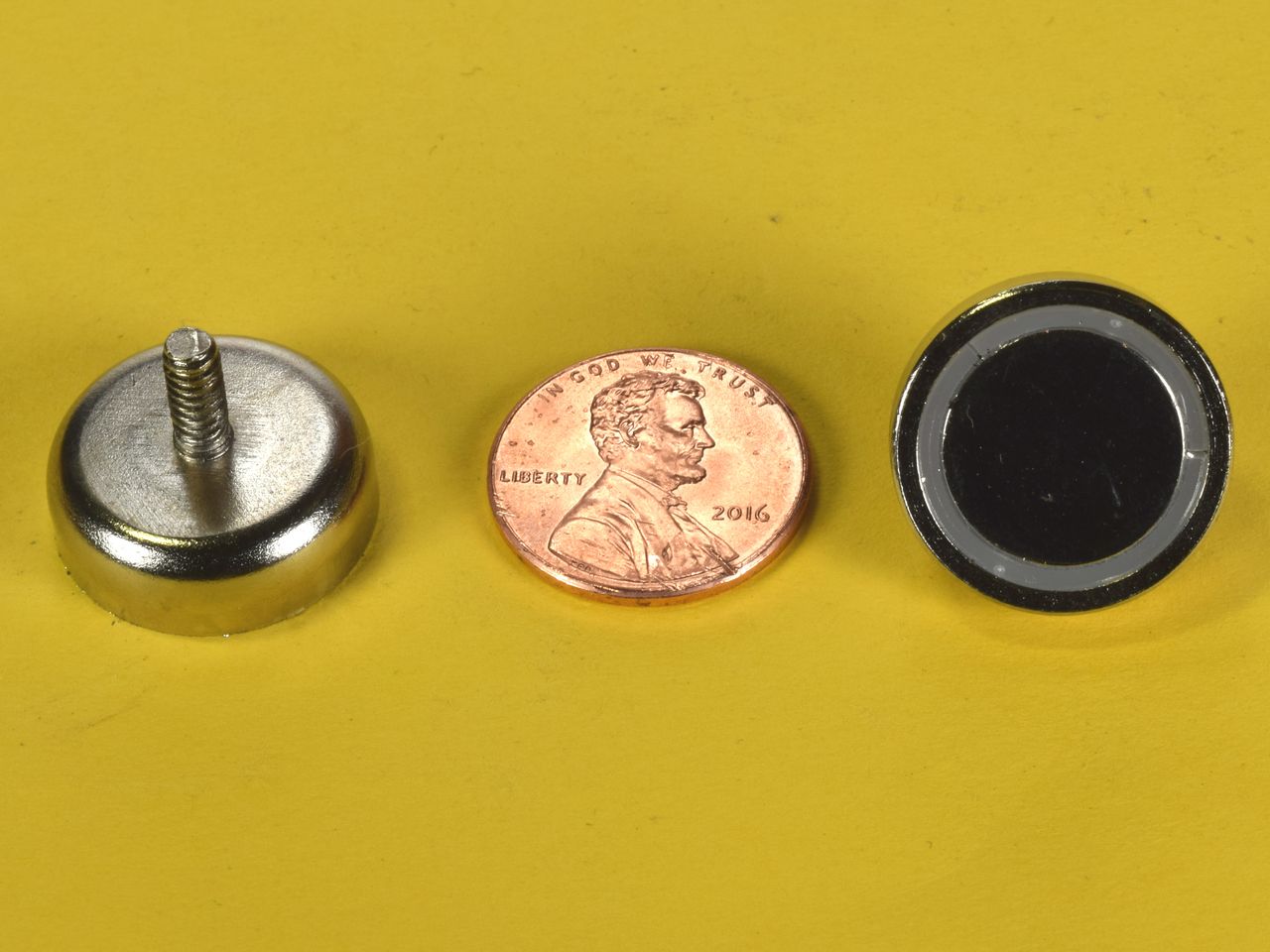

The MMS-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
