MMS-C-X4 - Neodymium Male Stud Mounting Magnet

mms-c-x4-neodymium-male-stud-mounting-magnet

mms-c-x4-neodymium-male-stud-mounting-magnet--thumbnail-1

mms-c-x4-neodymium-male-stud-mounting-magnet--thumbnail-2

$6.28

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$6.28	1
$6.14	2-4	2%
$6.00	5-9	4%
$5.86	10-24	7%
$5.72	25-49	9%
$5.58	50-99	11%
$5.44	100-249	13%
$5.30	250-499	16%
$5.16	500-999	18%
$5.02	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

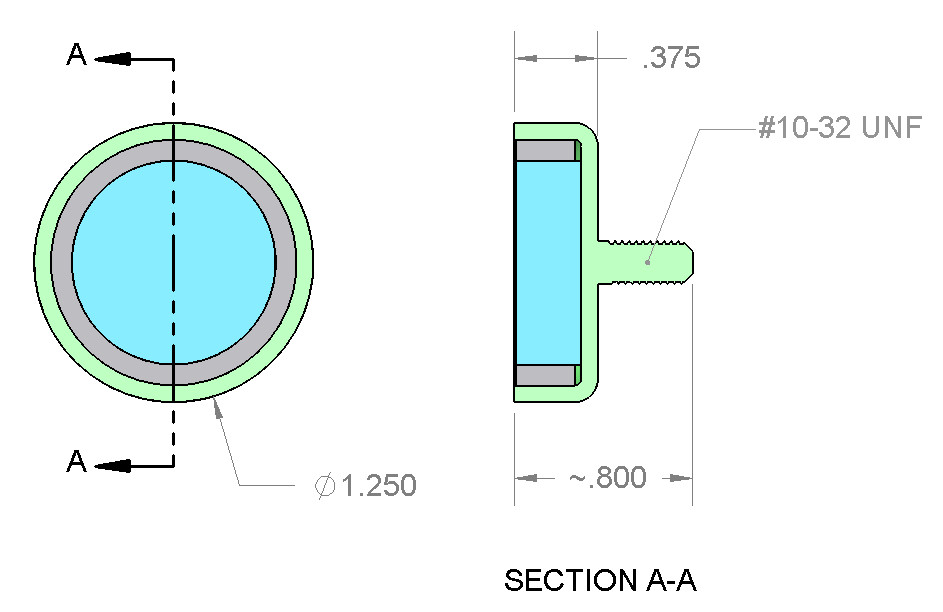

Dimensions:
    Diameter = 1 1/4" (1.25")
    Threaded Male Stud = #10-32 UNF 2A
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.75 oz. (49.60 g)
Pull Force: 61.40 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
