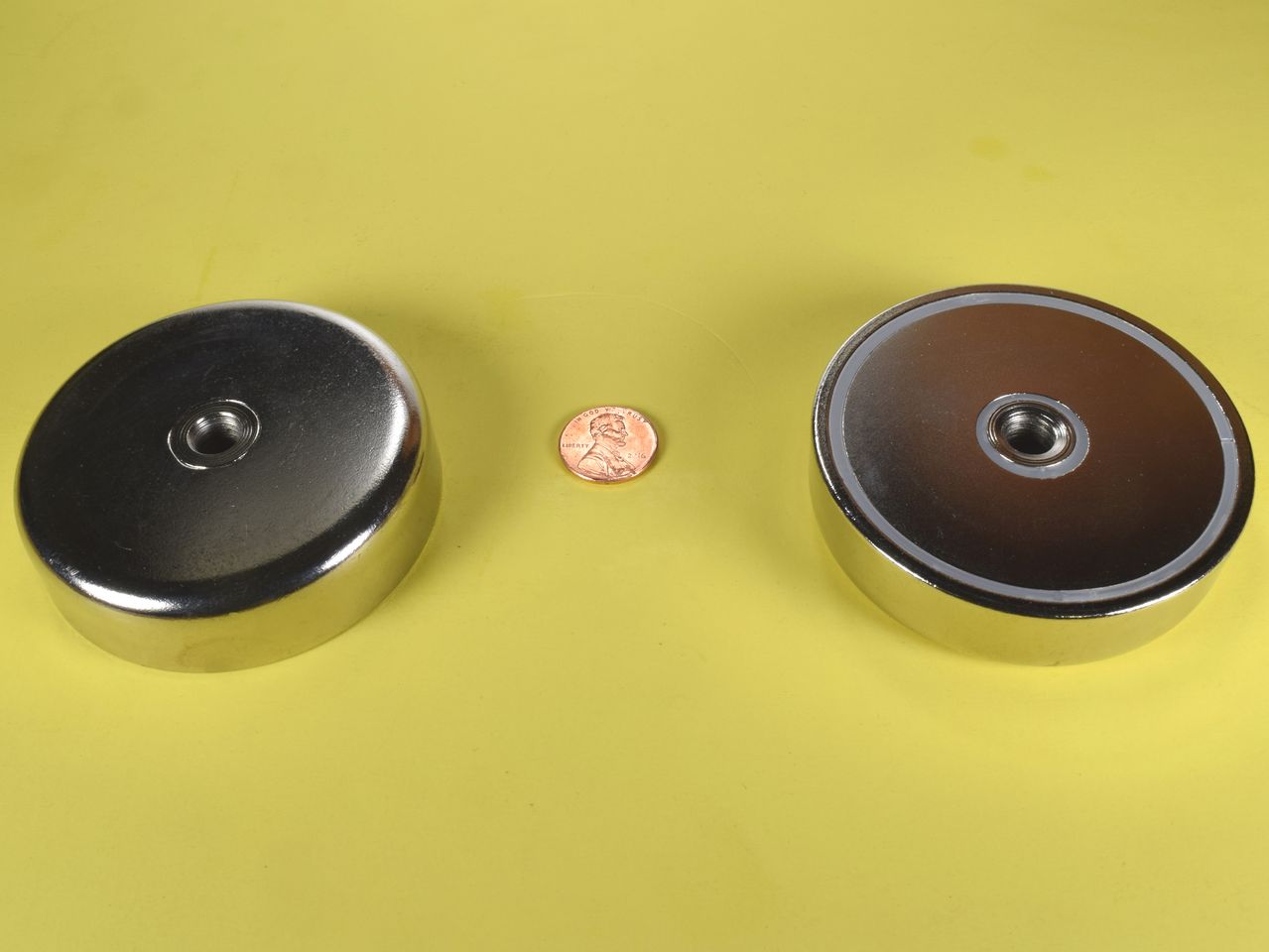

MMS-H-Z0 - Neodymium Internal Thread Mounting Magnet

mms-h-z0-neodymium-internal-thread-mounting-magnet

mms-h-z0-neodymium-internal-thread-mounting-magnet--thumbnail-1

mms-h-z0-neodymium-internal-thread-mounting-magnet--thumbnail-2

$94.62

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$94.62	1
$92.52	2	2%
$90.42	3-4	4%
$88.31	5-9	7%
$86.21	10-14	9%
$84.11	15-19	11%
$82.01	20-24	13%
$79.90	25-49	16%
$77.80	50-99	18%
$75.70	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions:
    Diameter = 3" (3.00")
    Internal Thread Size = 3/8"-16 UNC 2B
    Height = 3/4" (0.75")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 21.46 oz. (608.5 g)
Pull Force: 396.4 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-H style is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
