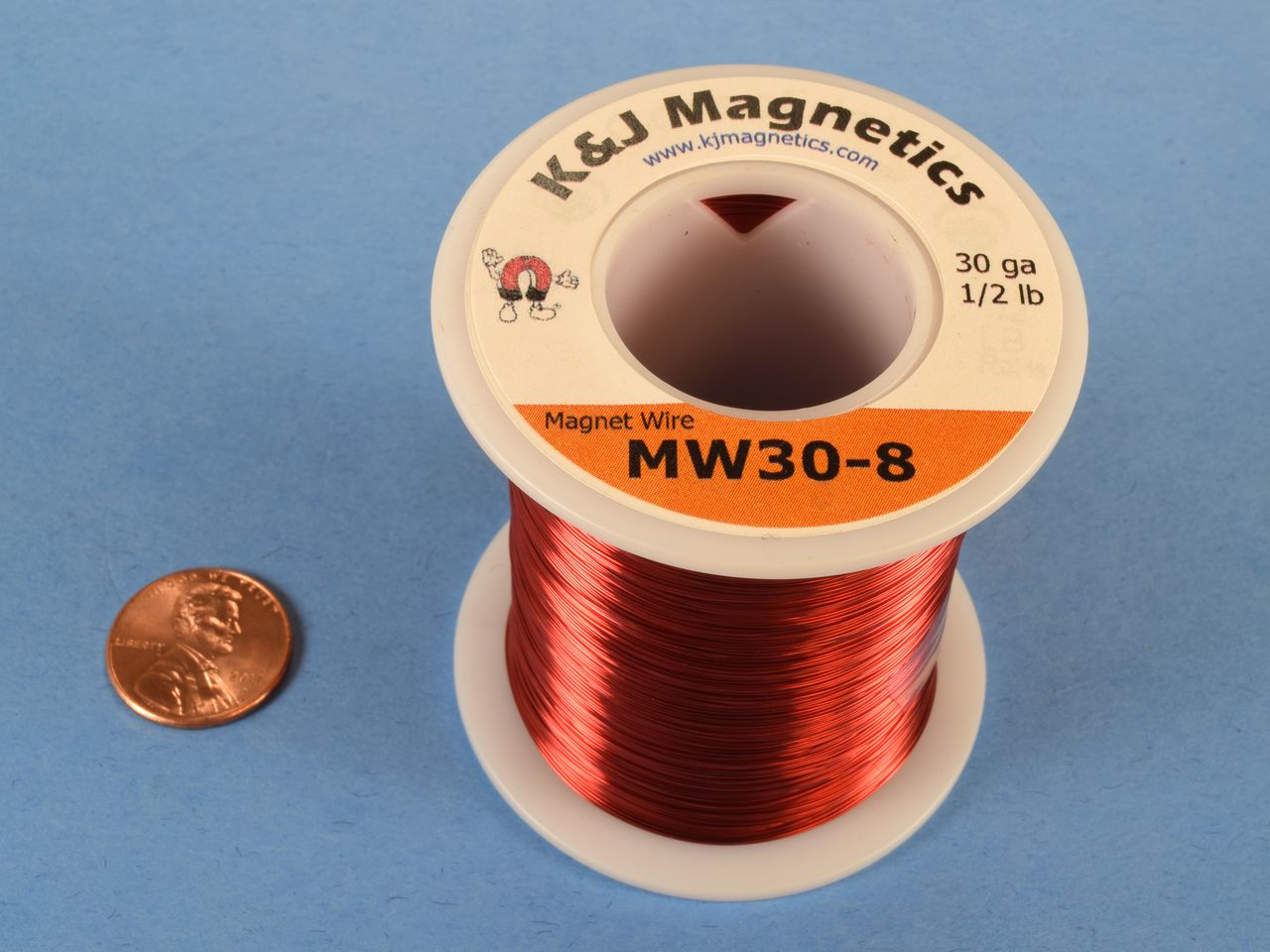

MW30-8 - Magnet Wire

30 Gauge Magnet Wire - 1/2 lb (~1600 ft)

• Solid copper conductor
• Plain Enamel Insulation - Polyurethane / Polyamide (Nylon)
• Wire Diameter: 0.0109 in (0.2769mm)
• Temperature Range: -22ºF (-30ºC) to 311ºF (155ºC)
• Solderable: 680°F (360°C)
• MIL JW-1177/42, MW 80-C, Class 155
• RoHS Compliant

Magnet wire is copper wire coated with a very thin layer of insulation (it is not a magnet). It is used for various applications but is mostly used for constructing windings in transformers, inductors, motors, speakers, electromagnets, and much more! This is also available in a 1/4 lb spool, MW30-4.
