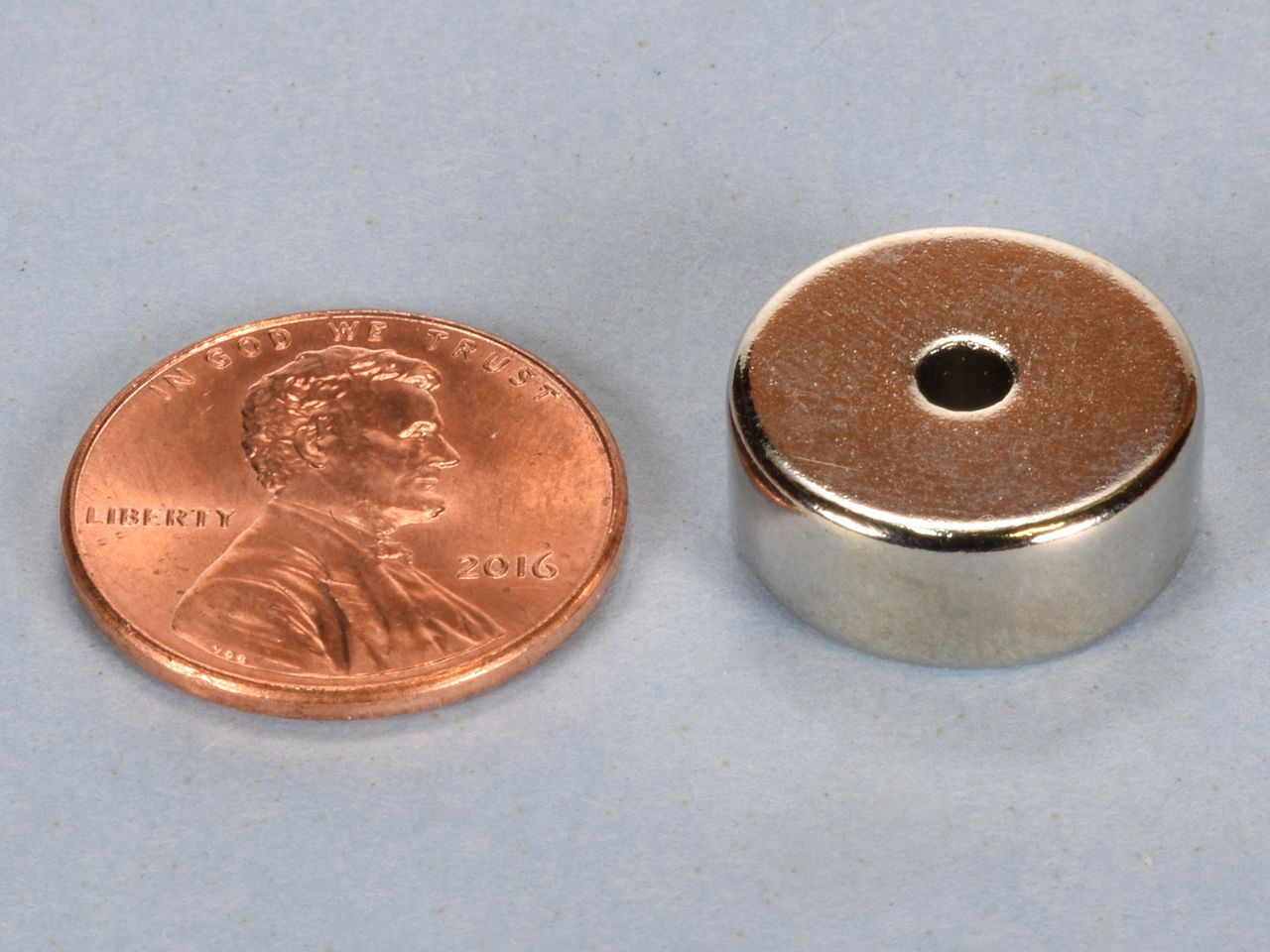

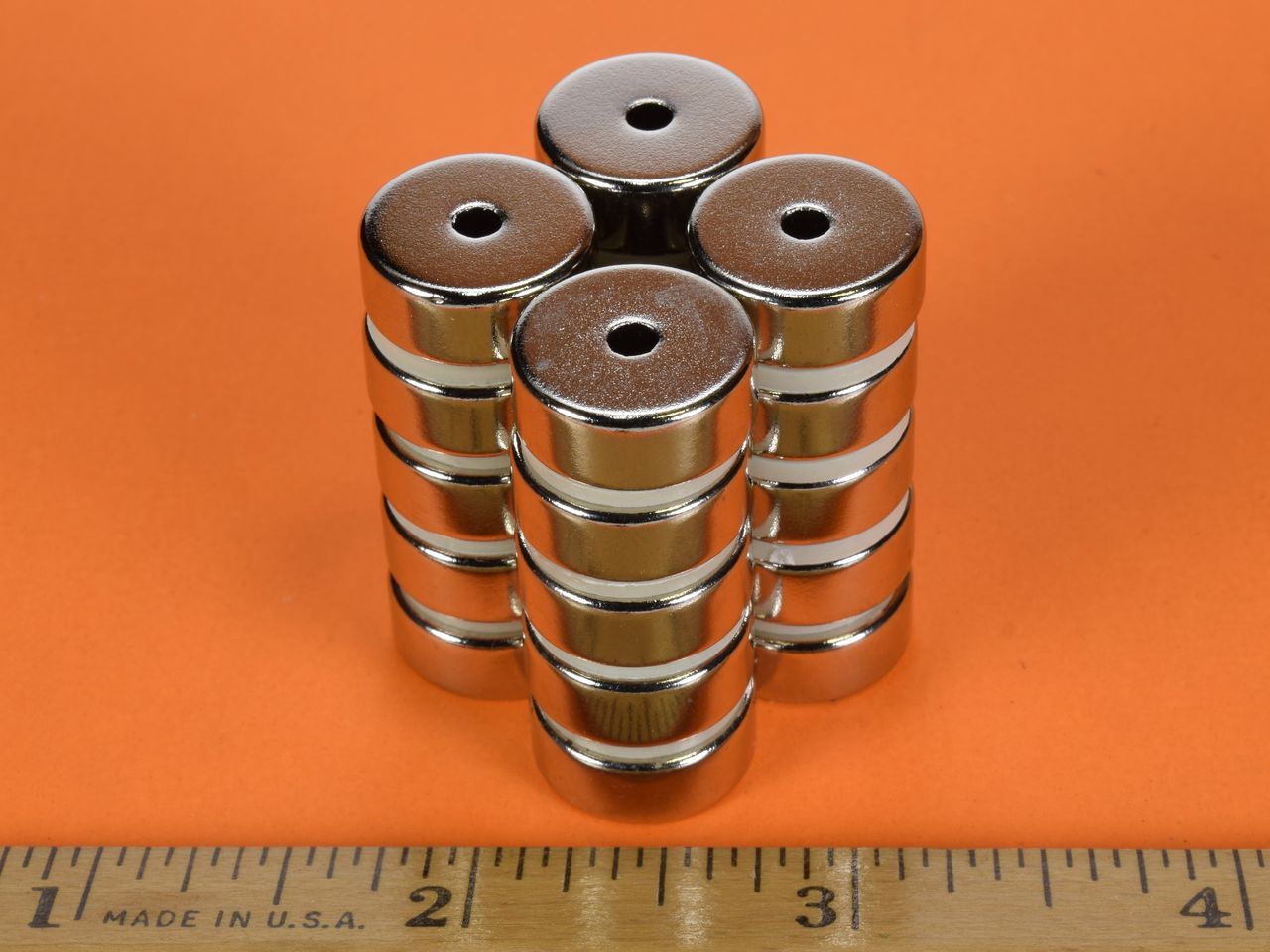

RA24 - Neodymium Ring Magnet

• Dimensions: 5/8" od x 1/8" id x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.319 oz. (9.05 g)
• Pull Force, Case 1: 14.85 lbs
• Pull Force, Case 2: 25.37 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe


The RA24 is a strong and versatile ring magnet.  Perfect for sinage, displays, woodworking and more.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.
