- Dimensions: 3/4" od x 1/8" thick with countersunk hole for #8 screw
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.424 oz. (12.02 g) (per pair)
- Pull Force, Case 1: 10.42 lbs
- Pull Force, Case 2: 35.10 lbs
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe

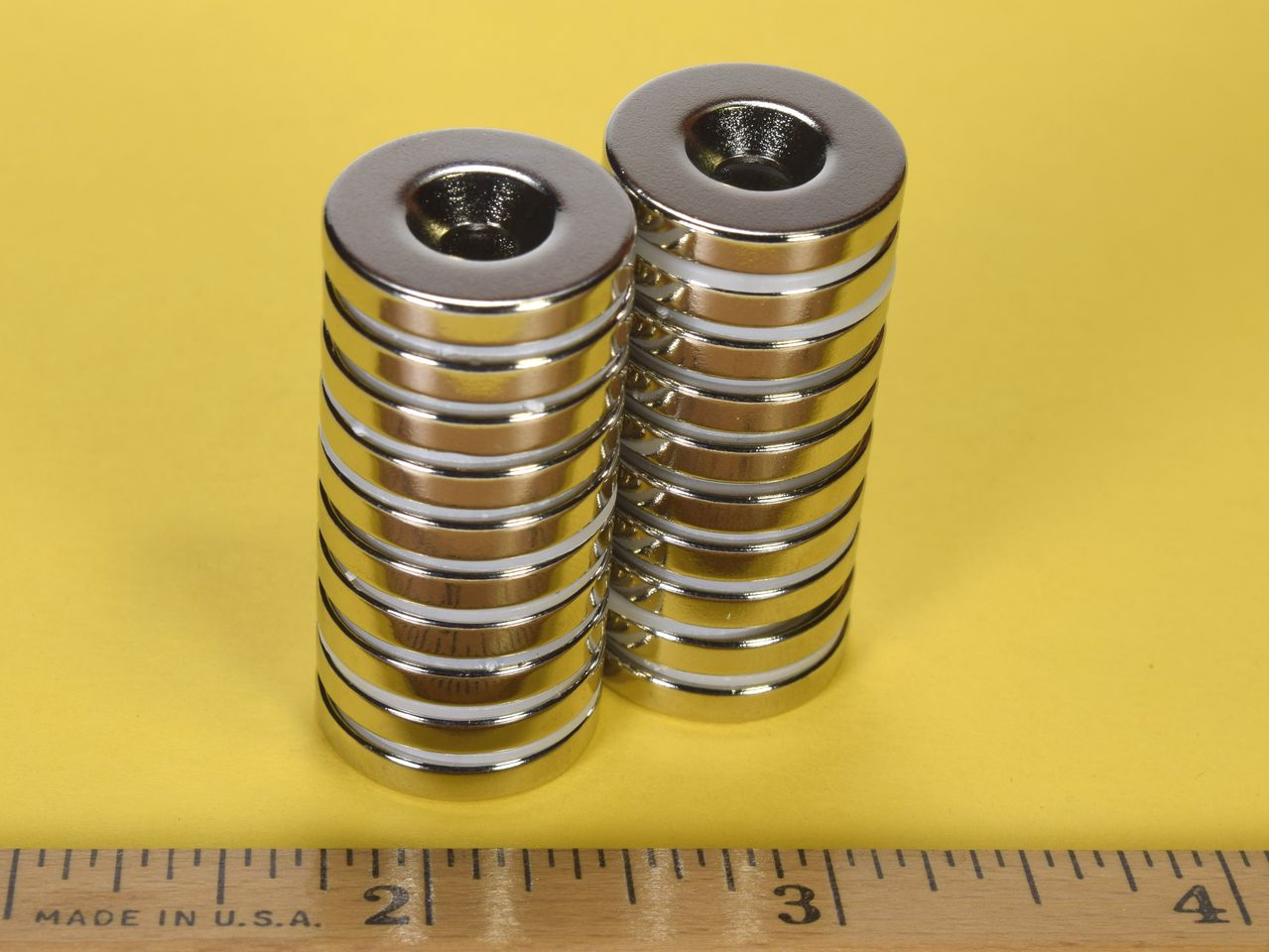

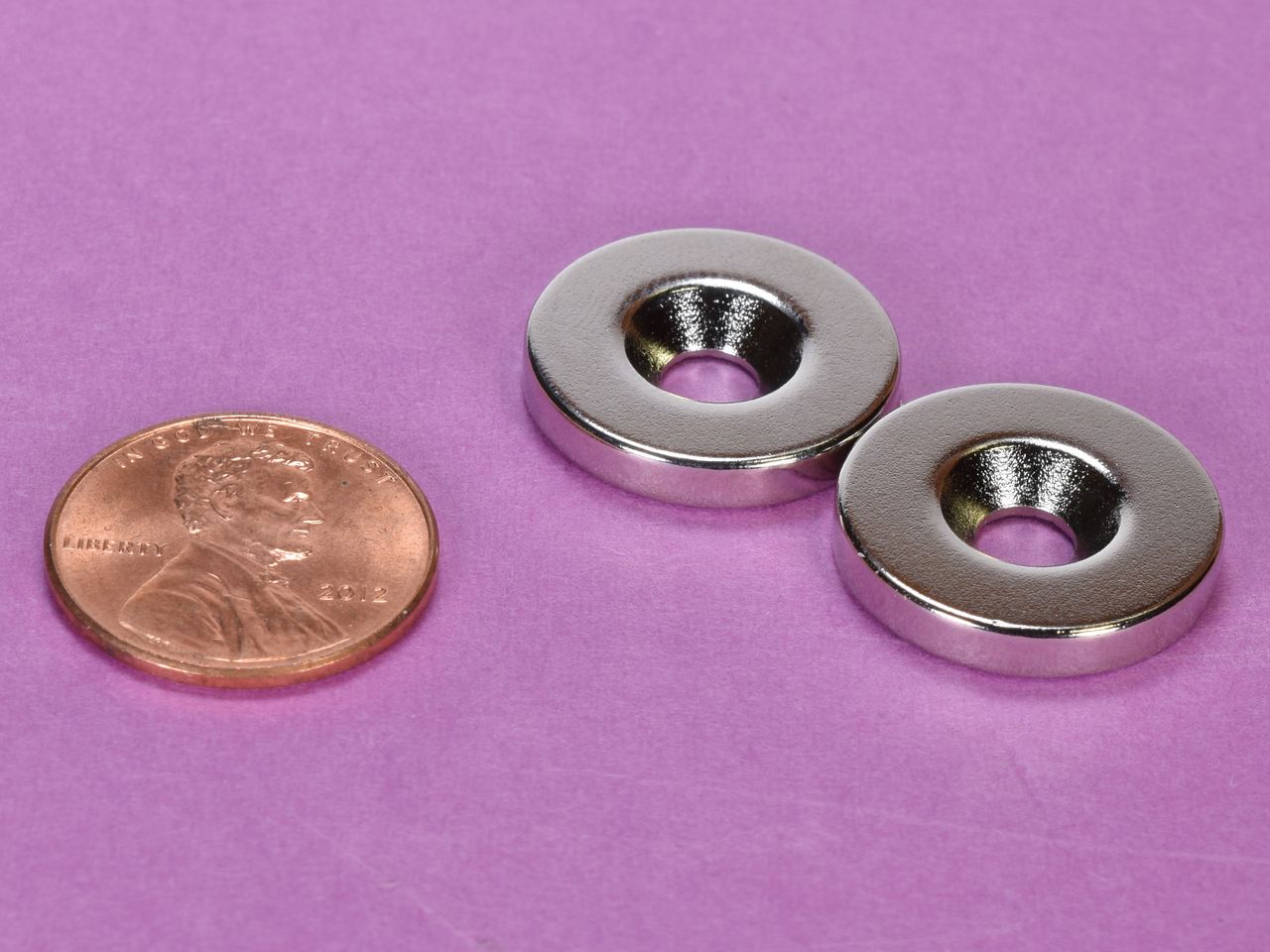

Strong countersunk ring magnets sized specifically for #8 flat-head screws.
These rings are sold by the pair. One will have the north pole on the side with the large end of the hole and one will have the south pole on that side, so they will attract each other when they are screwed in.
These countersunk rings can be used for a wide range of applications including door closures and tool hangers.
