> RZ0Y0X0 - Neodymium Ring Magnet

RZ0Y0X0 - Neodymium Ring Magnet

$100.40

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$100.40	1
$98.17	2	2%
$95.94	3-4	4%
$93.71	5-9	7%
$91.48	10-14	9%
$89.24	15-19	11%
$87.01	20-24	13%
$84.78	25-49	16%
$82.55	50-99	18%
$80.32	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3" od x 2" id x 1" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 17.0 oz. (483 g)
Pull Force, Case 1: 253.3 lbs
Pull Force, Case 2: 253.3 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

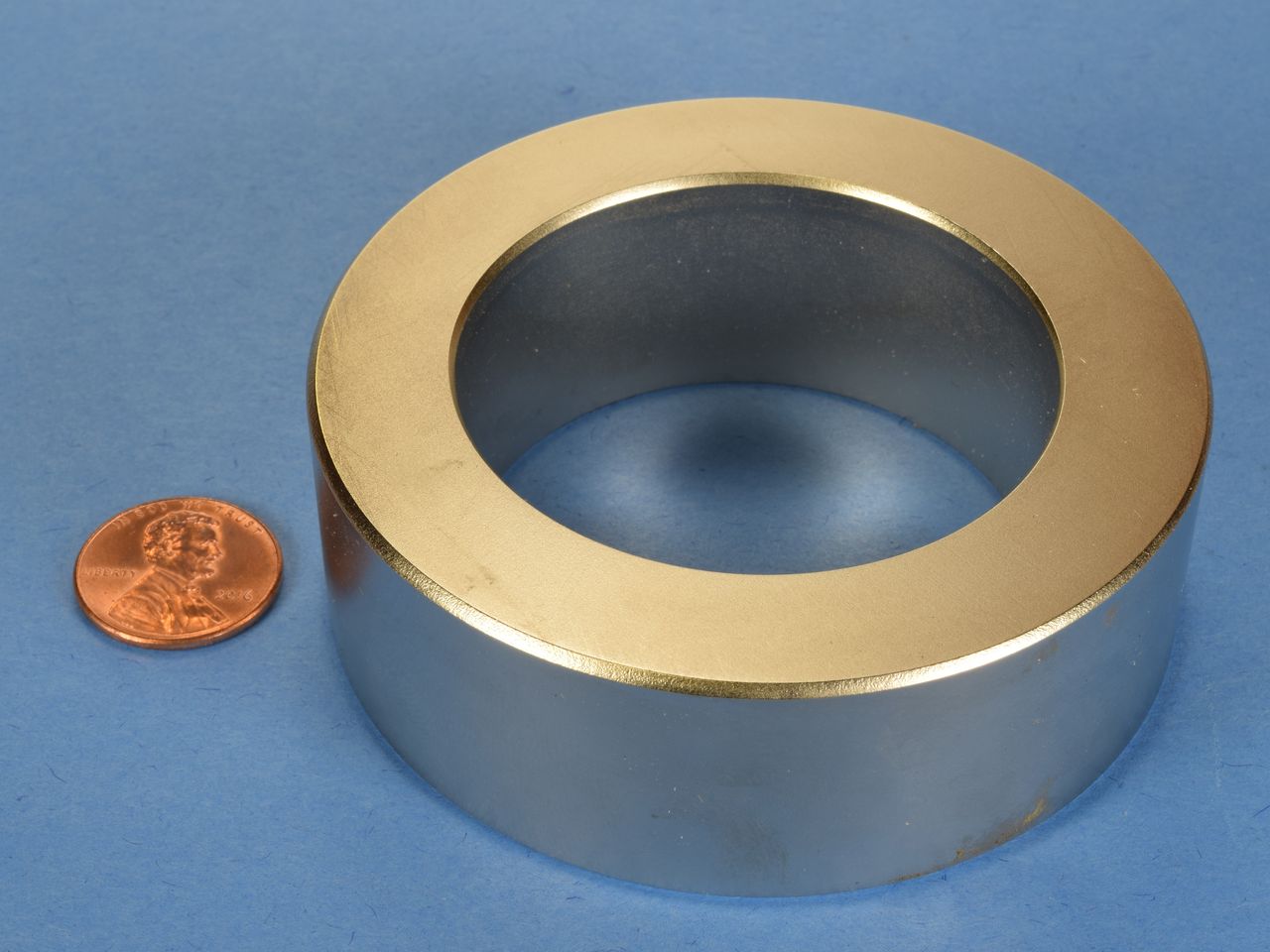

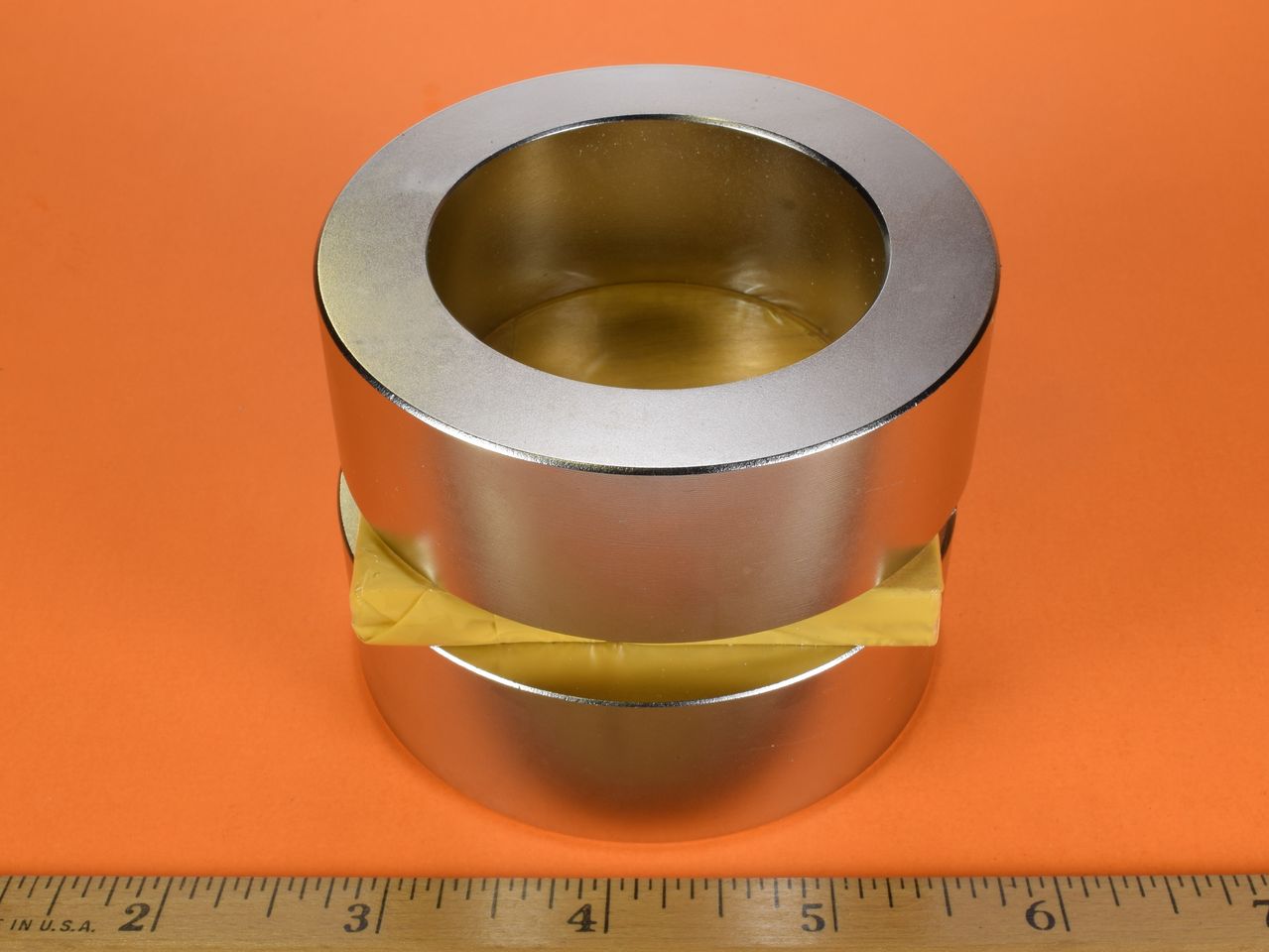

These large rings are very strong and good for a variety of applications and experiments. They must be handled with care as they will pinch fingers and probably break if they are allowed to slam together. These are currently the largest rings that we stock.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
