S8 - Neodymium Sphere Magnet

$2.61

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.61	1-4
$2.55	5-9	2%
$2.49	10-24	5%
$2.44	25-49	7%
$2.38	50-99	9%
$2.32	100-249	11%
$2.26	250-499	13%
$2.21	500-999	15%
$2.15	1000-2499	18%
$2.09	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 1/2" diameter
Tolerances: ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 0.284 oz (8.05 g)
Pull Force, Case 1: 6.53 lbs
Pull Force, Case 2: 7.79 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

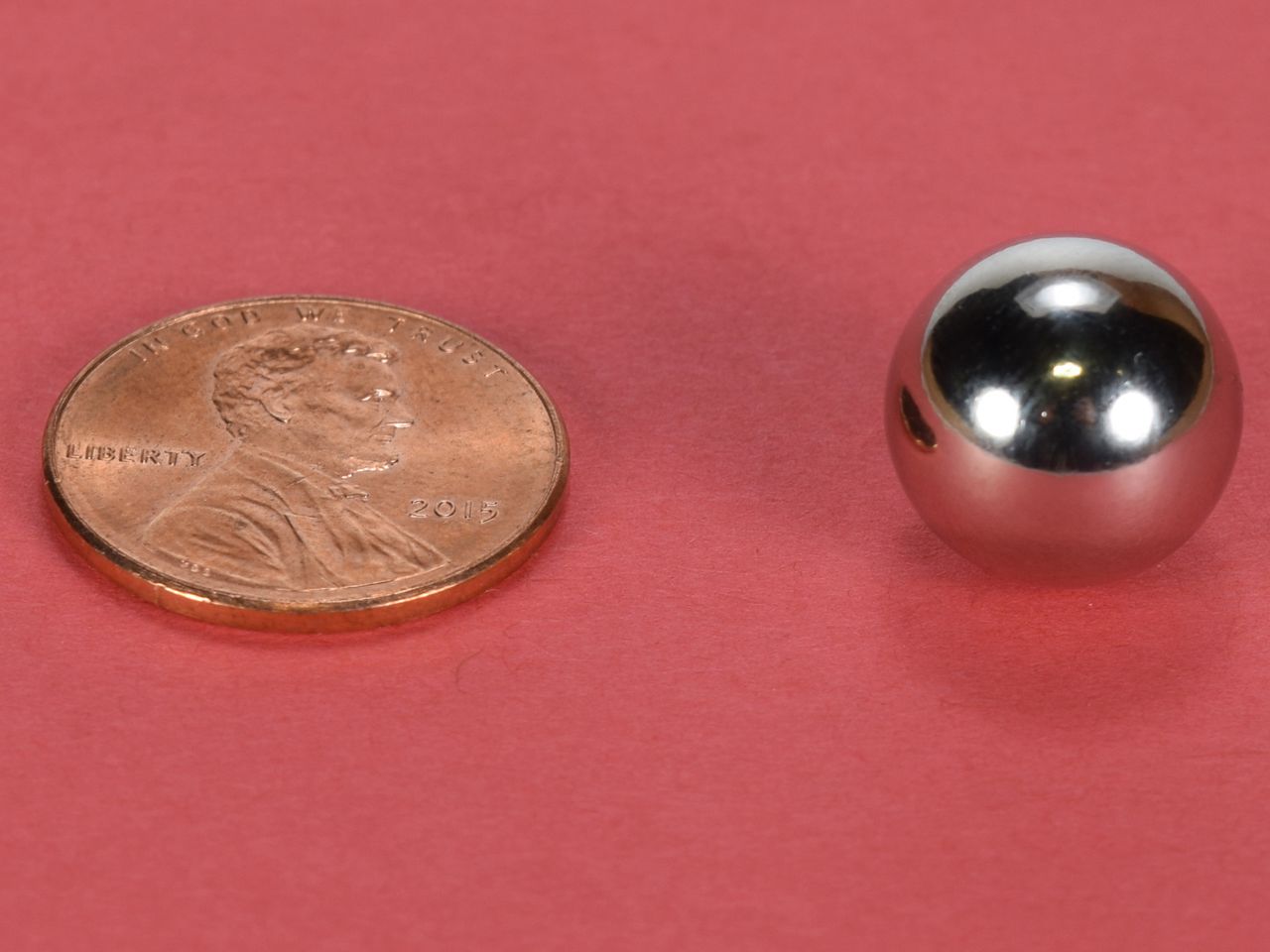

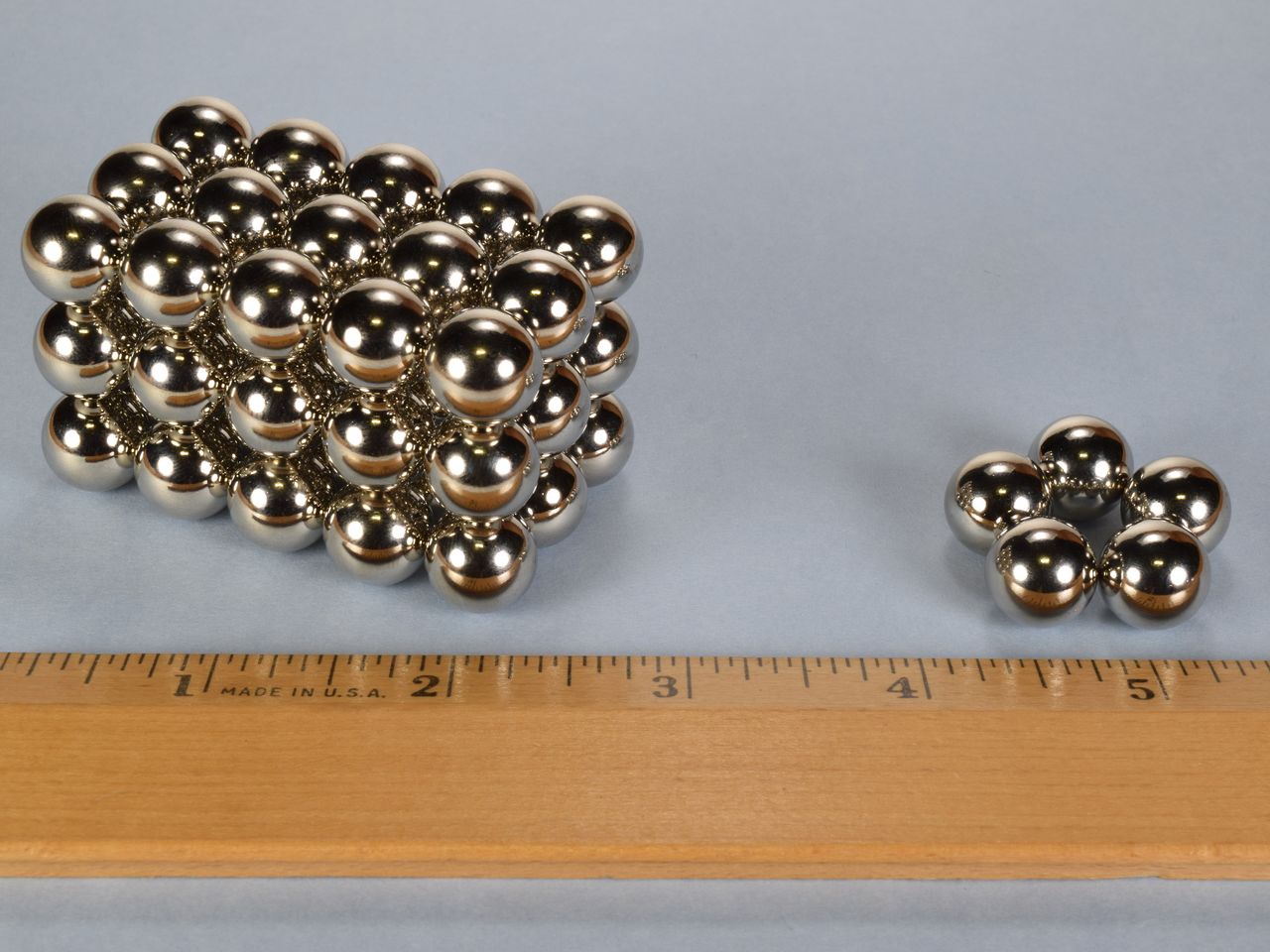

These sphere-shaped magnets are 1/2" in diameter. They are quite a bit stronger than our 1/4" spheres and can pinch.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
