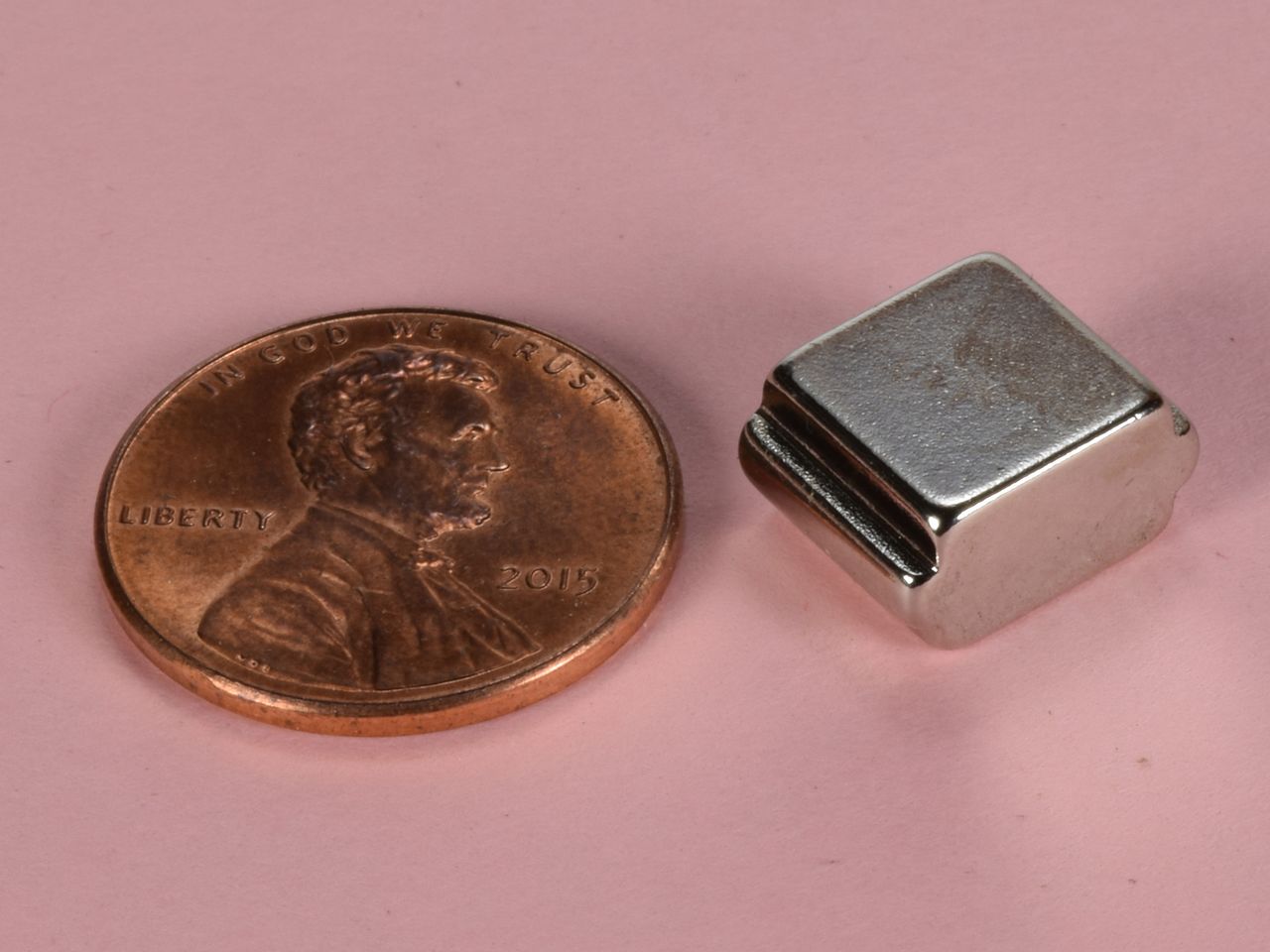

SB664-OUT - Neodymium Stepped Block Magnet

• Dimensions: 3/8" length x 3/8" width x 1/4" thick , with step OUT
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.167 oz. (4.73 g)
• Pull Force, Case 1: 9.20 lbs
• Pull Force, Case 2: 12.94 lbs
• Surface Field: 4838 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

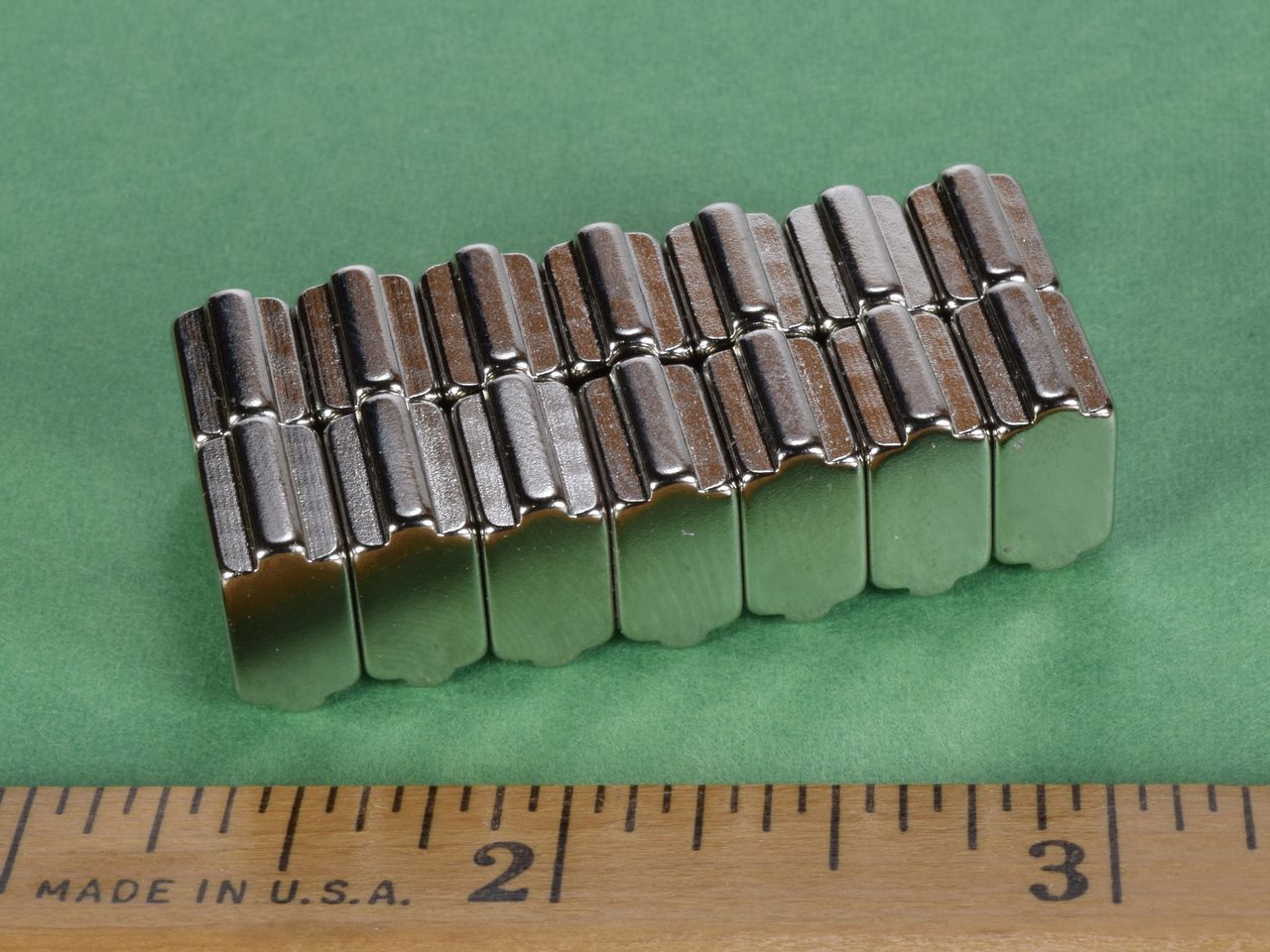

These stepped block magnets combine great holding power with outset steps on two sides.  This often asked-for feature enables the use of many methods of securing the magnet in your assembly.  For those trying to avoid the use of adhesives, this magnet is the answer.
