SW-S - Neodymium Sewing Magnets

• Dimensions: 1/2" dia. x 0.075" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N38
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.129 oz. (3.64 g) per pair
• Pull Force, Case 1: 8.70 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 12,600 Gauss
• BHmax: 38 MGOe

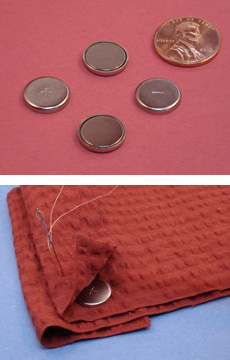

These great Sewing Magnets are designed especially for sewing into fabrics.  Great for purses, clasps, and many other magnetic attachments for clothing and other textiles.  These magnets also work great as magnetic clasps in binders, folders and other printed materials.  Sewing magnets are sold in matched pairs.  An order quantity of 1 gets you two magnets.

For items that aren't frequently washed, such as purses, wool or leather items, the strength of these magnets is slightly better without a plastic cover.  For items that are frequently washed, our SWP-S is the same magnet with a protective cover.  Machine wash cold, dry on low heat.

Choose your size based on the thickness of all material layers between the magnets in your application.  Aim for a pull force between 1 and 3 pounds for a nice feel, though the desired strength does depend on the application.  This magnet is great for a total material thickness of 0.02" to 1/16".

The table below shows the expected strength when used with a variety of materials.  The Pull Force assumes the magnets are separated by two layers of the fabric.

Material	Fabric thickness, single layer [in]	Pull Force [lb]	Comments
Cotton T-shirt	0.012	3.00	Strong pull
Denim/jeans	0.028	1.27	Good pull
Canvas	0.04	0.73	Light pull
Leather, 1/16" thick	0.0625	0.30	Gentle pull
Leather, 1/8" thick	0.125	0.04	Weak pull

	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
