SY0 - Neodymium Sphere Magnet

$102.96

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$102.96	1
$100.67	2	2%
$98.38	3-4	4%
$96.10	5-9	7%
$93.81	10-14	9%
$91.52	15-19	11%
$89.23	20-24	13%
$86.95	25-49	16%
$84.66	50-99	18%
$82.37	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

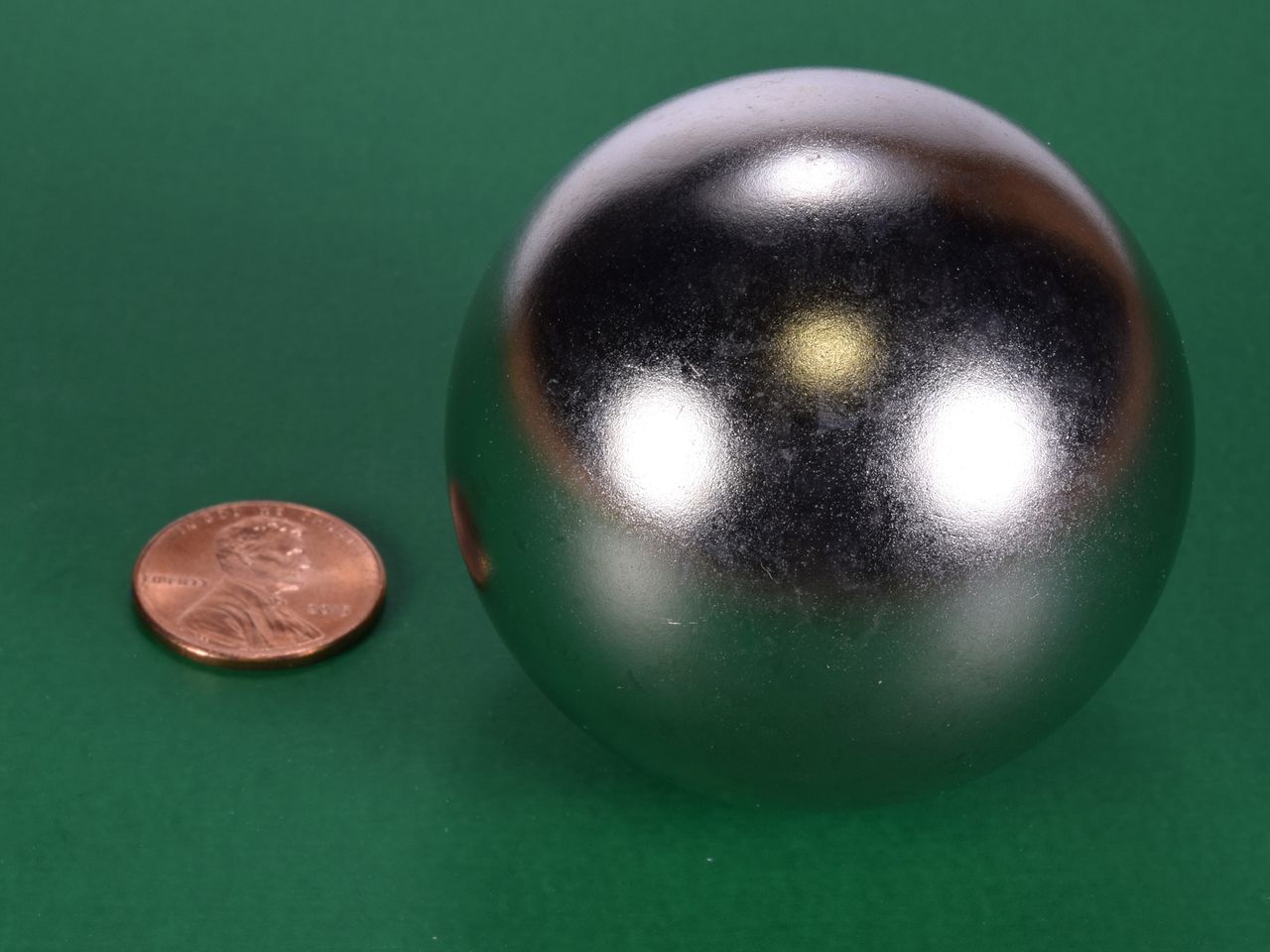

Dimensions: 2" diameter
Tolerances: ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
Weight: 18.16 oz (515 g)
Pull Force, Case 1: 103.3 lbs
Pull Force, Case 2: 114.0 lbs
Surface Field: 8815 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

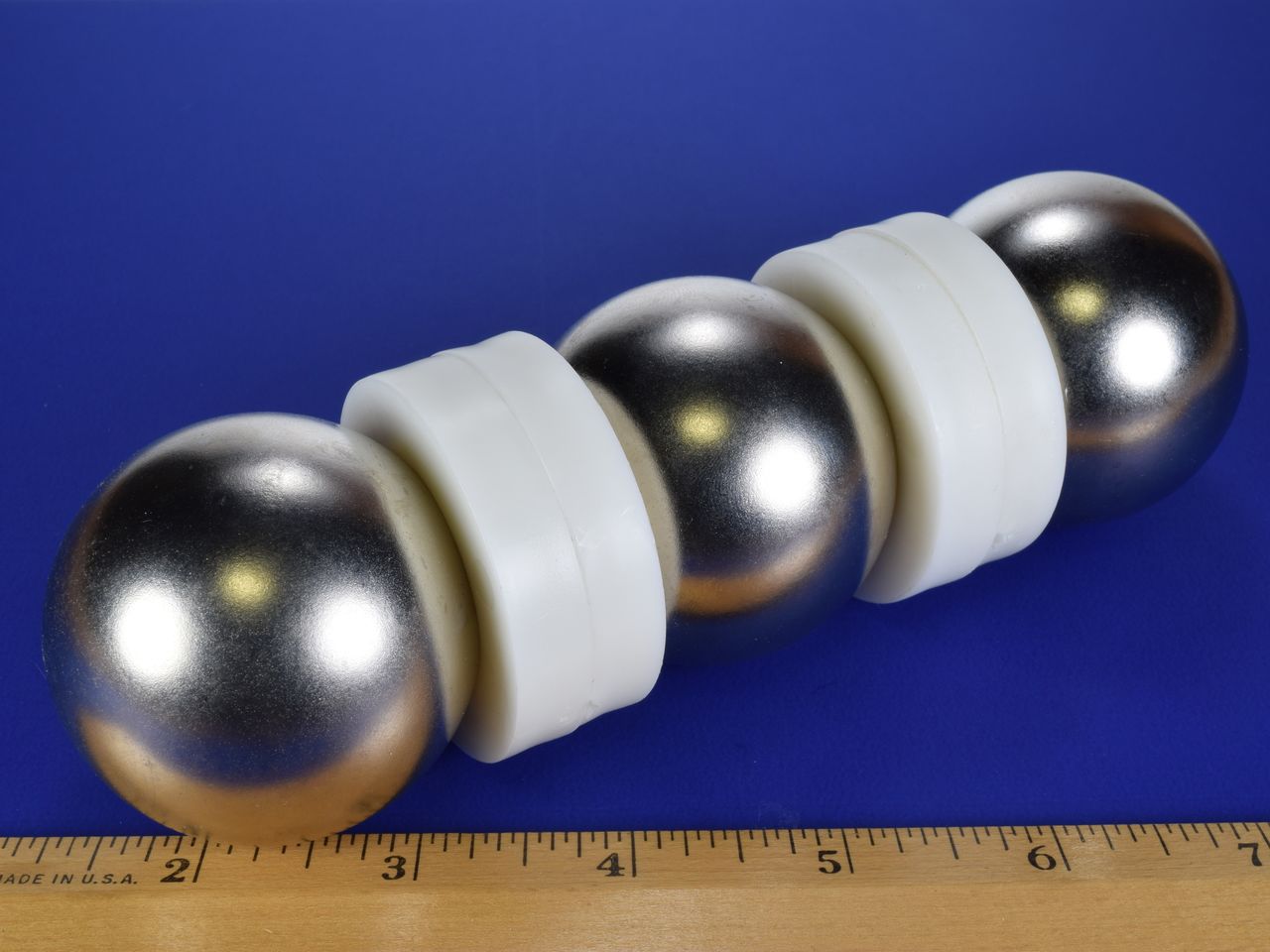

These 2" sphere magnets are crazy strong. The magnetic fields of sphere magnets are concentrated more at the poles than disc or block magnets. Please use extreme caution as these large spheres are amazingly powerful and can be quite dangerous if they are handled improperly. You must read and understand our Neodymium Magnet Safety Page before ordering these magnets. You must also agree to our Terms and Conditions prior to purchasing. THESE ARE DANGEROUS!

GROUND SHIPPING ONLYon this item.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
