ZD1 - Neodymium Surplus Disc Magnet

zd1-neodymium-surplus-disc-magnet--thumbnail-2

$14.00

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$14.00	1-4
$13.00	5-99	7%
$12.00	100-249	14%
Email us for even bigger discounts on higher order quantities

Description

Dimensions: 6mm dia. x 1.5mm thick
Tolerances: ±0.1mm x ±0.1mm
Material: NdFeB, Grade N35
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0111 oz. (0.316 g)
Pull Force, Case 1: 0.86 lbs
Pull Force, Case 2: 2.67 lbs
Surface Field: 2706 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 12,100 Gauss
BHmax: 35 MGOe

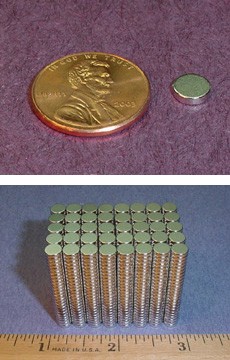

Approximately 1/4" x 1/16" thick. Great if you need a bunch of strong magnets for a low price.

These magnets are sold in packs of 100. Order a quantity of 1 and get 100 magnets. Order a quantity of 2 and get 200 magnets. Order a quantity of 3 and get 300...
