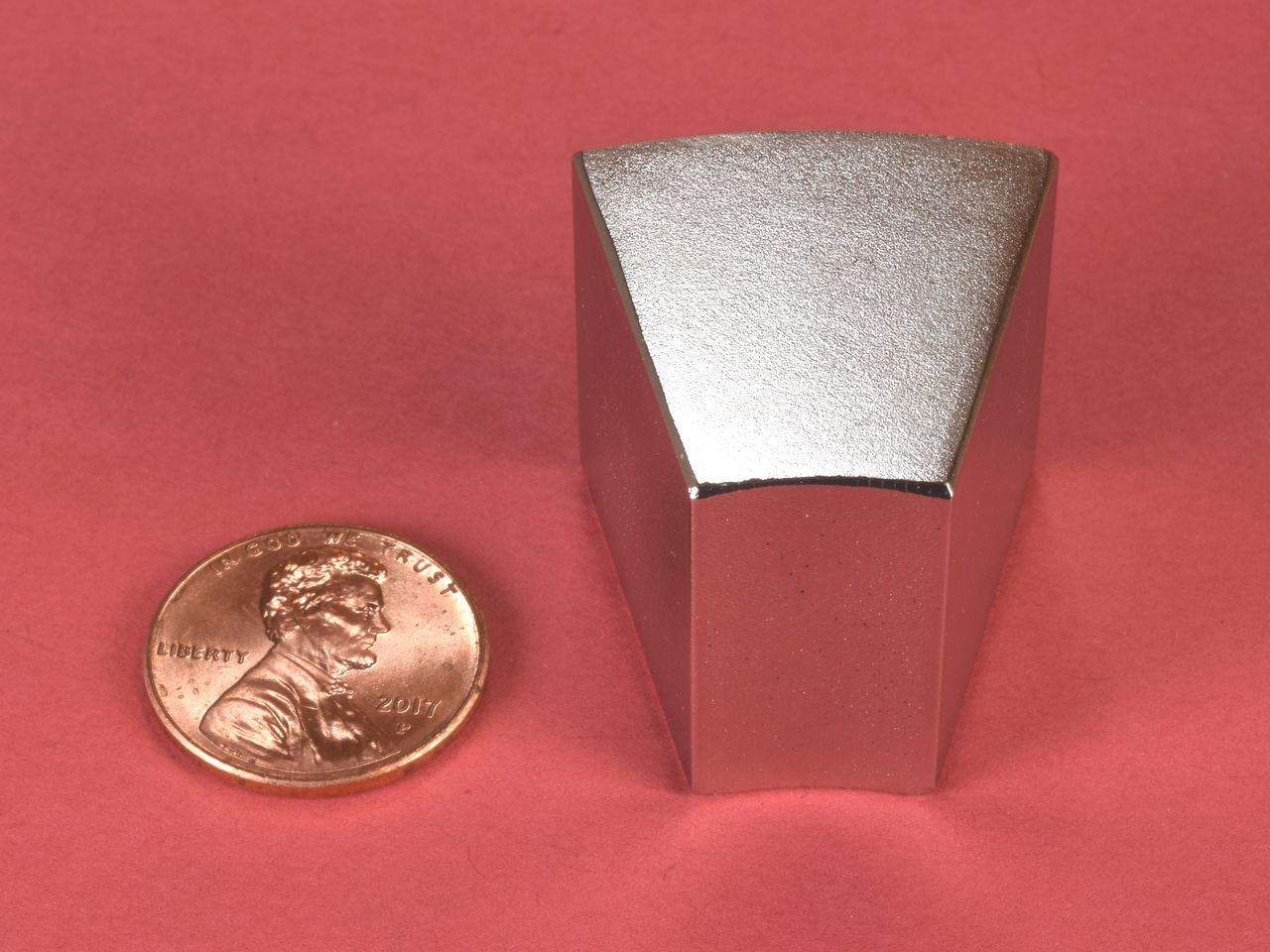

AY0X030-T - Neodymium Arc Segment Magnet

ay0x030-t-neodymium-arc-segment-magnet--thumbnail-2

$36.23

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$36.23	1
$35.42	2	2%
$34.62	3-4	4%
$33.81	5-6	7%
$33.01	7-9	9%
$32.20	10-24	11%
$31.40	25-49	13%
$30.59	50-99	16%
$29.79	100-249	18%
$28.98	250-499	20%
Email us for even bigger discounts on higher order quantities

Description

Dimensions: 2" o.r. x 1" i.r. x 1" x 30º
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Magnetized thru thickness
Weight: 3.44 oz. (97.5 g)
Pull Force: 61.0 lbs
Surface Field: 6025 Gauss
Brmax: 14,800 Gauss
BHmax: 52 MGOe

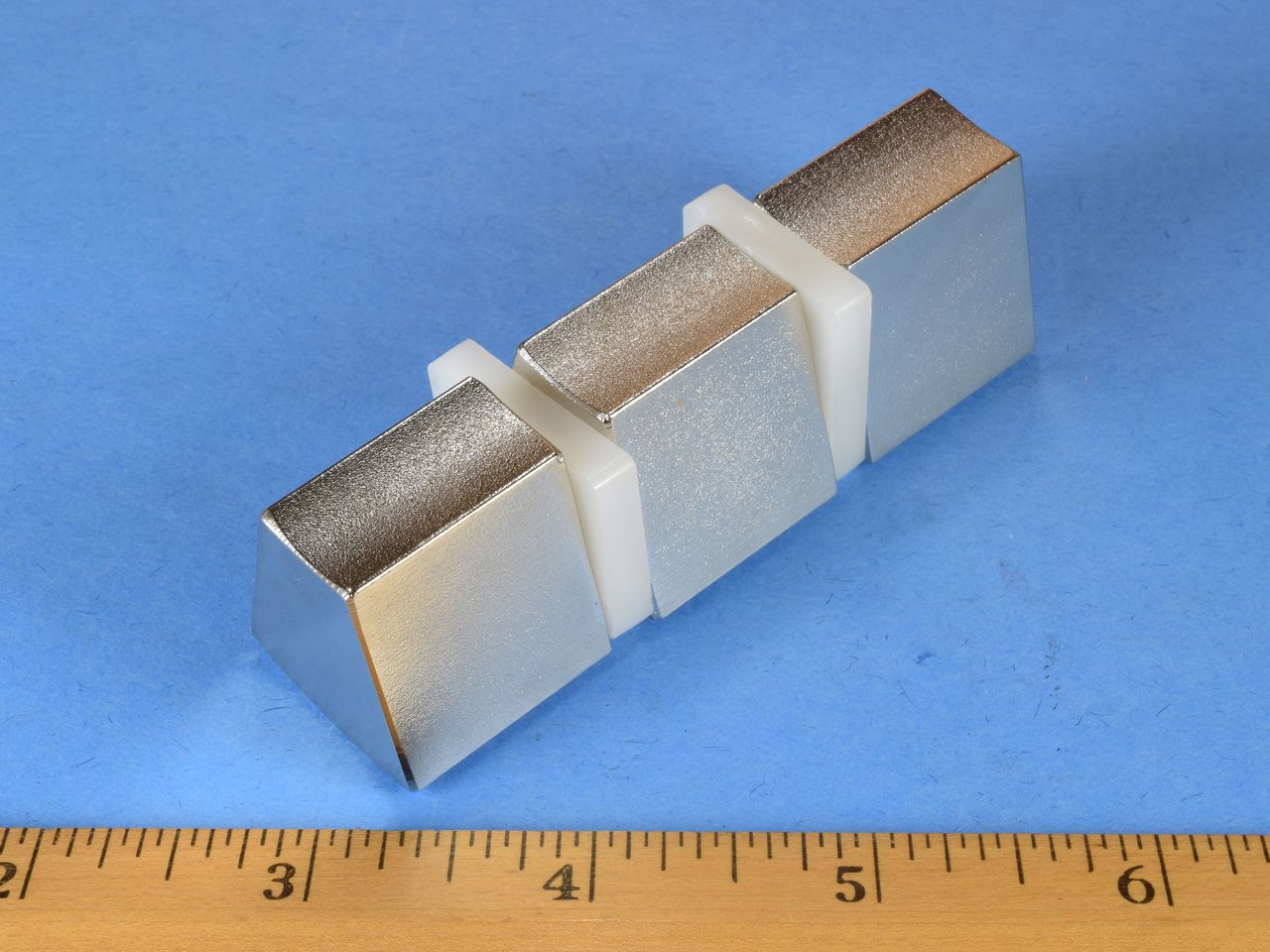

This arc segment is the same size and shape as our AY0X030-N, AY0X030-S and AY0X030-C, but this one is magnetized through the thickness. See our Magnetization Direction illustrations for a visual explanation of magnetization directions in arc segment magnets. 12 of these could be put together to form a 4" od x 2" id ring, magnetized thru the thickness with alternating poles facing up.
