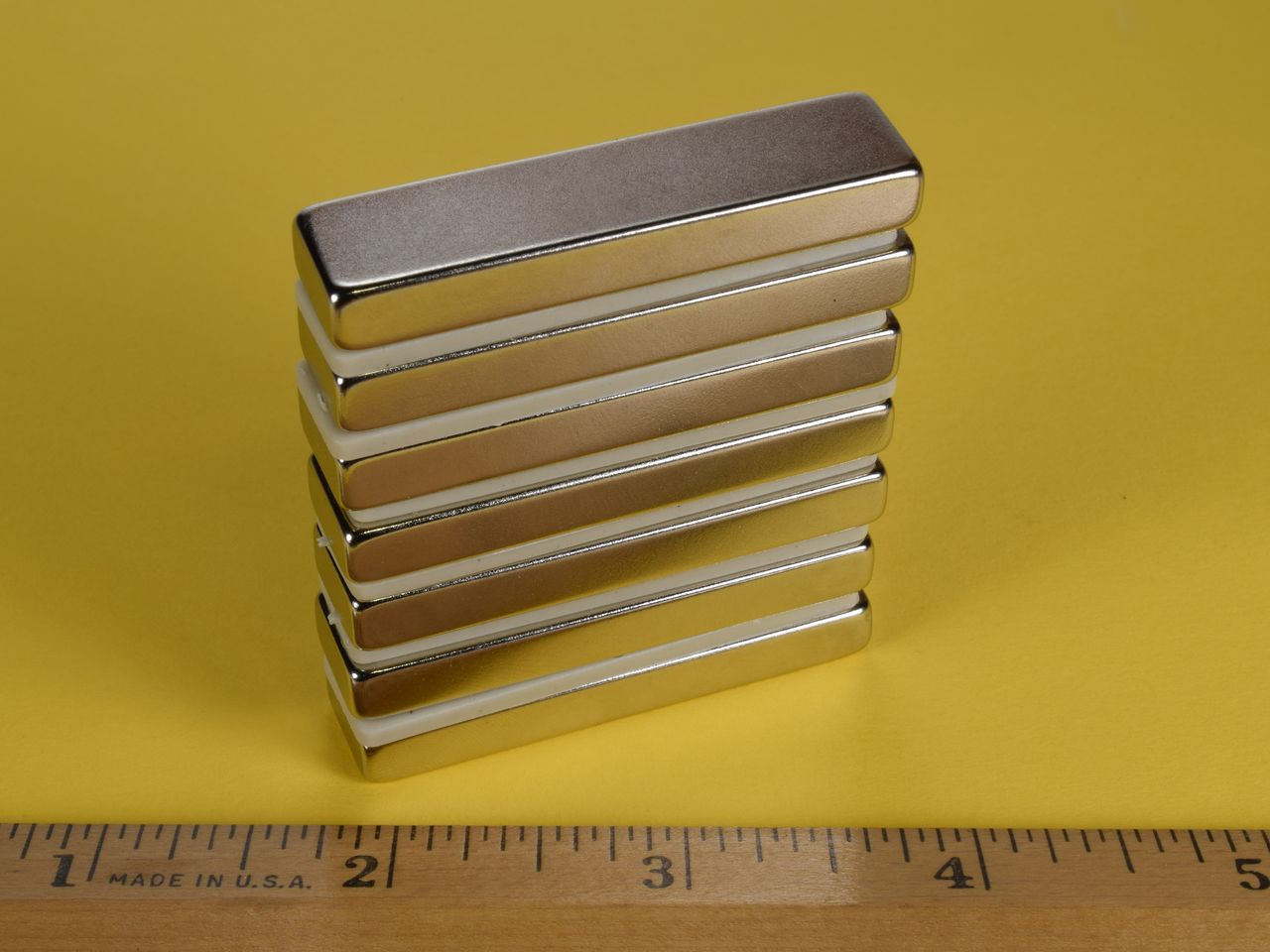

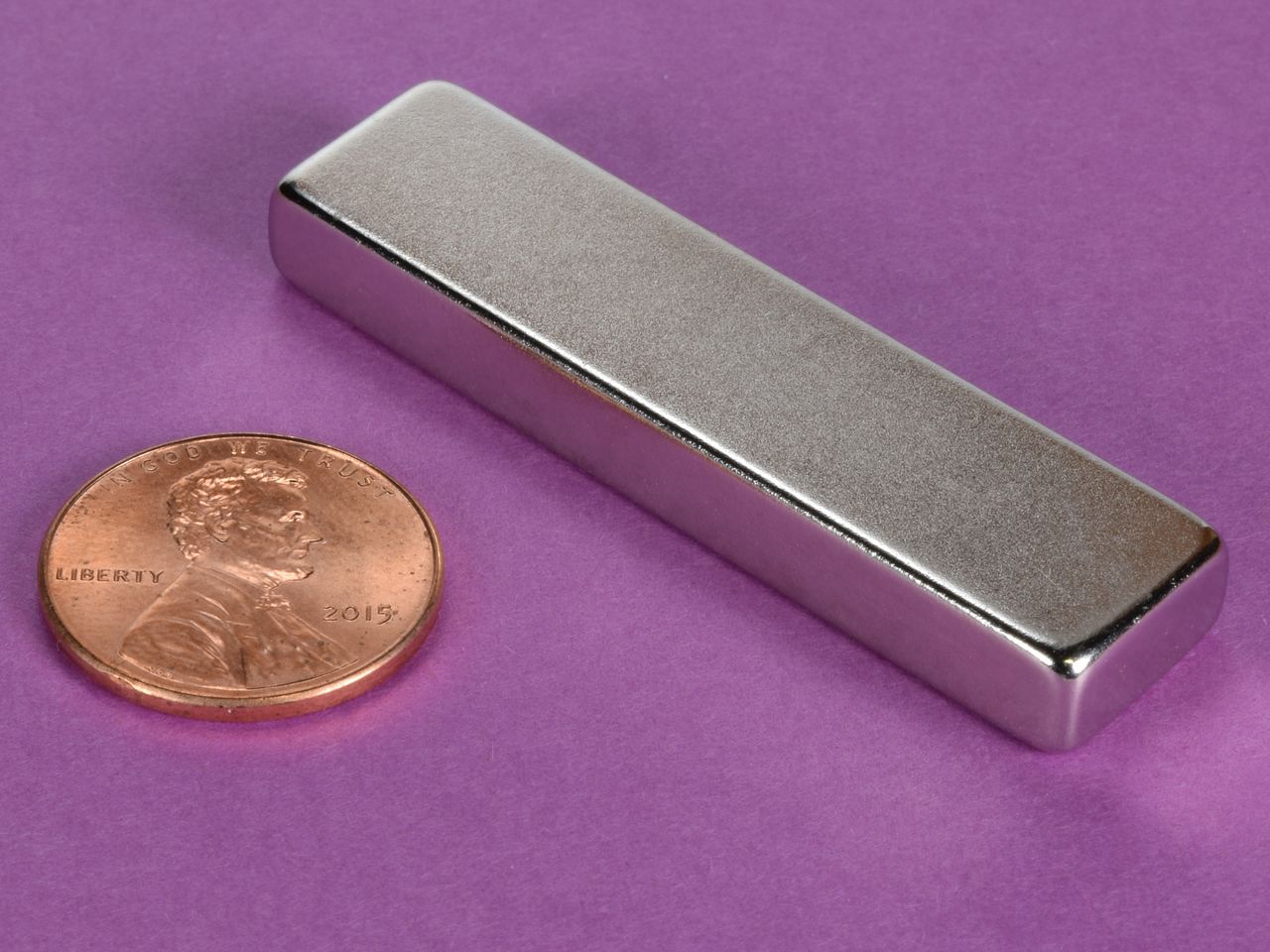

BY084-N52 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 2" x 1/2" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.08 oz. (30.73 g)
Pull Force, Case 1: 37.17 lbs
Pull Force, Case 2: 90.81 lbs
Surface Field: 3839 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These long blocks are great for a variety of heavier holding applications. The BY084-N52 is a very powerful and sturdy block magnet.

This size is also available with 2 countersunk holes as part number BY084DCS.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $9.65

Quantity:

Qty:

Price ea.	Qty
$9.65	1
$9.44	2-4
$9.22	5-9
$9.01	10-24
$8.79	25-49
$8.58	50-99
$8.36	100-249
$8.15	250-499
$7.93	500-999
$7.72	1000-2499
For pricing at higher order quantities, please email us!
