MM-A-75 - Neodymium Countersunk Mounting Magnet

mm-a-75-neodymium-countersunk-mounting-magnet--thumbnail-2

$87.35

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$87.35	1
$85.41	2	2%
$83.47	3-4	4%
$81.53	5-9	7%
$79.59	10-14	9%
$77.64	15-19	11%
$75.70	20-24	13%
$73.76	25-49	16%
$71.82	50-99	18%
$69.88	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

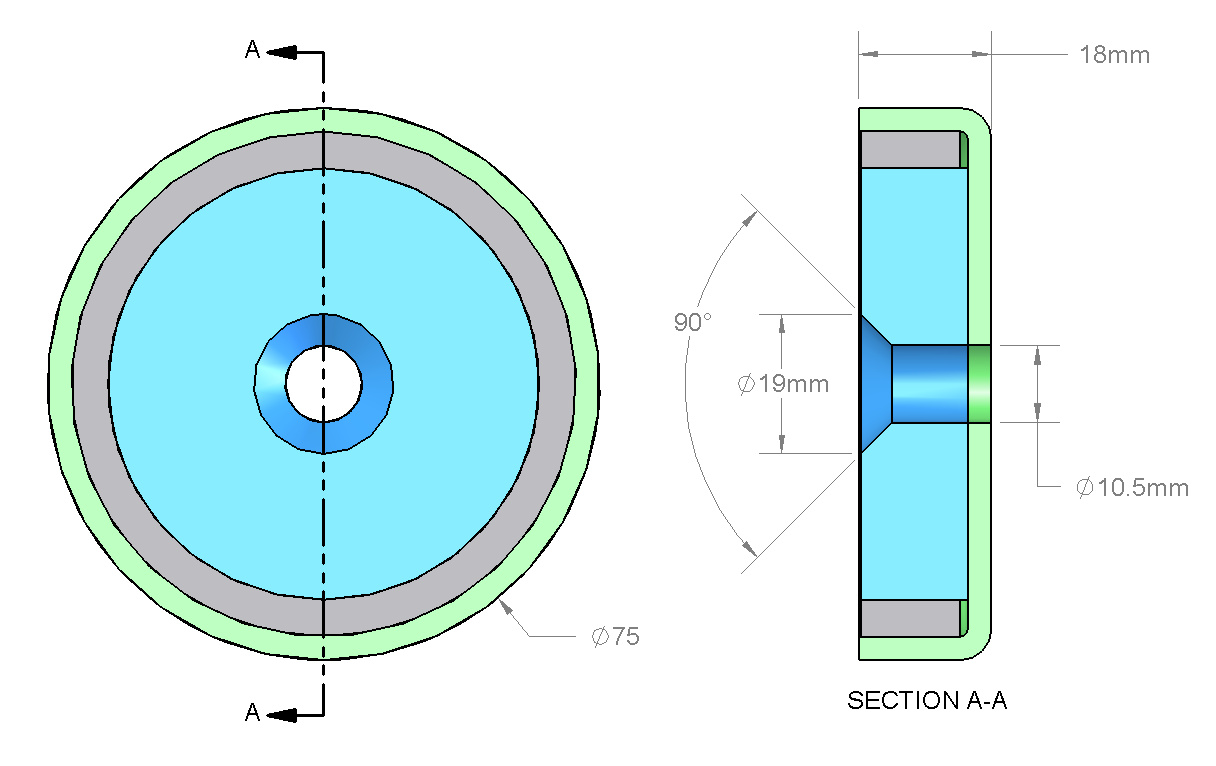

Dimensions:
    D=75mm (2.95")
    d1=10.5mm (0.41") (Sized for M10 screw)
    d2=19mm (0.75") (Tapered countersunk hole)
    h=18mm (0.71")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 17.4 oz. (493 g)
Pull Force: 357 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

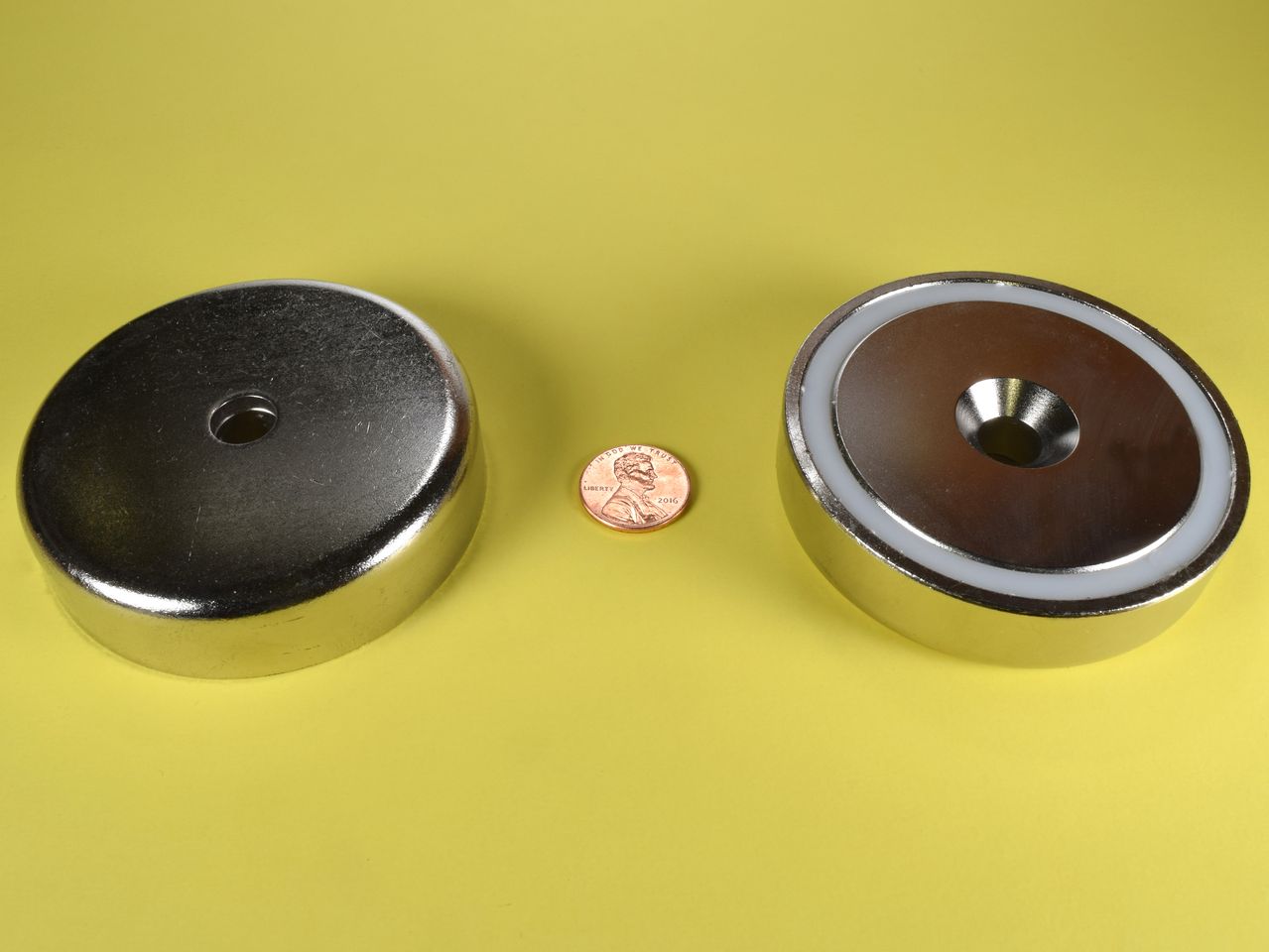

The MM-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
